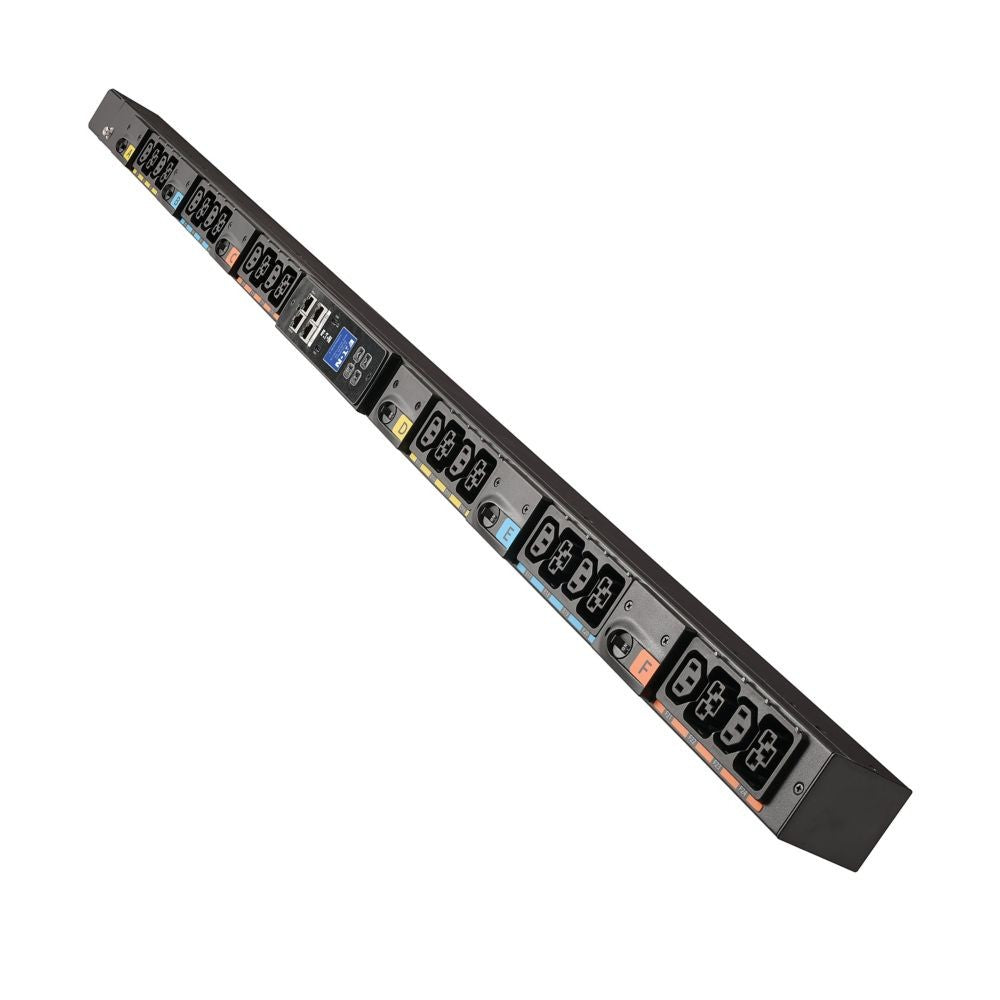

Eaton EVMOGU23A-E – 24-Outlet End-Entry Metered PDU

Product Overview

The Eaton EVMOGU23A-E is a compact, 24-outlet metered rack PDU with end-entry universal input, designed for server rooms and data center racks that don't need the full 42-outlet density of Eaton's larger EVMOGU23X-series units. Supporting 208-415V input and up to 23kW capacity, this 0U vertical PDU brings outlet-level metering to smaller or mixed-equipment racks. AV/IT integrators specifying a metered outlet rack PDU for a rack that needs granular power visibility without a 42-outlet footprint will find this lower-outlet-count model a practical fit.

Product Description

The EVMOGU23A-E (product photo not provided for this listing) is a member of Eaton's ePDU G4 metered-outlet family, sharing the same universal-input electrical platform as the EVMOGU23X and EVMOGU23X-E but configured with a lower outlet count and a shorter 0U vertical form factor — the "A" designation in Eaton's naming convention here corresponds to a 24-outlet variant rather than the 42-outlet "X" configuration, and the "-E" suffix again denotes end-entry input cord routing. The unit accepts universal input across 208-240V/415-240V ranges with current ratings from roughly 15A to 55A depending on cordset (up to 63A peak), and supports output up to 23kW/23kVA (5kVA to 23kVA range) — consistent with the broader EVMOGU23 platform capacity. It provides 24 outlets total: 12 C13 and 12 C39 receptacles, with C39 accepting both C14 and C20 plugs, protected by six 2-pole 20A circuit breakers organized into color-coded load banks for easier load balancing. Outlet-level monitoring is provided through an embedded Gigabit Network Module with SNMP, web UI access, and environmental sensor support, with measurement accuracy of plus/minus 1% for current, voltage, and power. The unit mounts via toolless vertical buttons in a 0U, 32U-rack-height vertical profile, with front or side-facing installation options, making it a flexible choice for racks with varied cable management needs. This shorter, lower-outlet-count PDU suits smaller network racks, remote server rooms, or mixed-use cabinets that don't require the full 42-outlet capacity of the larger EVMOGU23 models.

Key Features

• 24-Outlet Configuration — 12 C13 and 12 C39 receptacles fit smaller racks or mixed-equipment cabinets without excess outlet capacity.
• End-Entry Input Cord — Simplifies cable routing in tight or wall-adjacent cabinet installations.
• Universal Voltage Input — Supports a wide 208-415V range for standardization across regions.
• Outlet-Level Metering — Embedded Gigabit Network Module with SNMP and web UI for per-outlet current, voltage, and power data.
• Color-Coded Load Banks — Six 2-pole 20A breakers grouped for easier phase/load balancing.

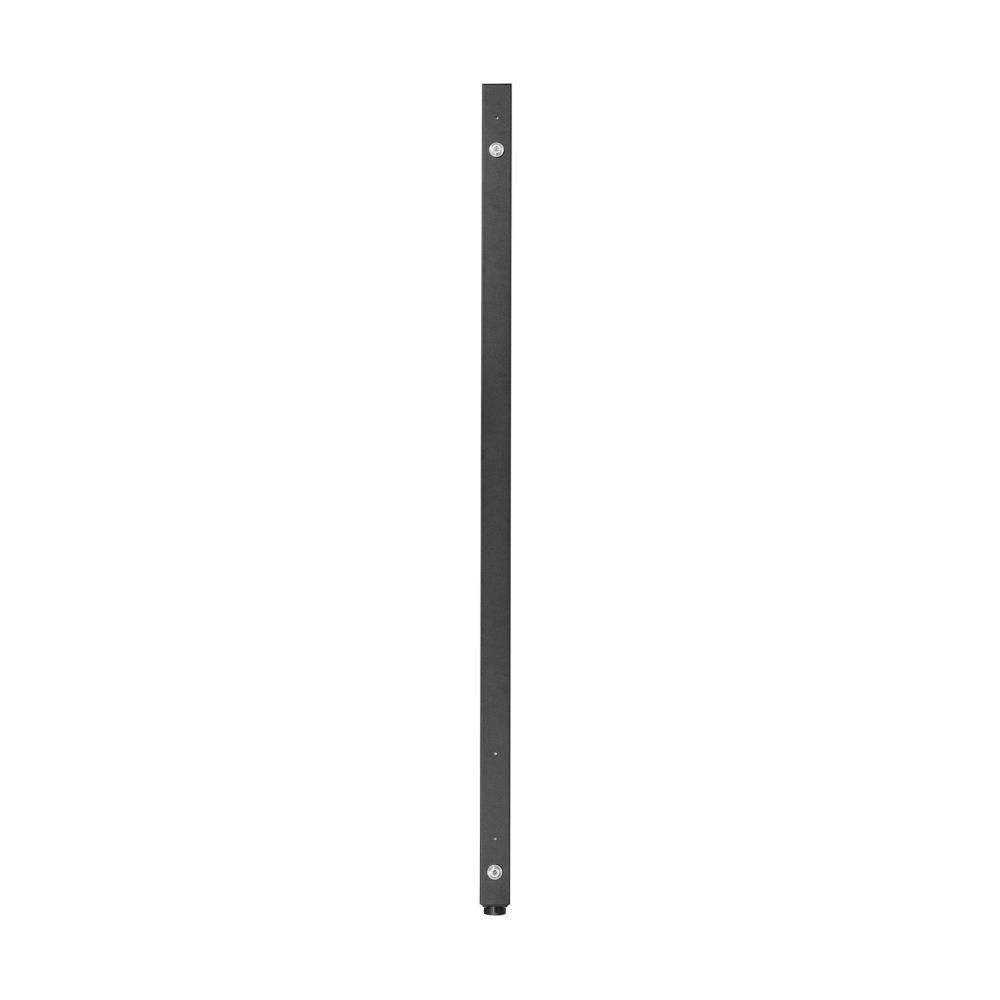

• Toolless Vertical Mounting — 0U profile with front or side-facing installation for flexible rack layouts.
• Environmental Sensor Support — Network module accommodates optional temperature/humidity sensors for rack-level monitoring.
