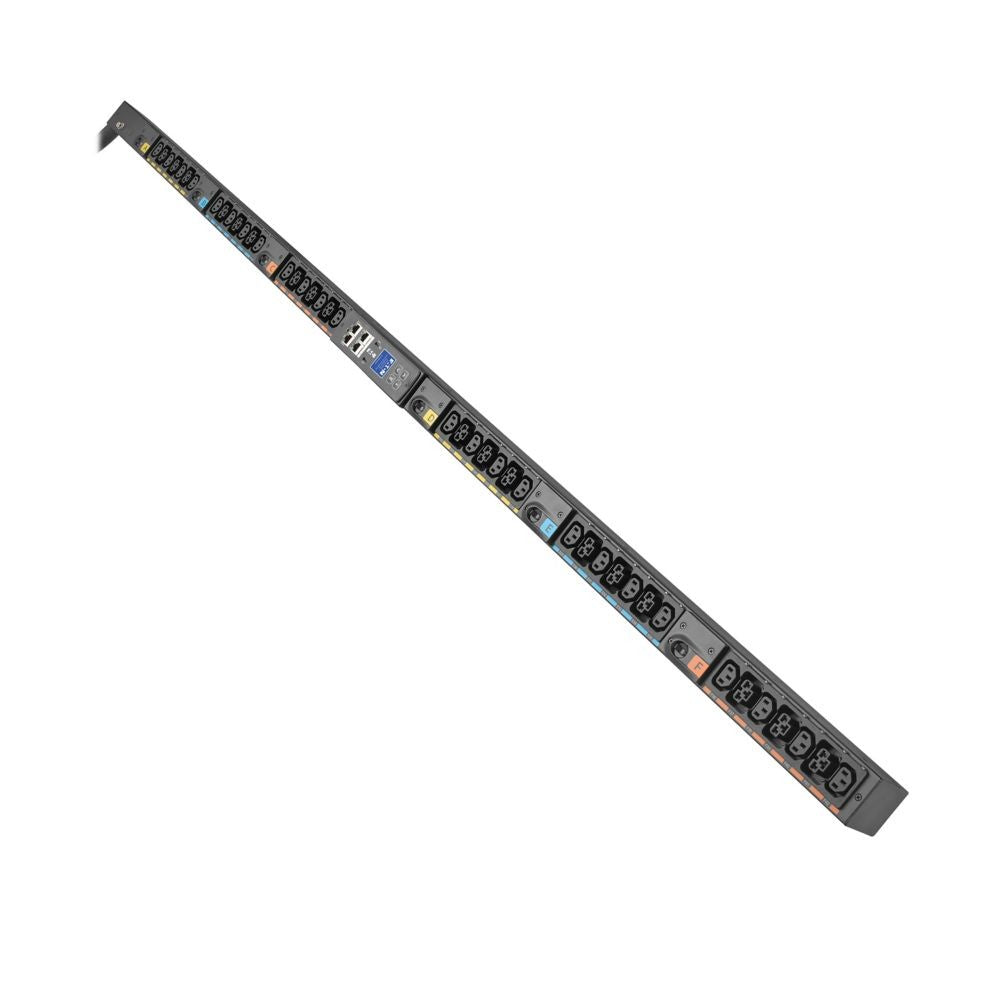

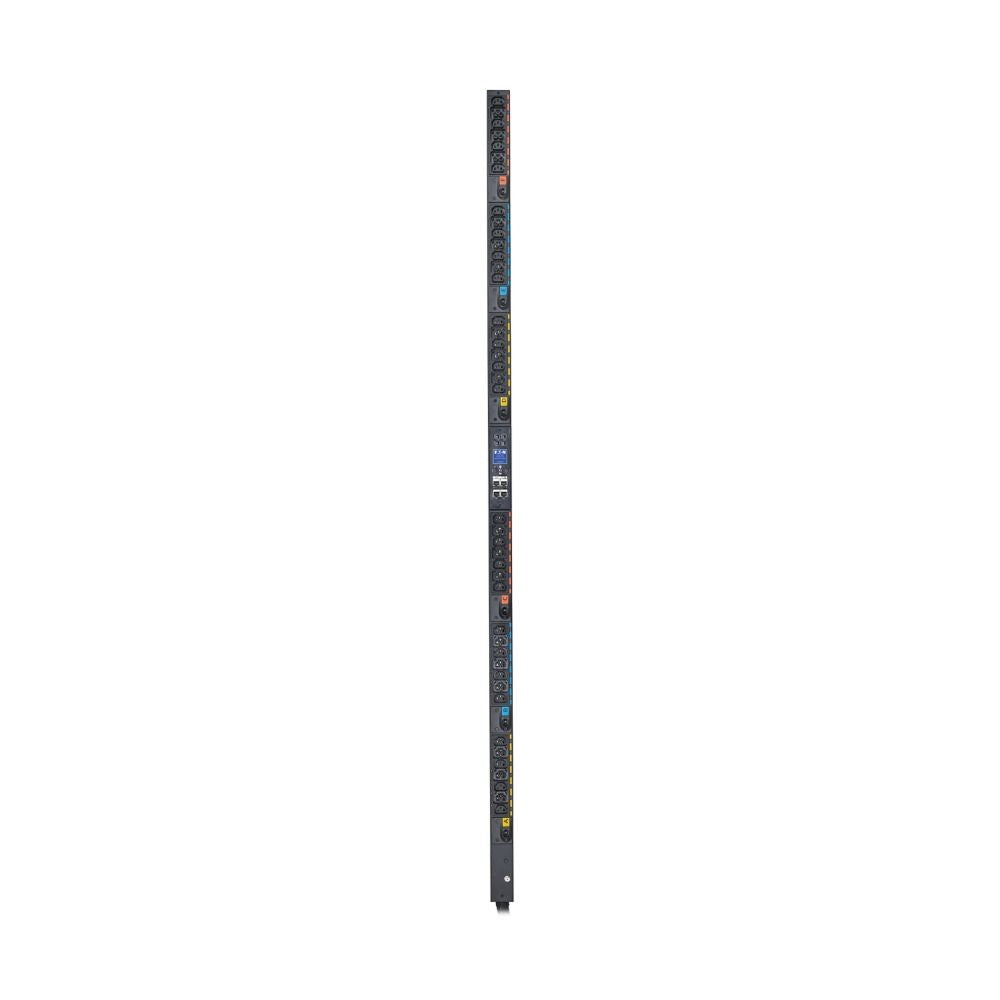

Eaton EVMI4609X – 17.3kW 3-Phase Metered Input Rack PDU, 0U

Product Overview

The Eaton EVMI4609X is a 3-phase metered input rack PDU built for high-density server racks and data center cabinets. Delivering 17.3kW at 208V/60A across 42 outlets, this 0U vertical metered input rack PDU is functionally similar to the EVMI4609X-06 but ships with a longer 10 ft input cord for greater installation flexibility. It is suited to data centers, colocation racks, and enterprise server rooms needing reliable 3-phase power monitoring.

Product Description

Like other members of the Eaton G4 metered input PDU family, the EVMI4609X mounts in the 0U vertical rail position of a server rack, keeping all horizontal U space available for active equipment. It accepts a 460P9W three-phase input on a 10 ft cord — longer than the -06 variant six ft cord — which gives integrators more routing flexibility when the electrical panel or receptacle is positioned farther from the rack. Output is distributed across 24 IEC C13 and 18 IEC C39 receptacles, supporting a broad mix of servers, network switches, and AV/IT equipment in a single rack.

Input metering via the Ethernet-connected Gigabit Network Module reports voltage, current, and power draw at the PDU level, helping IT and facilities teams monitor circuit loading and plan capacity in dense data center and server room environments. Since this is a metered-input (not switched) PDU, it does not provide remote outlet control — it is intended for installations where power visibility is the priority rather than remote power cycling.

The unit is rated for a wide 0° to 60°C operating range and is built on the same platform as the rest of the EVMI G4 lineup, making it a dependable option for enterprise and colocation server rooms.

Key Features

• 3-Phase Metered Input — Delivers real-time voltage, current, and power monitoring at the PDU input.
• 42 Total Outlets — 24x IEC C13 and 18x IEC C39 receptacles support a wide range of server and AV/IT equipment.
• 0U Vertical Mounting — Keeps all horizontal rack space available for active equipment.
• 10 ft Input Cord — Longer cord than the -06 variant, offering added routing flexibility during installation.
• 208V, 60A, 17.3kW Capacity — Sized for high-density data center and server room racks.
• Ethernet/Gigabit Network Module Monitoring — Supports remote polling of power metering data over the network.
• Commercial-Grade Build — Suited for continuous-duty operation in data centers and server rooms.
