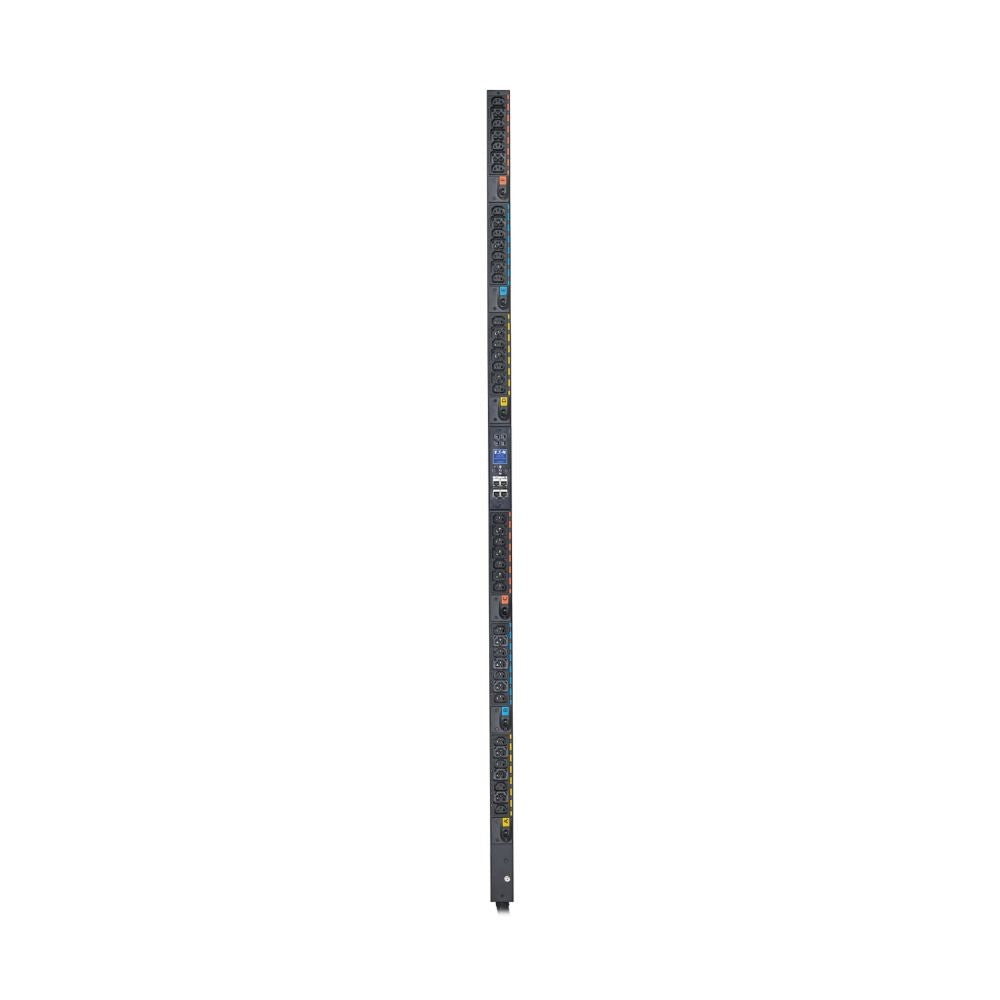

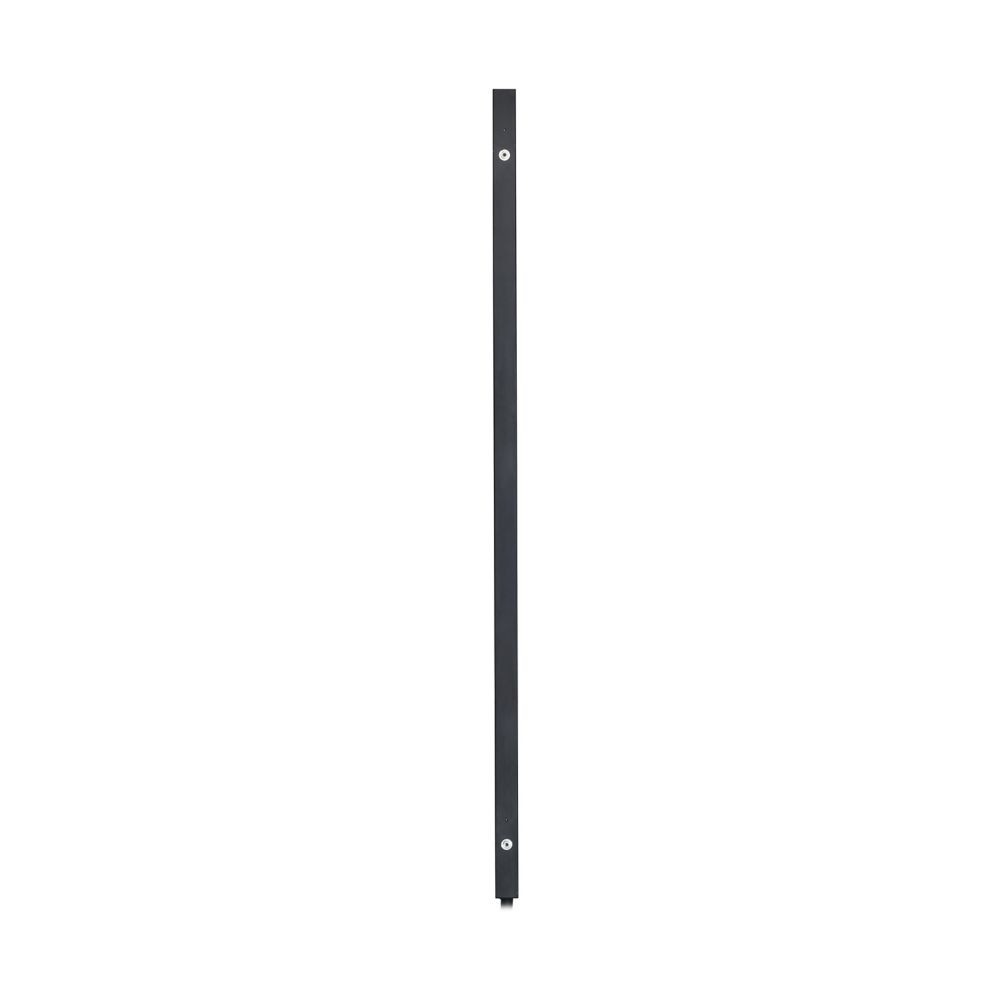

Eaton EVMI4609X-06 – 17.3kW 3-Phase Metered Input Rack PDU, 0U

Product Overview

The Eaton EVMI4609X-06 is a 3-phase metered input rack PDU built for high-density data center and server room deployments where circuit-level power monitoring is required. This 0U vertical rack PDU delivers 17.3kW at 208V/60A across 42 outlets, giving IT and facilities teams accurate input power visibility for capacity planning. It is a strong fit for colocation racks, enterprise server rooms, and any commercial AV/IT installation running dense equipment loads on a 3-phase metered input rack PDU.

Product Description

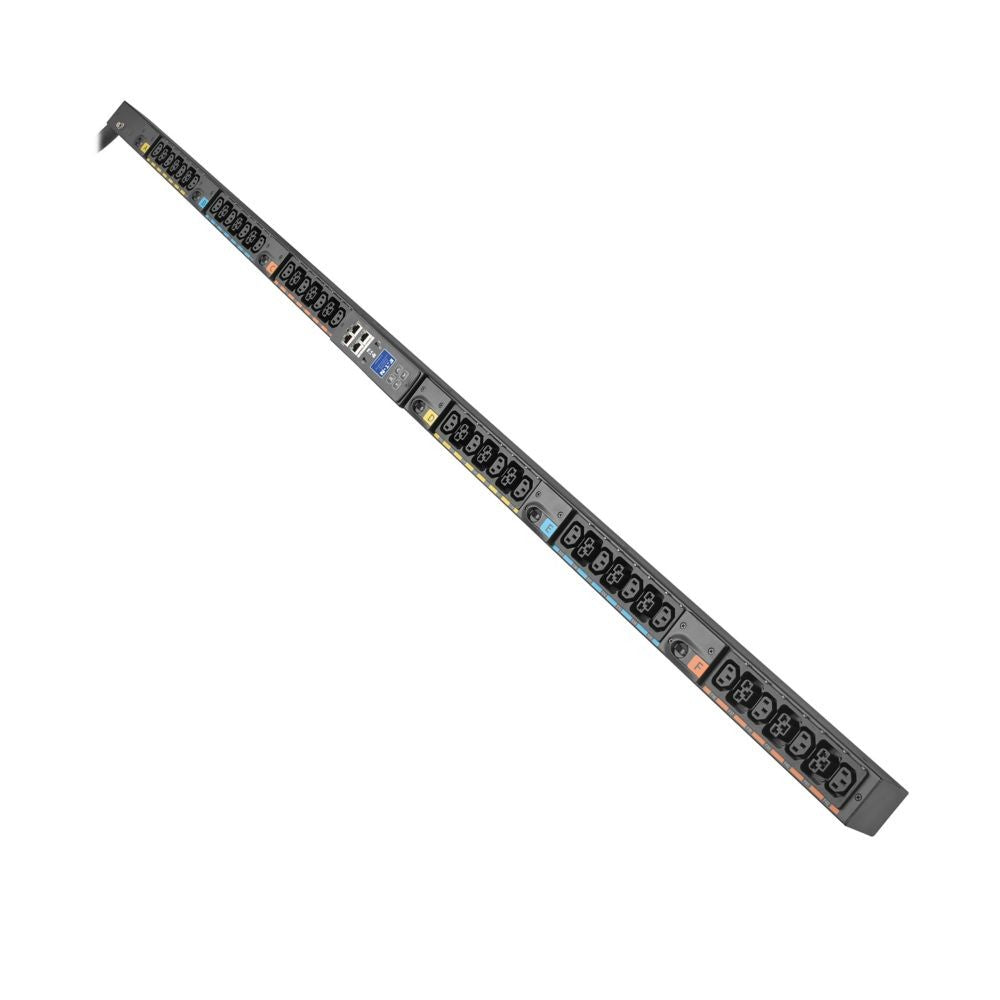

Designed for zero-U vertical mounting along the rear rail of a server rack or network cabinet, the EVMI4609X-06 frees up horizontal rack space for servers, switches, and AV processing gear while still delivering full metered input rack PDU functionality. The unit accepts a 460P9W three-phase input plug on a 6 ft cord and distributes power to 24 IEC C13 and 18 IEC C39 outlets, supporting a mixed load of servers, network switches, and rack-mount AV equipment.

Built-in input metering (via Gigabit Network Module / Ethernet interface) reports voltage, current, and power draw at the PDU level, which helps data center and IT operations teams track load against circuit capacity and avoid nuisance breaker trips. This makes the EVMI4609X-06 a practical choice anywhere procurement or IT managers need commercial-grade power distribution with basic power monitoring but do not require per-outlet switching.

The rugged 0U vertical form factor is intended for tall, high-density racks common in data centers, network closets, and AV equipment rooms. Operating temperature range is rated 0°C to 60°C, supporting deployment in both conditioned data center environments and less climate-controlled AV/IT equipment rooms. As a metered (not switched) PDU, it is best suited to installations where visibility into power consumption matters more than remote outlet-level control.

Key Features

• 3-Phase Metered Input — Reports voltage, current, and power draw at the PDU input so IT teams can monitor circuit loading in real time.
• 42 Total Outlets — 24x IEC C13 and 18x IEC C39 receptacles support a mix of servers, switches, and rack-mount AV/IT equipment.
• 0U Vertical Mounting — Mounts in the rear rail space of the rack, preserving horizontal U space for active equipment.
• 208V, 60A, 17.3kW Capacity — Sized for high-density server racks and data center cabinets running heavier combined loads.
• 6 ft 460P9W Input Cord — Three-phase input plug designed for direct connection to data center-grade 3-phase circuits.
• Network/Ethernet Monitoring Interface — Enables remote polling of PDU metering data over the network for centralized power monitoring.
• Commercial-Grade Construction — Built for continuous-duty operation in data center, server room, and network closet environments.

Technical Specifications
