Eaton EVMI2120X – G4 3-Phase Metered PDU 5.8kW
Product Overview
The Eaton EVMI2120X is a 0U vertical, 3-phase metered rack PDU from Eaton's G4 platform, sized for 120/208V circuits with a NEMA L21-20P input. It pairs a 42-outlet layout with Gigabit network monitoring and Eaton Brightlayer software compatibility. Integrators researching a 3-phase metered G4 rack PDU for a data center or server room rack will find this model well suited to standardized, cascadable PDU rollouts. It fits data center racks, server rooms, and network cabinets running mixed 120V/208V equipment.
Product Description

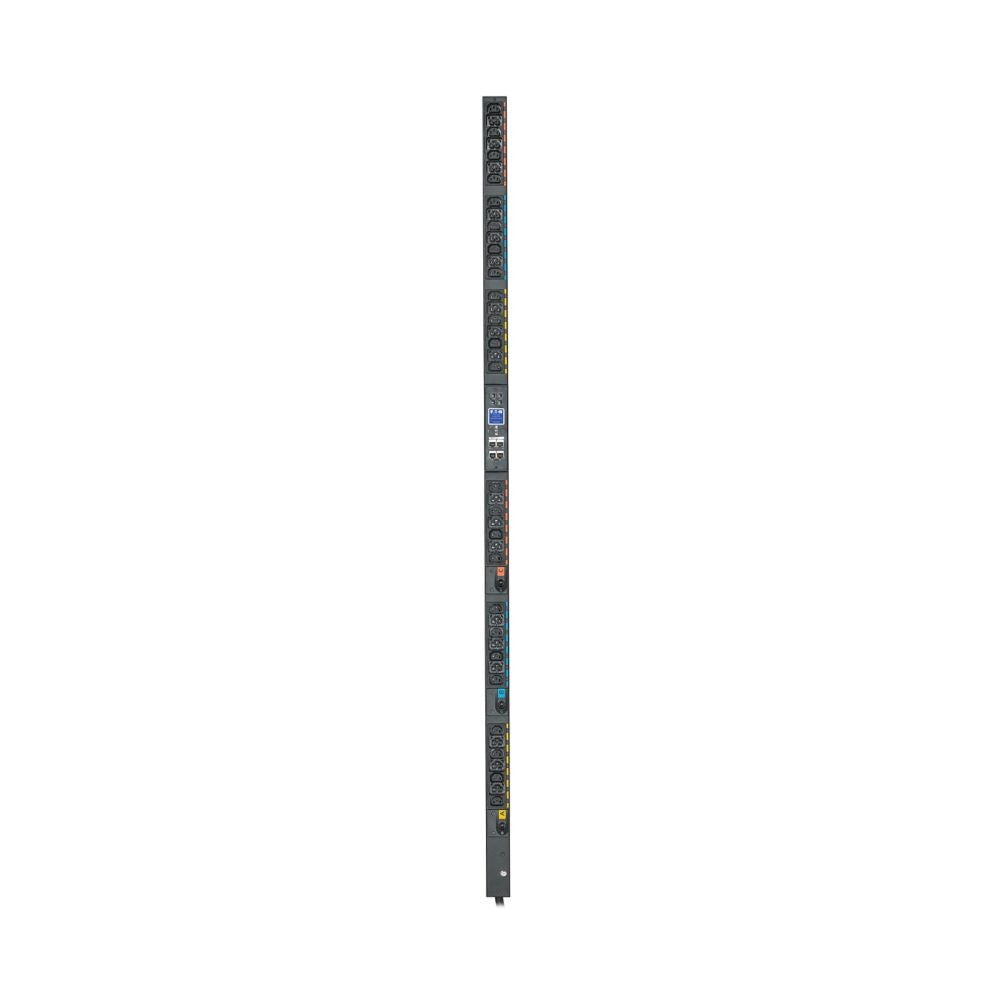

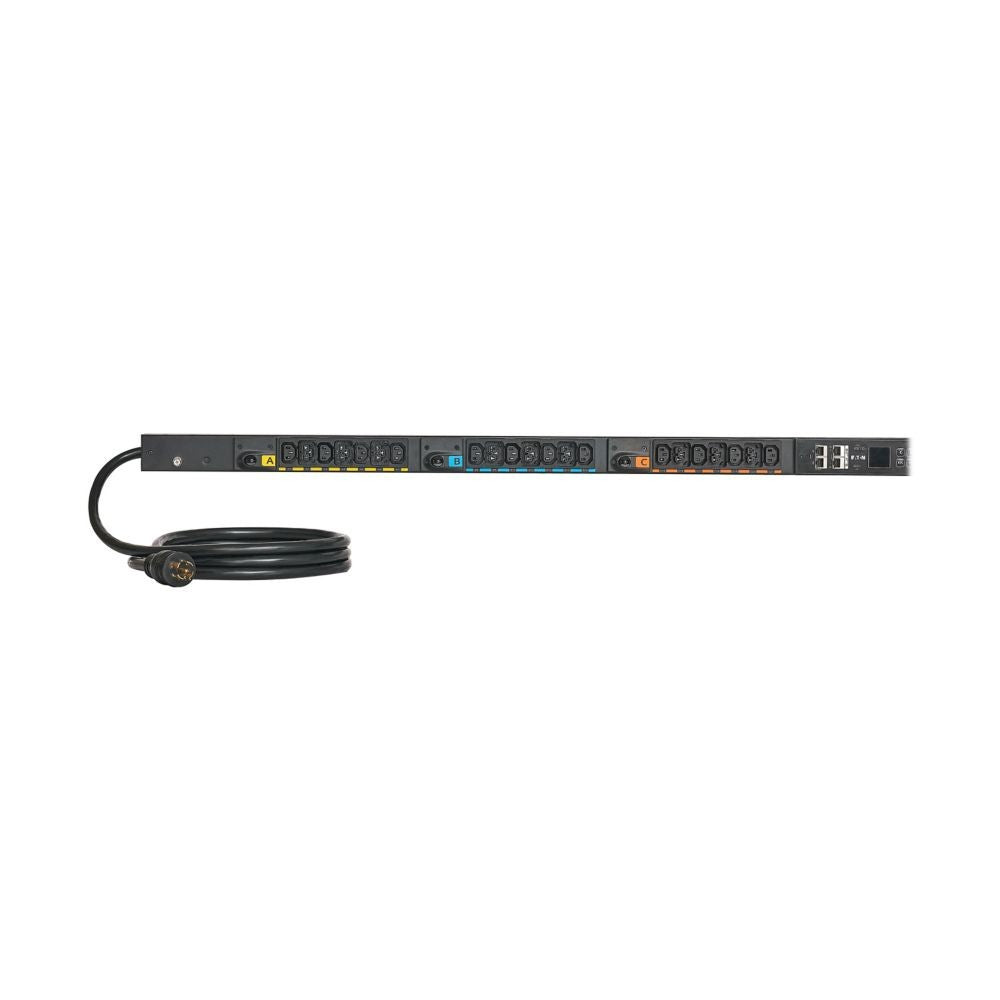

The EVMI2120X draws 120/208V 3-phase power through a NEMA L21-20P plug on a 10 ft. cord, rated for 20A input and up to 5.8kW total output, with a maximum of 16A per output phase. It provides 42 outlets — 24 IEC C13 and 18 IEC C39 combo receptacles that accept both C14 and C20 corded devices — giving rack designers flexibility across standard servers and higher-draw network equipment. The Gigabit Ethernet network module supports SNMP monitoring and integration with Eaton's Brightlayer power management software, letting facilities teams centralize visibility across multiple racks. An LCD pixel display reports section-level current, voltage, power, and energy readings at ±1% accuracy, and the unit is cascadable with up to 40 other PDUs, each retaining its own IP address for straightforward multi-rack management. The aluminum 0U vertical chassis, roughly 68 inches tall, uses toolless mounting buttons for front or side installation and keeps all 42 outlets accessible along the rack rail. Optional environmental sensors are available separately for temperature and humidity monitoring.
Key Features
- 5.8kW 3-Phase Capacity — Sized for 120/208V rack circuits with moderate to high equipment density.
- 42 Outlets (24 C13 / 18 C39) — Combo receptacles accommodate a mix of standard and higher-draw devices.
- Gigabit Ethernet with SNMP and Brightlayer Support — Centralizes monitoring across multiple racks and PDUs.
- LCD Pixel Display, ±1% Accuracy — Section-level readings for current, voltage, power, and energy.
- Cascade up to 40 PDUs — Each unit keeps its own IP address for simplified large-scale management.
- Toolless Front/Side Mounting — Simplifies installation in a range of rack cabinet layouts.
- Optional Environmental Sensors — Adds temperature/humidity monitoring where needed.
Typical Applications
- Data center
- Server room
- Network closet
- Colocation facility
Technical Specifications
| Spec | Value |
|---|---|
| Input Voltage | 120/208V, 3-phase |
| Max Input Current | 20A (16A per output phase max) |
| Input Plug | NEMA L21-20P |
| Cord Length | 10 ft. |
| Max Output Power | 5.8kW |
| Output Receptacles | 24x C13, 18x C39 combo (42 total) |
| Form Factor | 0U, vertical, aluminum chassis |
| Dimensions (H x W x D) | 68.1 in x 2.0 in x 2.08 in |
| Weight | 16.54 lb (7.50 kg) |
| Network Module | Gigabit Ethernet, SNMP compatible, Eaton Brightlayer support |
| Certifications | UL 62368-1, cTUVus, FCC Part 15 Class A |
Frequently Asked Questions
Can the EVMI2120X integrate with Eaton Brightlayer software?
Yes. Its Gigabit network module supports Eaton Brightlayer power management software for centralized visibility across multiple racks.
How many EVMI2120X units can be cascaded together?
Up to 40 PDUs can be cascaded, with each unit retaining its own IP address for simplified multi-rack management.
Does this PDU offer per-outlet switching?
No. The EVMI2120X is a metered PDU reporting section-level current, voltage, power, and energy; it does not provide individual outlet control.
What input circuit does this PDU require?
A 120/208V 3-phase circuit rated for 20A input, connected via the included NEMA L21-20P plug.
Are environmental sensors included?
No. Environmental sensors for temperature and humidity monitoring are available as an optional accessory.
What warranty does Eaton provide on this PDU?
Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
