Eaton EVMI1530X – G4 3-Phase Metered PDU 8.6kW
Product Overview
The Eaton EVMI1530X is a 0U vertical, 3-phase metered rack PDU from Eaton's G4 platform, built for server and network racks running on 208V 3-phase circuits with a NEMA L15-30P input. It combines a large outlet count with Gigabit-speed network monitoring. Buyers researching a 3-phase metered PDU, G4 rack PDU, or L15-30P input PDU for a data center rack will find this model suited to modern, cascadable PDU deployments. It fits data center racks, server rooms, and network cabinets standardizing on Eaton's G4 platform.
Product Description

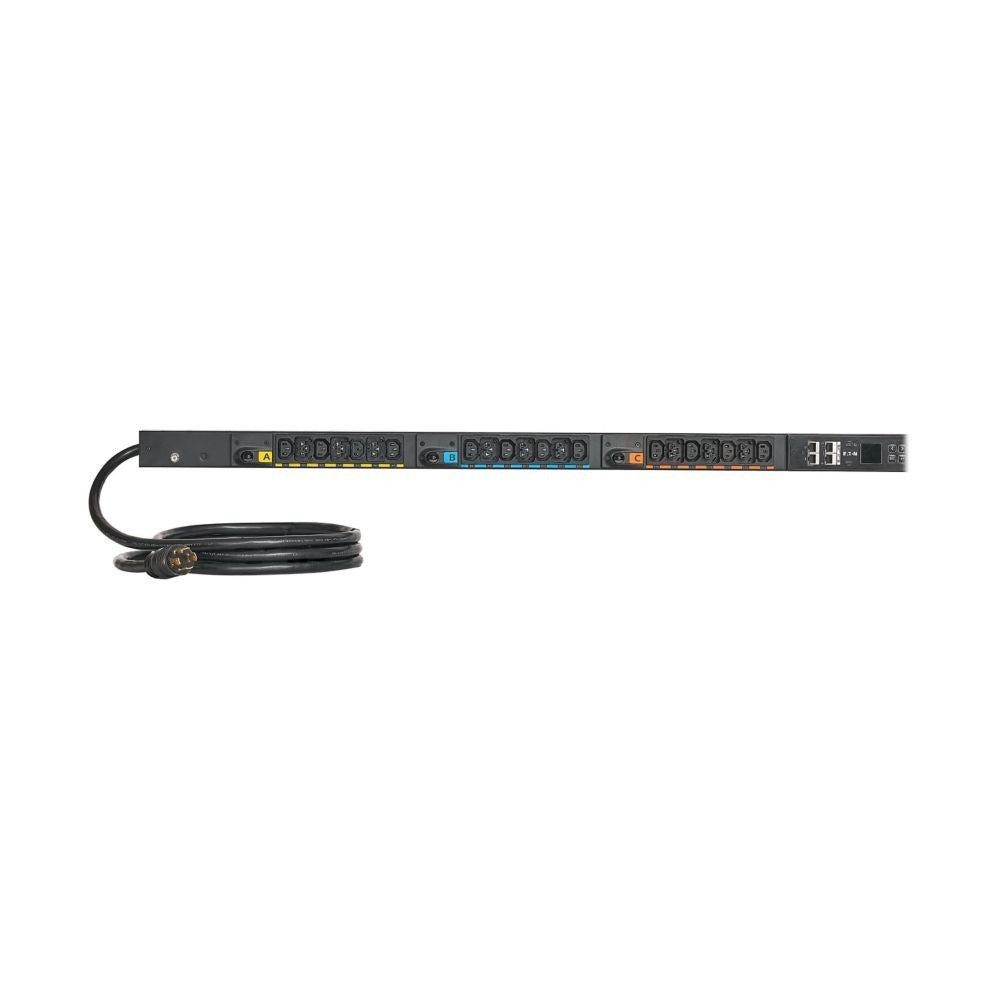

The EVMI1530X draws 208V 3-phase power through a NEMA L15-30P plug on a 10 ft. cord, rated for 30A input and up to 8.6kW total output capacity, with a maximum of 24A per output phase. It delivers 42 outlets — 24 IEC C13 and 18 IEC C39 combo receptacles accepting both C14 and C20 corded devices — spread across three low-profile 20A breakers, each protecting two outlet banks independently so a fault on one bank does not take down the whole PDU. The Eaton Gigabit Network Module G4 provides embedded cybersecurity and Ethernet/serial connectivity, and the unit is SNMP compatible for integration with existing network monitoring platforms. An onboard LCD pixel display reports current, voltage, power, and energy readings at ±1% accuracy, and the PDU can be cascaded with up to 40 other units under individual IP addresses, simplifying management of large multi-rack deployments. The aluminum, toolless-mount 0U vertical chassis measures roughly 68 inches tall, keeping all 42 outlets accessible along the rack rail. This PDU is a strong fit for data centers and server rooms that need 3-phase metered power distribution with modern network management and per-bank circuit protection.
Key Features
- 8.6kW 3-Phase Capacity — Delivers substantial power across 42 outlets from a 208V circuit.
- 42 Outlets (24 C13 / 18 C39) — Combo receptacles accept both C14 and C20 corded equipment.
- Three Independent 20A Breakers — Per-bank circuit protection limits the impact of a single fault.
- Eaton Gigabit Network Module G4 — Embedded cybersecurity with Ethernet/serial connectivity and SNMP support.
- LCD Pixel Display, ±1% Accuracy — Local readout of current, voltage, power, and energy.
- Cascade up to 40 PDUs — Each unit keeps an individual IP address for simplified multi-rack management.
Technical Specifications
| Spec | Value |
|---|---|
| Input Voltage | 208V, 3-phase |
| Max Input Current | 30A (24A per output phase max) |
| Input Plug | NEMA L15-30P |
| Cord Length | 10 ft. |
| Max Output Power | 8.6kW |
| Output Receptacles | 24x C13, 18x C39 combo (42 total) |
| Circuit Protection | 3x 20A low-profile breakers (per two outlet banks) |

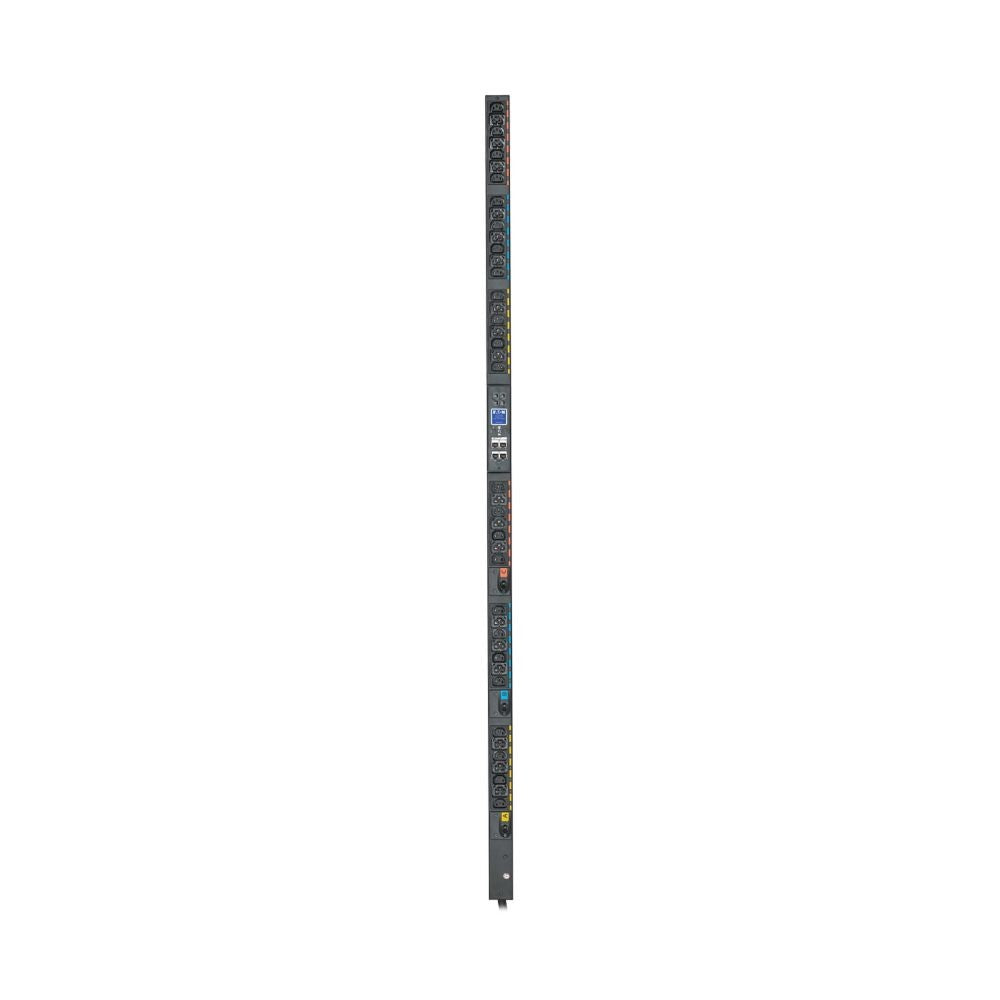

| Form Factor | 0U, vertical, aluminum chassis |
| Dimensions (H x W x D) | 68.1 in x 2.09 in x 2.08 in |
| Weight | 16.54 lb |
| Network Module | Eaton Gigabit Network Module G4, SNMP compatible, cascade up to 40 units |
| Monitoring | LCD pixel display, ±1% accuracy |
