Eaton EVMAGU23X-E – Universal-Input Managed Rack PDU G4, 42 Outlets, End-Entry, 0U

Product Overview

The Eaton EVMAGU23X-E is a universal-input managed rack PDU built for data centers that need one PDU chassis to flex across multiple voltage standards. Supporting 208-240V, 415/240V, and 208/120V configurations across 3-phase or single-phase input, this managed PDU is designed for 42-outlet high-density server and network racks. It is a strong fit for multi-region data center deployments where standardizing on a single universal PDU model simplifies procurement and spares inventory. This G4 model uses an end-entry input cord.

Product Description

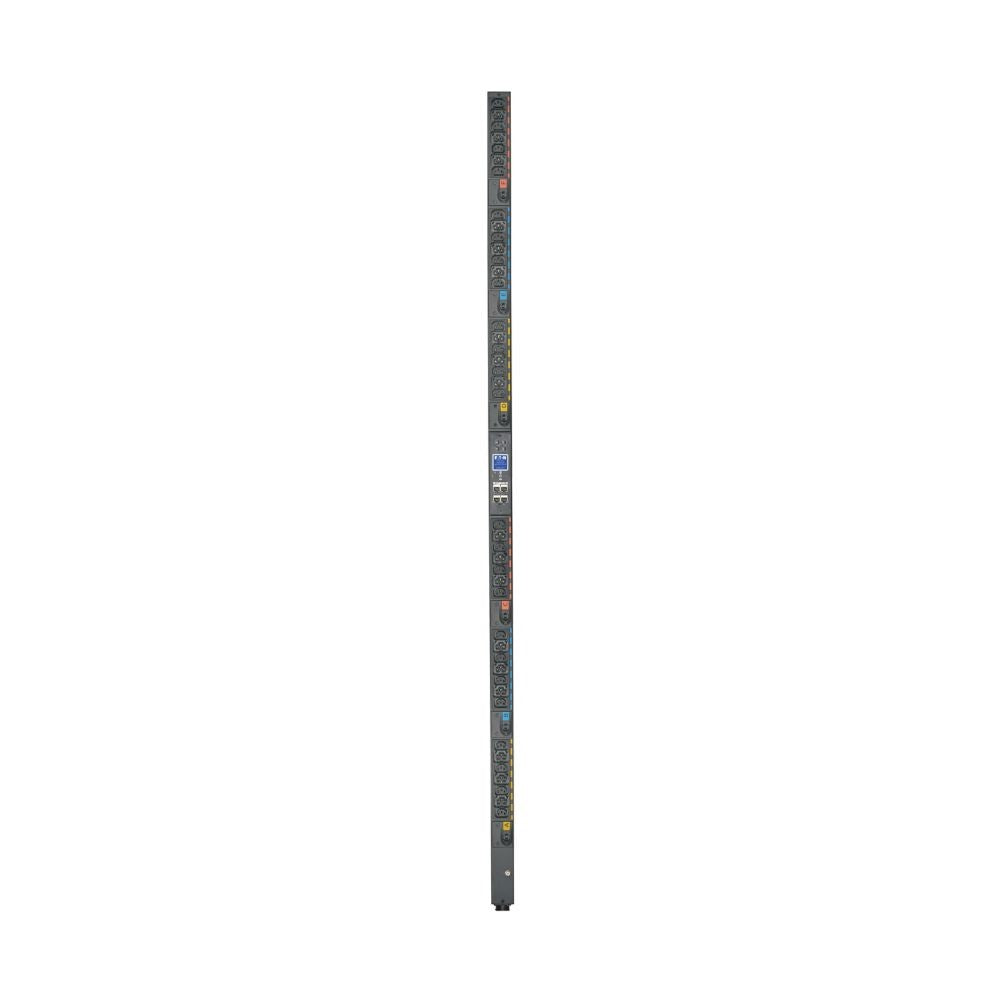

The EVMAGU23X-E supports universal input up to 55A, with 17 removable cables covering 15 different plug types so integrators can match the exact regional power standard without changing PDU hardware. Output is delivered across 42 total outlets — 24 IEC 60320 C13 and 18 C39 combo receptacles that accept both C14 and C20 connectors — giving flexibility to power a wide mix of servers, switches, and higher-draw network equipment from a single 0U vertical unit. The chassis measures 72 inches tall with toolless mounting buttons that allow front- or side-facing installation in 42U and larger racks.

As a managed PDU on Eaton's G4 platform, the EVMAGU23X-E provides outlet-level metering, monitoring, and switching with measurement accuracy of plus or minus 1% for current, voltage, and power. An LCD pixel display shows outlet-level readings directly on the unit, while network access is available through Web interface, SNMP, CLI, or REST API for integration with existing data center management tools. Six color-coded load banks with individual circuit breakers simplify troubleshooting, and advanced cybersecurity features, including chain-of-trust encryption, support organizations with strict network security requirements for remotely managed power infrastructure.

Key Features

• Universal Input Support — Covers 208-240V, 415/240V, and 208/120V with 15 available plug types.
• 42 Total Outlets — 24 C13 and 18 C39 combo receptacles accept both C14 and C20 devices.
• 23kW Capacity — Supports high-density server and network racks.
• +/-1% Measurement Accuracy — Precise outlet-level current, voltage, and power readings.
• Multiple Management Interfaces — Web, SNMP, CLI, and REST API access for flexible integration.
• LCD Outlet Display — On-unit visibility into outlet-level readings without a network connection.
• Toolless Front/Side Mounting — Simplifies installation in 42U+ racks.
• Chain-of-Trust Cybersecurity — Advanced protections for network-managed power infrastructure.
