Eaton EVBAGU23X-E – Universal-Input 0U Basic PDU G4

Product Overview

The Eaton EVBAGU23X-E is a universal-input basic rack PDU G4 supporting both 208V and 415/240V operation with 42 outlets, built for data centers and colocation facilities that need flexibility across rack power configurations. This 0U universal-input PDU accommodates power needs ranging from 5kVA single-phase to 23kVA three-phase, letting a single PDU model serve multiple deployment scenarios instead of stocking separate SKUs for each voltage and phase combination.

Product Description

This universal input PDU (UPDU) G4 is designed to meet diverse rack-power needs across a data center or colocation environment. Equipped with 42 outlets, the EVBAGU23X-E accommodates power requirements ranging from 5kVA single-phase up to 23kVA three-phase, and pairs with any one of 17 removable power cables offering 15 different plug options, all sold separately. This modular cable approach alleviates the cost and complexity of mixing and matching different PDU models for different installations, and it helps ensure a facility won't outgrow its PDU as power needs evolve over time.

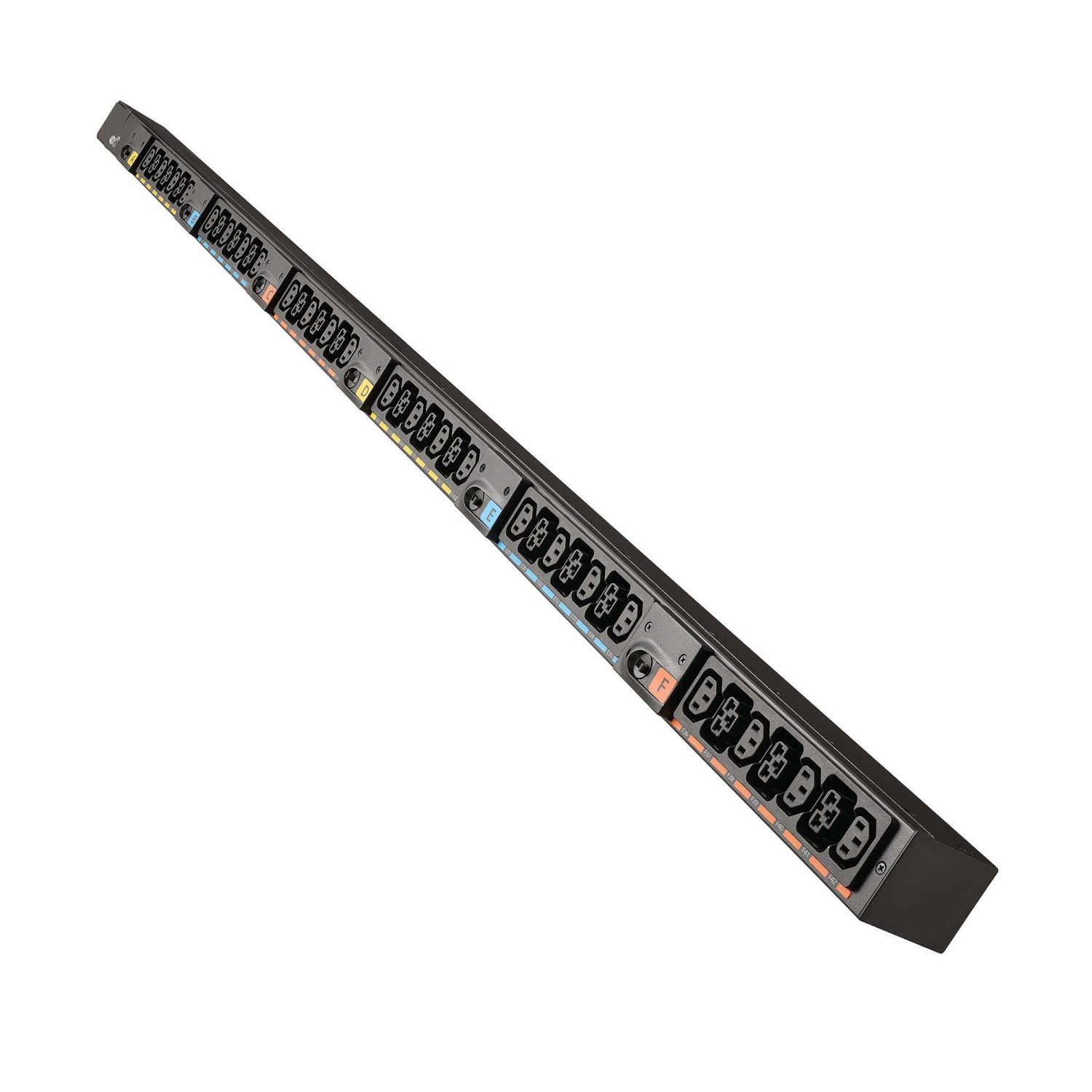

The EVBAGU23X-E features 24 C13 outlets, which accept C14 connectors, and 18 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the total number of distinct PDU models a data center needs to purchase and install. As a 0U end-entry unit with a 72-inch form factor, it mounts along the vertical rail of a rack enclosure without consuming usable rack unit space, making it well suited for standardized rack builds across enterprise data centers, colocation facilities and network closets.

Key Features

• Universal Input Support — Accommodates 208V and 415/240V operation, covering 5kVA single-phase up to 23kVA three-phase power needs.

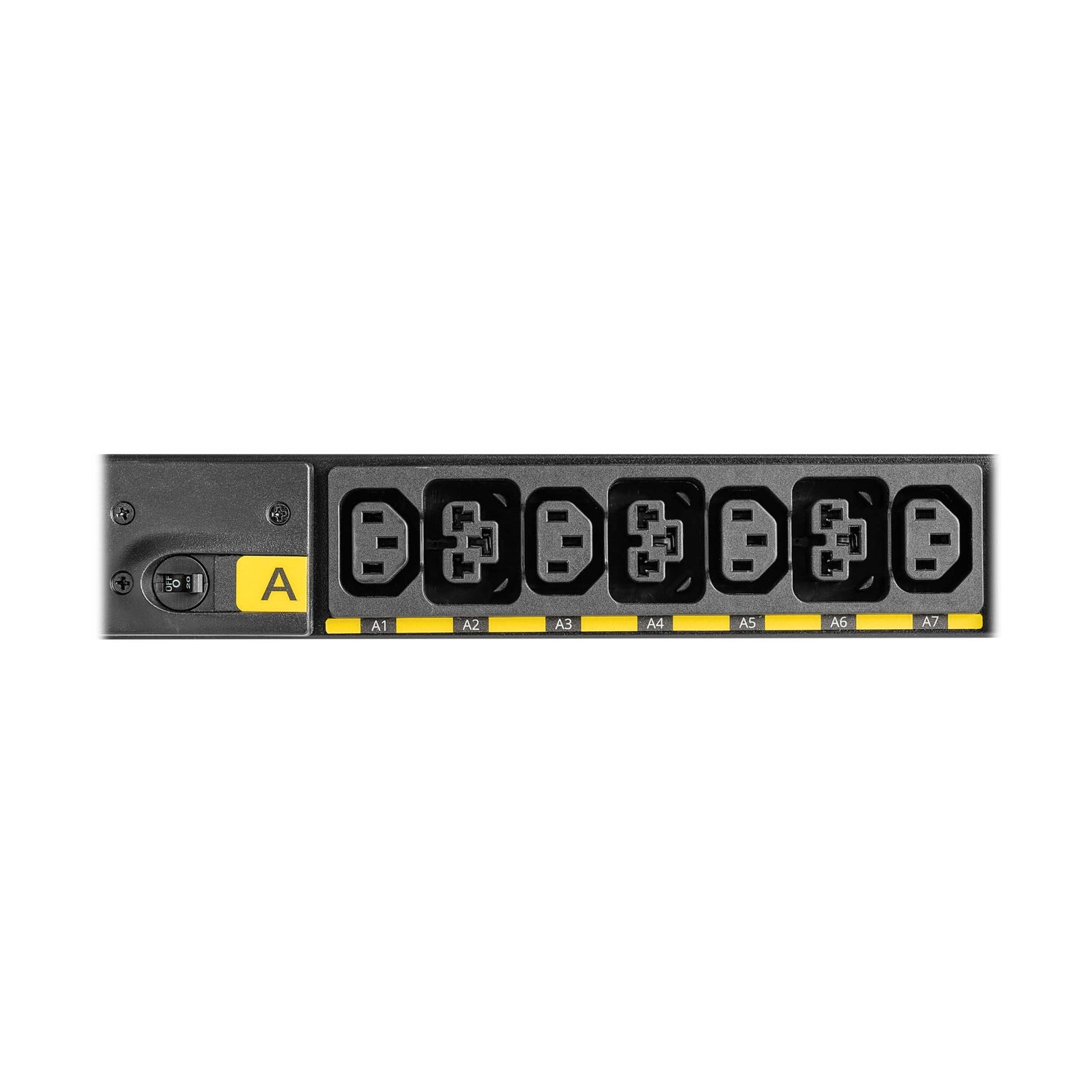

• 42 Total Outlets — Provides 24 C13 outlets accepting C14 connectors and 18 high-retention C39 combo outlets accepting C14 or C20 connectors.

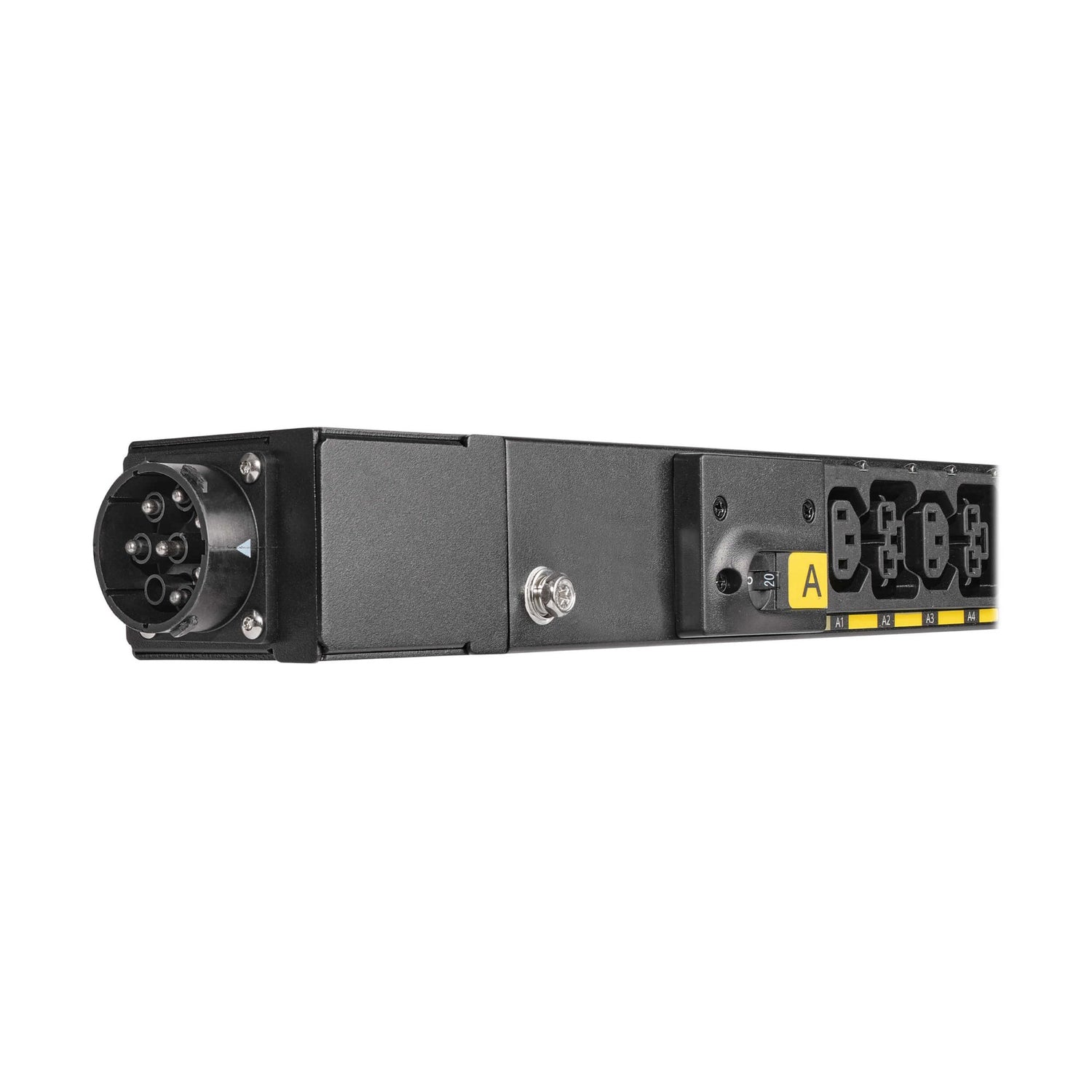

• Modular Removable Power Cables — Pairs with any of 17 removable power cables and 15 plug options, sold separately, to match specific facility requirements.

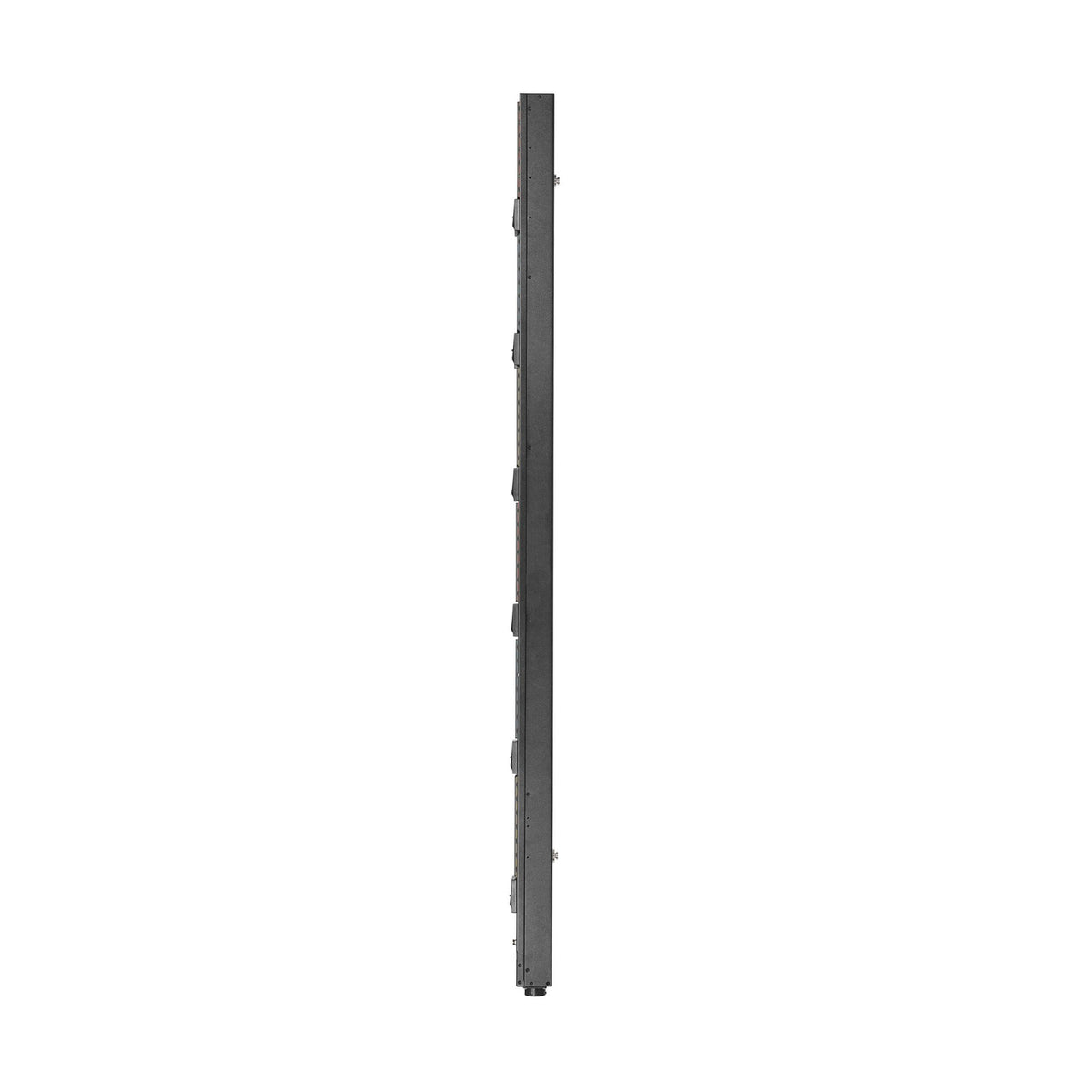

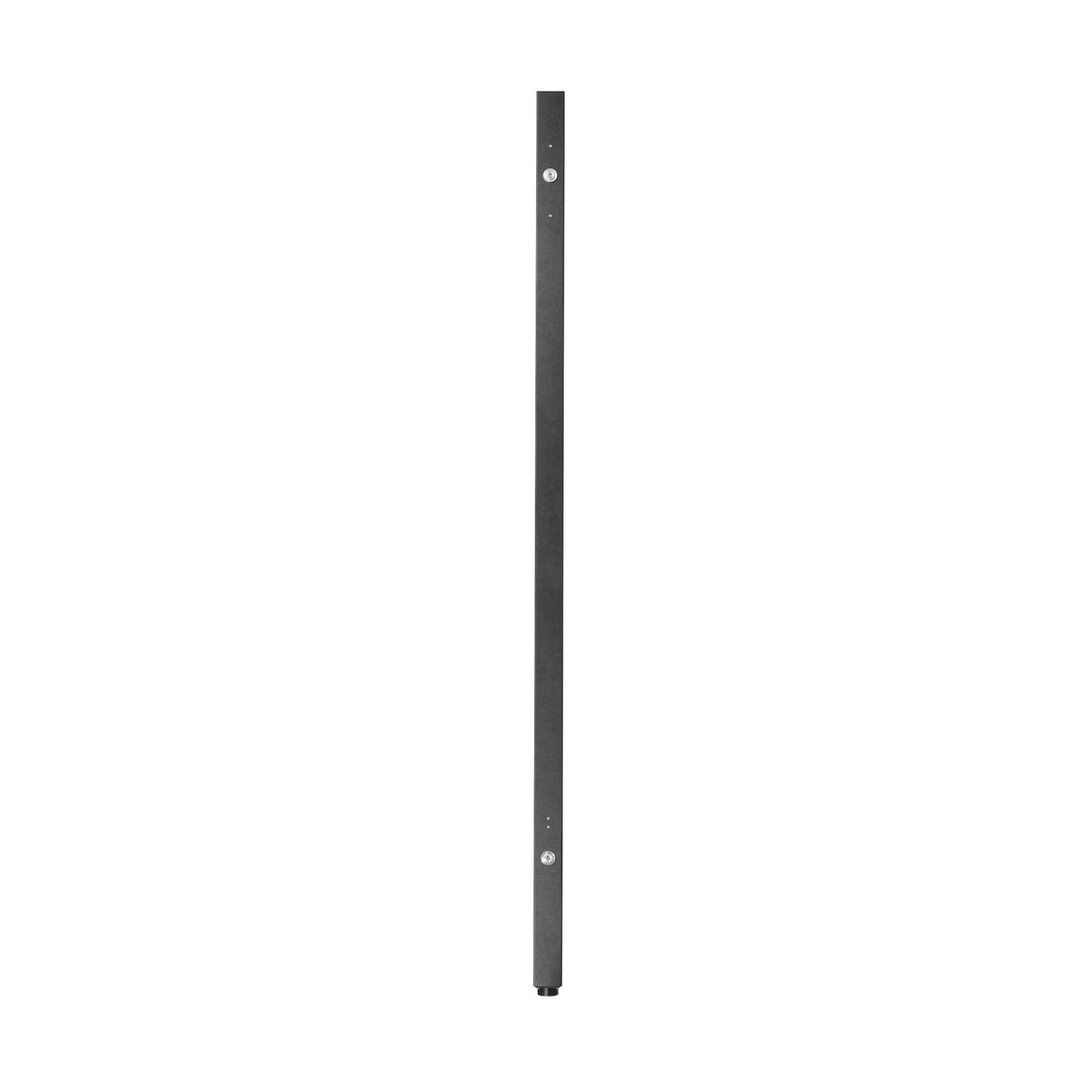

• 0U Vertical Rack Mounting — A 72-inch, 0U end-entry design mounts along the rack rail without consuming usable rack unit space.
• Reduced SKU Complexity — A single PDU model covers multiple voltage and phase scenarios, reducing the number of distinct PDU SKUs a facility must stock.

Typical Applications

• Enterprise data center rack power distribution
• Colocation data center facilities
• Network closet and distributed IT infrastructure

Technical Specifications

Frequently Asked Questions

Does the EVBAGU23X-E include an input power cable?

No. The input cable is sold separately, allowing you to choose from 17 removable power cables with 15 different plug options to match your facility's electrical service.

Can this PDU be used for both single-phase and three-phase installations?

Yes. It accommodates power needs ranging from 5kVA single-phase to 23kVA three-phase, making it adaptable across different rack power configurations.

How much rack unit space does this PDU consume?

It is a 0U unit that mounts along the vertical rail of the rack enclosure, so it does not consume usable rack unit (U) space.

What outlet types does the EVBAGU23X-E provide?

It provides 24 C13 outlets that accept C14 connectors and 18 high-retention C39 combo outlets that accept either C14 or C20 connectors.

Can Creation Networks help select the right input power cable for this PDU?

Yes. Our team can help match the appropriate power cable and plug configuration to your facility's electrical service and rack layout.

What warranty does Eaton provide on the EVBAGU23X-E?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
