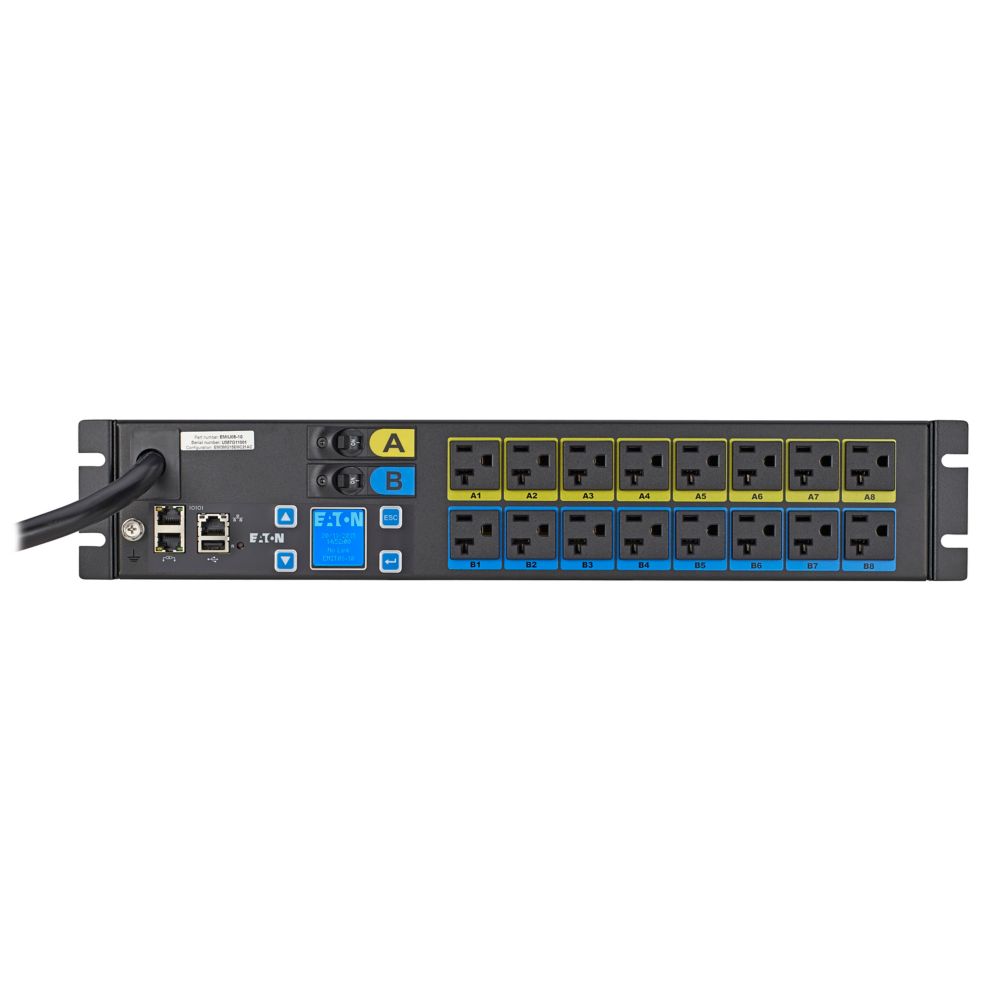

Eaton EMIU05-10 – 120V 2U Metered Rack PDU

Product Overview

The Eaton EMIU05-10 is a 100-127V, 2U rack-mount metered input PDU designed for data center and server room power distribution where teams need clear visibility into circuit load. This metered rack PDU installation option suits colocation cabinets and network closets running standard 120V IT equipment, giving integrators a reliable way to confirm current draw before adding load to a circuit. With 16 NEMA 5-20R outlets and an L5-30P input plug, it is built for commercial-grade deployment in racks carrying servers, switches, and other 120V equipment.

Product Description

The EMIU05-10 pairs a 24A, 100-127V single-phase input with 16 NEMA 5-20R output receptacles rated for a maximum of 2.88 kW, making it a practical fit for server room and network closet racks standardized on 120V power. As a metered (not switched) rack PDU, it reports aggregate load at the input so facilities managers and integrators can validate circuit headroom before racking additional IT or AV equipment, without paying for per-outlet switching they may not need. The 2U horizontal form factor mounts in standard EIA-310 four-post racks and measures roughly 19 inches wide, 3.4 inches tall, and 5 inches deep, keeping it compact within a rack elevation plan that also includes switches, servers, or AV encoders. This PDU is a common choice for colocation cabinet buildouts where the tenant needs their own metered power distribution independent of the facility's building management system, as well as for network closets supporting security, access control, or building automation equipment. The L5-30P twist-lock input plug and 10 ft cord are intended for direct connection to a dedicated 30A branch circuit, a standard configuration in commercial data center and server room electrical design. Because the unit is metered rather than managed, it does not include network connectivity for remote monitoring dashboards; teams that need remote polling should evaluate Eaton's managed or switched PDU lines instead. UL listing supports use in commercial installations subject to standard electrical inspection requirements. Integrators standardizing a multi-rack deployment often pair the EMIU05-10 in 120V racks with the EMIU06-10 in adjacent 208V racks to keep a consistent metered PDU platform across a data center power distribution project.

Key Features

• 16 NEMA 5-20R Outlets — Provides ample outlet capacity for a 120V server or network rack without overloading a single circuit.
• 2.88 kW Maximum Output — Rated to support typical server, switch, and network appliance loads found in commercial IT racks.
• L5-30P Twist-Lock Input Plug — Connects securely to a dedicated 30A branch circuit, reducing the risk of accidental disconnection in an active rack.
• 2U Compact Rack-Mount Form Factor — Fits standard four-post racks while leaving maximum vertical space for servers and network gear.
• Metered Input Monitoring — Displays real-time load locally so technicians can verify circuit headroom before adding equipment.
• UL Listed Construction — Meets commercial electrical safety standards required for data center and colocation installations.
• 3-Year Manufacturer Warranty — Backed by Eaton's standard coverage for commercial power distribution equipment.

Typical Applications

• data center
• colocation cabinet
• server room
• network closet

Technical Specifications

Frequently Asked Questions

Will the EMIU05-10 fit a standard four-post server rack?

Yes. It is a 2U horizontal unit designed for standard EIA-310 four-post server and network racks and mounts using conventional rack rails or cage nuts.

What circuit does the EMIU05-10 require?

It requires a dedicated 100-127V, 30A branch circuit terminated with a receptacle matching its NEMA L5-30P plug.

Does this PDU support remote monitoring over the network?

No. The EMIU05-10 is a metered input unit that displays load locally; it does not include network connectivity for remote dashboards. For network-monitored PDUs, consider Eaton's managed PDU series.

Can outlets be switched on and off individually?

No. This model reports aggregate input load but does not provide per-outlet switching. Facilities needing remote outlet control should specify a switched or managed PDU instead.

Is this PDU suitable for a colocation cabinet with mixed IT equipment?

Yes. With 16 NEMA 5-20R outlets and 2.88 kW capacity, it is well suited to colocation cabinets running servers, switches, and other 120V IT equipment.

What warranty comes with the EMIU05-10?

Eaton backs this PDU with a 3-year limited warranty. Contact Creation Networks for full warranty terms and support options.

How does the EMIU05-10 compare to the EMIU06-10?

The EMIU05-10 is built for 100-127V circuits while the EMIU06-10 is the 200-240V equivalent in the same 2U metered rack PDU family, allowing consistent standardization across mixed-voltage racks.
