Eaton EMIT06-10 – 208V Metered PDU 14-Outlet Daisy-Chain

Product Overview

The Eaton EMIT06-10 metered rack PDU is a 208V single-phase unit that balances outlet count and connector variety, pairing ten C13 receptacles with four C19 receptacles for mixed equipment loads. It is designed for data center and server room deployments running a combination of standard servers and higher-draw devices from one rack PDU. Its daisy-chain networking capability supports efficient metered PDU installation across multiple racks sharing a single IP address, simplifying larger commercial AV/IT rollouts.

Product Description

The EMIT06-10 is a 1U, 200-240V, 24A metered input rack PDU with ten IEC C13 and four IEC C19 output receptacles, delivering up to 5.76 kW from a single L6-30P input. This fourteen-outlet mixed configuration suits racks running a blend of standard servers on C13 cords and higher-draw equipment, such as switches or blade enclosures, on C19 cords — a common pattern in data center and server room deployments. As a metered input PDU, it provides billing-grade accuracy of approximately ±1% on input current readings, giving facilities teams a reliable basis for capacity planning without the added complexity of per-outlet metering. A notable feature of this platform is the ability to daisy-chain up to four ePDUs so they share a single network connection and IP address, which reduces the number of network drops required when deploying multiple PDUs across a row of racks. The 1U horizontal form factor and rack-mountable design keep the unit's footprint minimal in fully populated server rooms. Its L6-30P twist-lock input plug is rated for the higher current associated with a mixed 14-outlet load. Backed by a 3-year limited warranty, the EMIT06-10 is a practical option for facilities standardizing on a single metered PDU platform across a data center row while minimizing per-rack networking overhead.

Key Features

• Ten C13 and Four C19 Outlets — Fourteen total outlets in a mixed configuration support both standard servers and higher-draw equipment from a single rack PDU.
• Daisy-Chain Networking — Up to four ePDUs can share a single network connection and IP address, reducing the number of network drops needed across a row of racks.

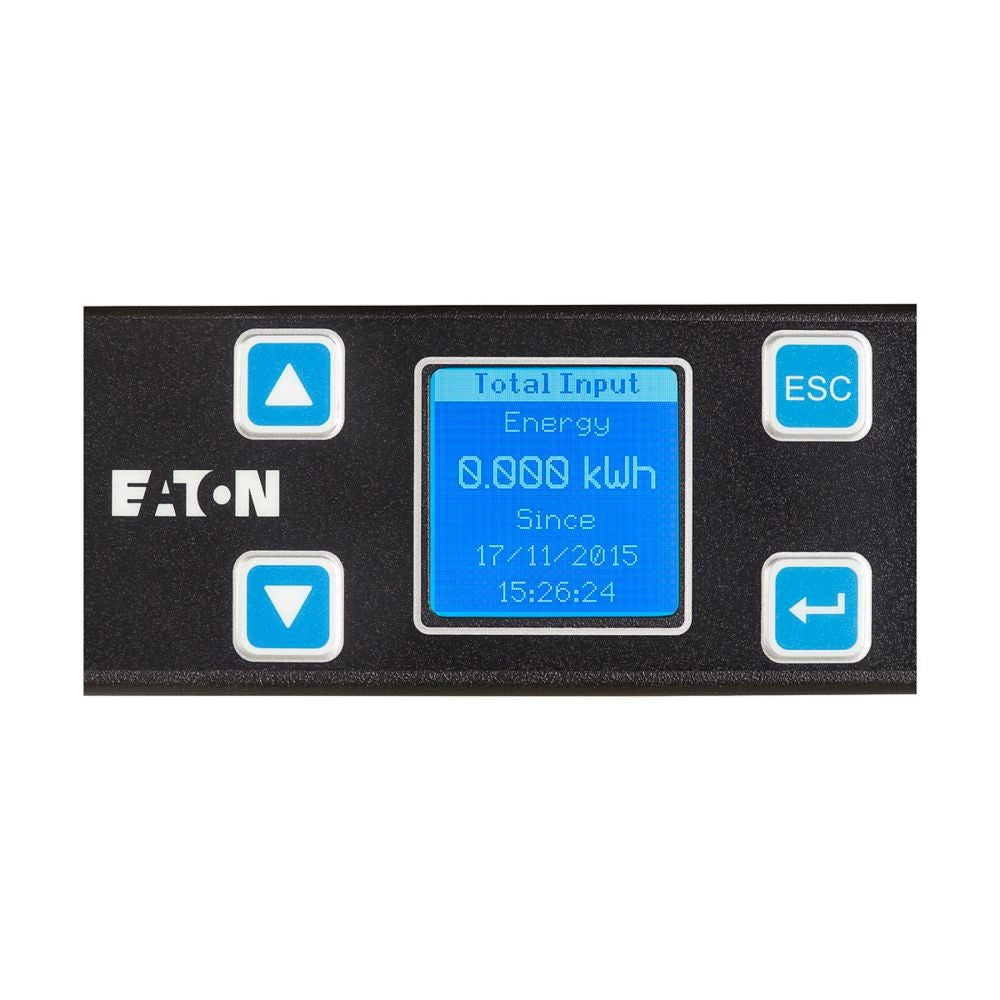

• Billing-Grade Metering Accuracy — Approximately ±1% input current accuracy gives facilities teams a dependable basis for capacity planning and chargeback reporting.
• 208V, 24A Input Capacity — The 200-240V, 24A input delivers up to 5.76 kW, suitable for higher-density server room deployments.
• L6-30P Twist-Lock Input — A locking NEMA L6-30P plug secures the input connection against accidental disconnection in active data center environments.
• 1U Rack-Mount Form Factor — The compact 1U chassis conserves rack space in fully populated server room cabinets.
• 3-Year Limited Warranty — Eaton's 3-year limited warranty supports long-term reliability planning for IT and facilities teams.

Typical Applications

• data center
• colocation cabinet
• server room

Technical Specifications

Frequently Asked Questions

What does daisy-chaining allow me to do with the EMIT06-10?

Up to four EMIT06-10 units can be daisy-chained to share a single network connection and IP address, reducing the number of network drops needed when deploying multiple PDUs in a row of racks.

What is the accuracy of the input current metering?

Eaton specifies approximately ±1% billing-grade accuracy for the input current readings on this unit.

What input circuit does this PDU require?

A dedicated 200-240V single-phase circuit rated at 24A or higher, terminated with a NEMA L6-30R receptacle to match the L6-30P input plug.

Can the C19 outlets power a network switch?

Yes, provided the switch's power cord terminates in a C20 connector; the four C19 receptacles are rated for higher-draw equipment such as switches and blade enclosures.

Does this PDU support remote outlet switching?

No. The EMIT06-10 meters total input current only and does not provide per-outlet control or switching.

Is this PDU rack-mountable in a standard 19-inch cabinet?

Yes. It is designed as a 1U horizontal rack PDU compatible with standard 19-inch racks and cabinets.

What warranty applies to the EMIT06-10?

Eaton provides a 3-year limited warranty. Contact Eaton or Creation Networks for full terms and support options.
