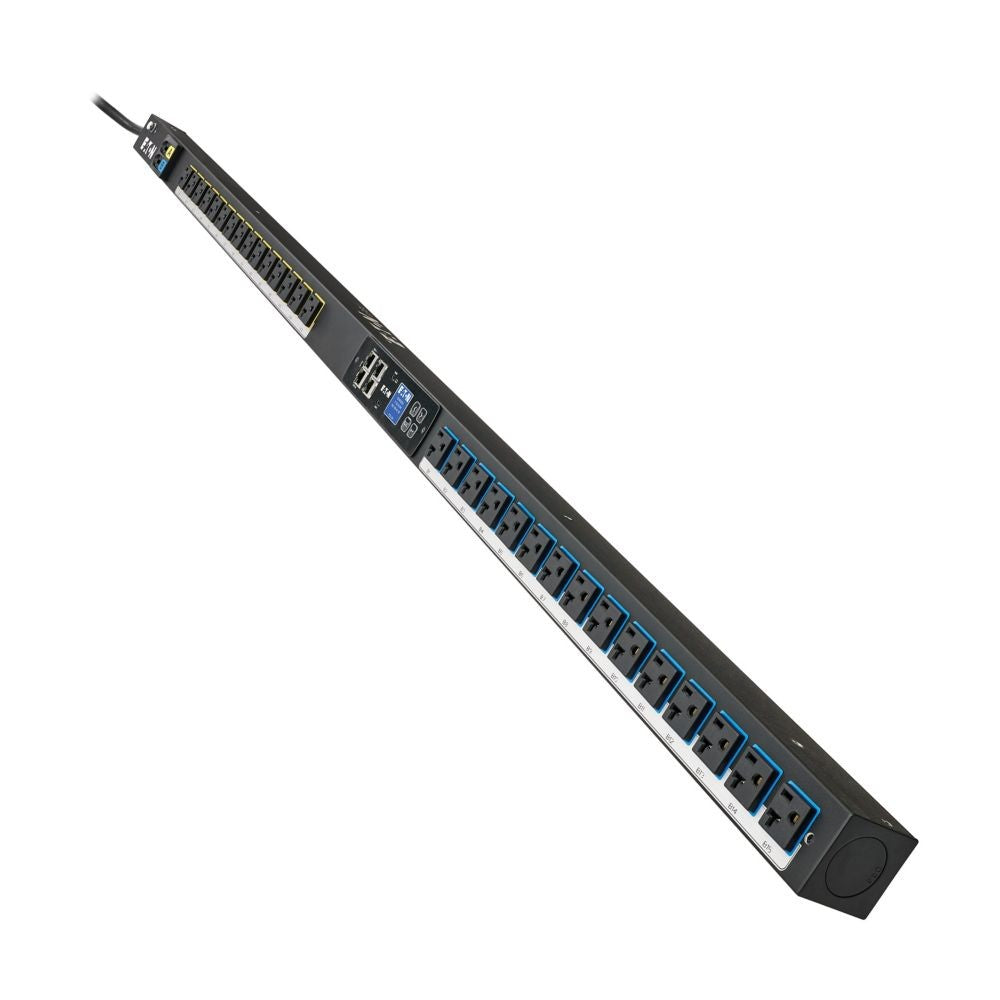

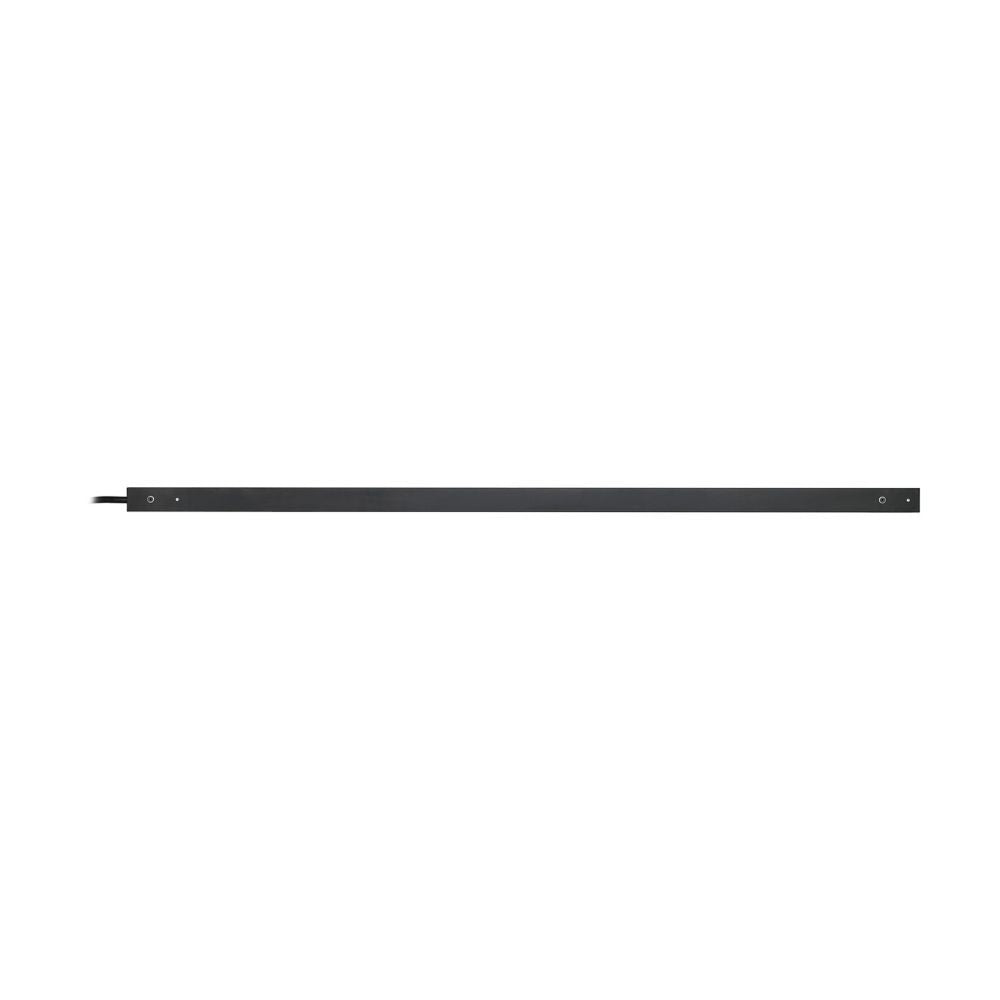

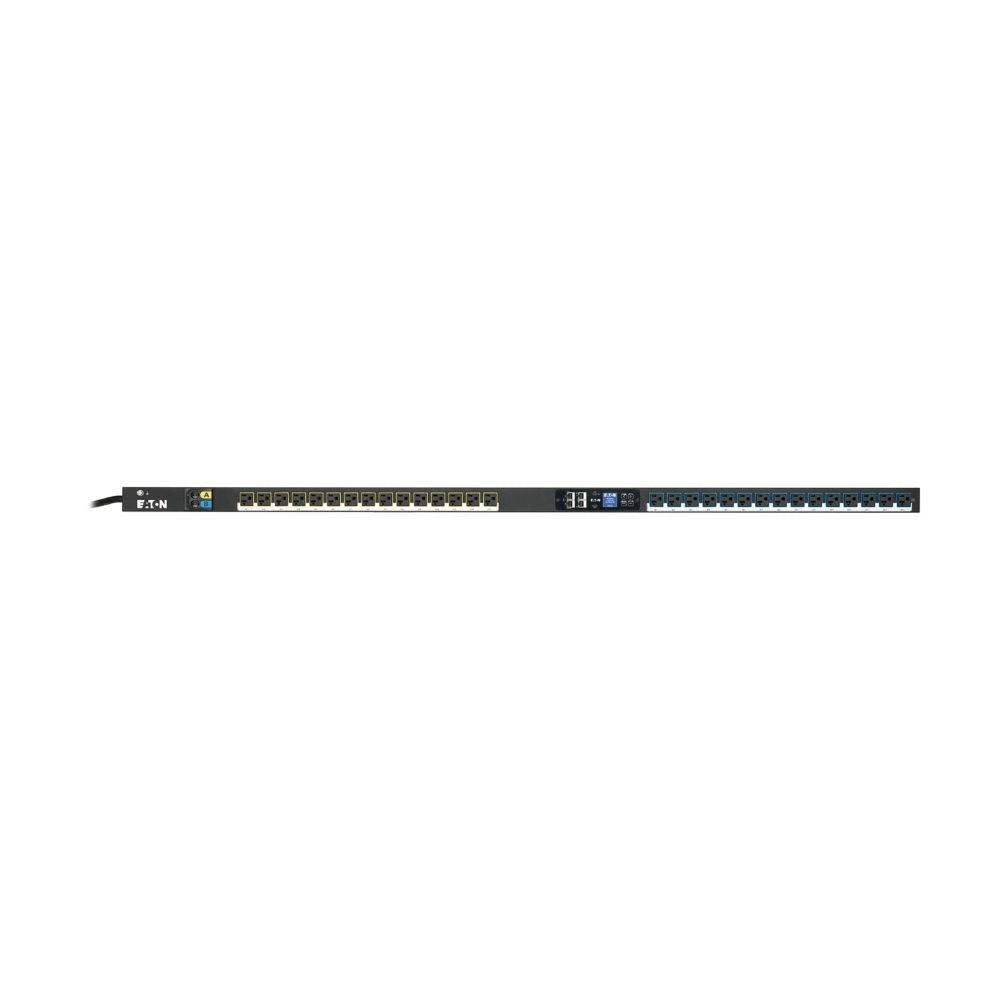

Eaton EMI102-10 – 30-Outlet Vertical Metered PDU

Product Overview

The Eaton EMI102-10 is a 0U vertical metered input PDU with 30 NEMA 5-20R outlets, built for high-density data center and colocation cabinet racks that need substantial outlet count without giving up horizontal rack space. This vertical rack PDU installation option mounts along the cabinet rail, making it a strong fit for server rooms and network closets running numerous 120V devices such as switches, servers, and AV equipment. With 24A input capacity and network-based monitoring, it supports commercial-grade power distribution deployments where circuit-level visibility is required.

Product Description

The EMI102-10 pairs a 120V, 24A single-phase input through an L5-30P twist-lock plug with 30 NEMA 5-20R output receptacles rated to 2.88 kW maximum, giving it one of the higher outlet counts in Eaton's 0U metered PDU lineup. This outlet density makes it well suited to colocation cabinets and data center racks packed with multiple lower-draw devices, from network switches and KVM appliances to AV encoders and access control hardware, where a horizontal 1U or 2U PDU would not provide enough outlets without stacking units. As a 0U vertical PDU, it mounts to the rear or side rail of a standard cabinet rather than occupying front rack space, which is a common design pattern in dense server room and network closet installations where every horizontal rack unit is reserved for active equipment. At approximately 66.5 inches tall, the unit runs the height of a typical 42U rack, distributing outlet access evenly from top to bottom rather than concentrating it in a single rack unit. The EMI102-10 includes Ethernet connectivity alongside RS-232 serial, allowing metered load data to be reported to a network monitoring platform for remote circuit visibility, which reduces the need for on-site checks in colocation or multi-tenant facilities. Because it is a metered rather than switched or managed unit, it reports aggregate input load but does not provide remote outlet-level control; facilities that need to power-cycle individual devices remotely should look at Eaton's managed 0U PDU line. TAA compliance supports use in government space procurement as well as commercial deployments with domestic sourcing requirements. The L5-30P input and 30A-rated internal design are intended for a dedicated 30A branch circuit, consistent with standard data center electrical practice for high-outlet-count PDUs.

Key Features

• 30 NEMA 5-20R Outlets — High outlet density supports densely populated racks without requiring multiple PDUs.
• 0U Vertical Form Factor — Mounts along the cabinet rail, preserving all horizontal rack units for active equipment.
• 2.88 kW Maximum Output — Rated for racks with numerous lower-draw devices such as switches, KVMs, and AV equipment.
• L5-30P Twist-Lock Input Plug — Connects securely to a dedicated 30A branch circuit for reliable power delivery.
• Ethernet and RS-232 Connectivity — Enables remote load monitoring through a network platform rather than requiring an on-site read.
• TAA Compliant — Supports government space and other regulated procurement requirements.
• UL Listed Construction — Meets commercial electrical standards for data center and colocation deployment.
• 3-Year Manufacturer Warranty — Backed by Eaton's standard warranty coverage.

Typical Applications

• data center
• colocation cabinet
• server room
• network closet
• government space

Technical Specifications

Frequently Asked Questions

How many outlets does the EMI102-10 provide?

It provides 30 NEMA 5-20R outlets, one of the higher outlet counts available in Eaton's 0U metered rack PDU line.

What circuit is required to power this PDU?

A dedicated 120V, 30A single-phase branch circuit terminated with a receptacle matching the NEMA L5-30P input plug.

Can I monitor this PDU's load remotely?

Yes, it includes an Ethernet interface and RS-232 serial connectivity for reporting metered load data to a network monitoring platform.

Does this PDU support remote outlet switching?

No. It is a metered input PDU that reports total load but does not switch outlets remotely. For remote power cycling, consider Eaton's managed PDU series.

Is the EMI102-10 a good fit for a dense colocation cabinet?

Yes, its 30-outlet count and 0U vertical form factor make it well suited to colocation cabinets and data center racks with numerous lower-draw devices.

Is this PDU compliant for government procurement?

Yes, it is TAA compliant, supporting use in government space and other regulated purchasing environments.

What warranty applies to the EMI102-10?

Eaton provides a 3-year limited warranty. Contact Creation Networks for complete terms and installation support.
