Eaton EMAGLFC4C4C4C4L – 3-Phase Managed HDX PDU, C39 Outlets

Product Overview

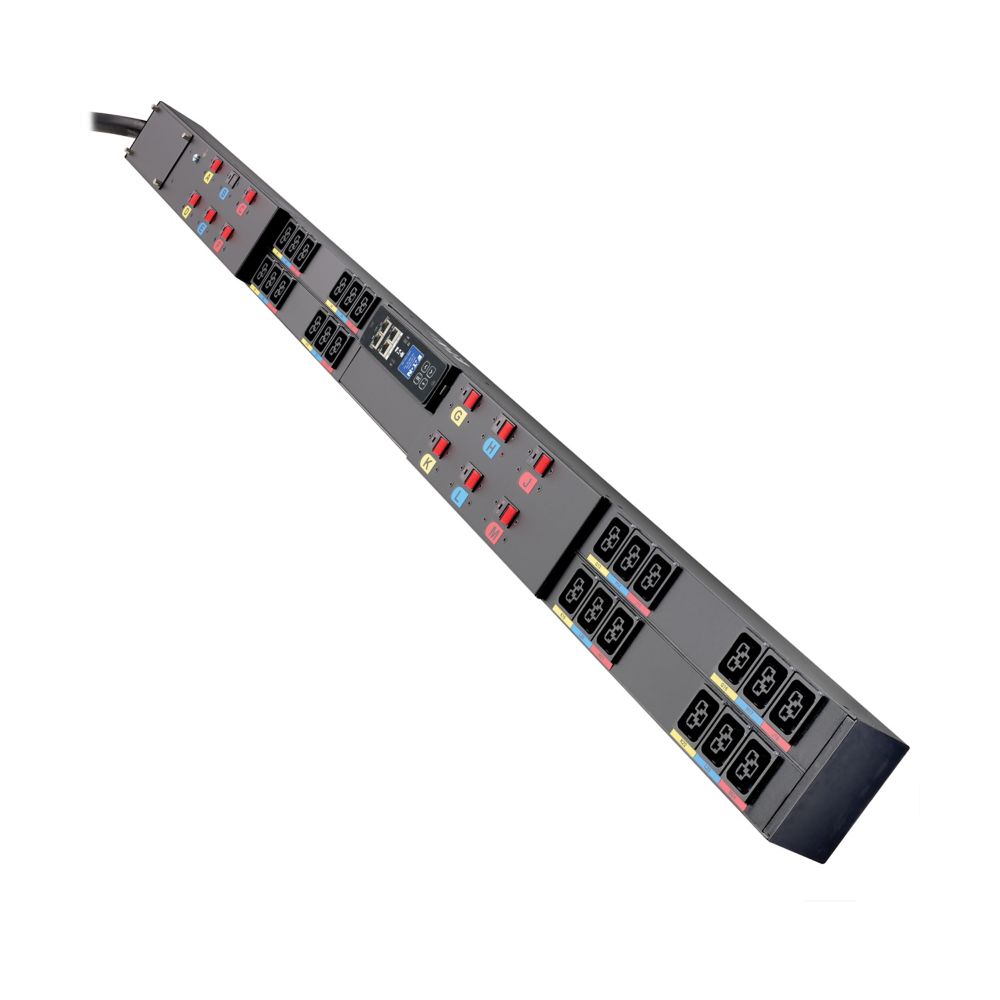

The Eaton EMAGLFC4C4C4C4L is a 3-phase managed rack PDU from Eaton's HDX (high-density) G4 platform, a configurator-built series aimed at high-power server, GPU, and data center racks. Based on Eaton's naming convention, the EMAGLF prefix identifies a managed HDX PDU in the 208V 3-phase family, while the repeating C4 outlet code indicates a bank of IEC 60320 C39 combo outlets across four load branches. This model targets facilities that need a managed PDU with high-current C39 receptacles for demanding compute or networking equipment rather than a mix of standard C13 outlets. Reference the product photo for the unit's 0U vertical rack-mount profile.

Product Description

Eaton's HDX rack PDU family, of which the EMAGLF configurator series is a part, is built for racks running dense server, storage, or GPU/AI compute clusters that draw more current per outlet than a typical C13-only PDU can support. Comparable EMAGLF-series units, such as the EMAGLFA5A5A5A5L, ship with 208V 3-phase input at roughly 48A and around 17kW of capacity, a 0U vertical chassis near 76 inches tall, and a 6 ft. power cord — figures we cite here as representative of the family rather than confirmed exact values for this specific SKU. The all-C39 outlet configuration signaled by the C4C4C4C4 suffix is consistent with other Eaton HDX PDUs in this line that drop C13 receptacles entirely in favor of higher-capacity C39 combo outlets, useful for racks populated primarily with switches, storage arrays, or GPU servers using C20-style power inlets.

As a managed PDU, this series provides outlet-level monitoring, metering, and remote switching through a hot-swappable Gigabit network module, letting data center staff track load per branch circuit and remotely power-cycle equipment. Because Eaton has not published a dedicated public datasheet for the exact EMAGLFC4C4C4C4L configurator code at the time of writing, buyers evaluating this SKU for a specific deployment should confirm exact input amperage, kW rating, and physical dimensions against an Eaton-issued datasheet or configurator export before finalizing a rack power plan.

Key Features

• HDX Platform Design — Built for high-density compute and networking racks that exceed standard PDU load profiles.
• All-C39 Outlet Bank — Configured for equipment using C39 combo receptacles rather than standard C13s.
• 3-Phase Input — Balances load across three phases for higher aggregate rack capacity.
• Managed Monitoring — Outlet-level metering and remote switching via network connection.
• 0U Vertical Form Factor — Rear-rail mounting preserves usable rack unit space.
• Hot-Swappable Network Module — Simplifies network card replacement without full PDU downtime.

Technical Specifications
