Eaton EMAGLFC3C3C3C3L – 3-Phase Managed HDX Rack PDU

Product Overview

The Eaton EMAGLFC3C3C3C3L is a 3-phase managed HDX rack PDU built for data center and server room racks that need granular, outlet-level power monitoring across multiple load banks. As a managed rack PDU, it gives IT and facilities teams real-time visibility into current draw, voltage, and power consumption per outlet and per bank, which is essential for capacity planning in high-density colocation and enterprise data center deployments. This configuration uses four identical outlet banks (the repeating "C3C3C3C3" pattern), a layout common on Eaton's G4 configurator for facilities standardizing on a single outlet type across the rack.

Product Description

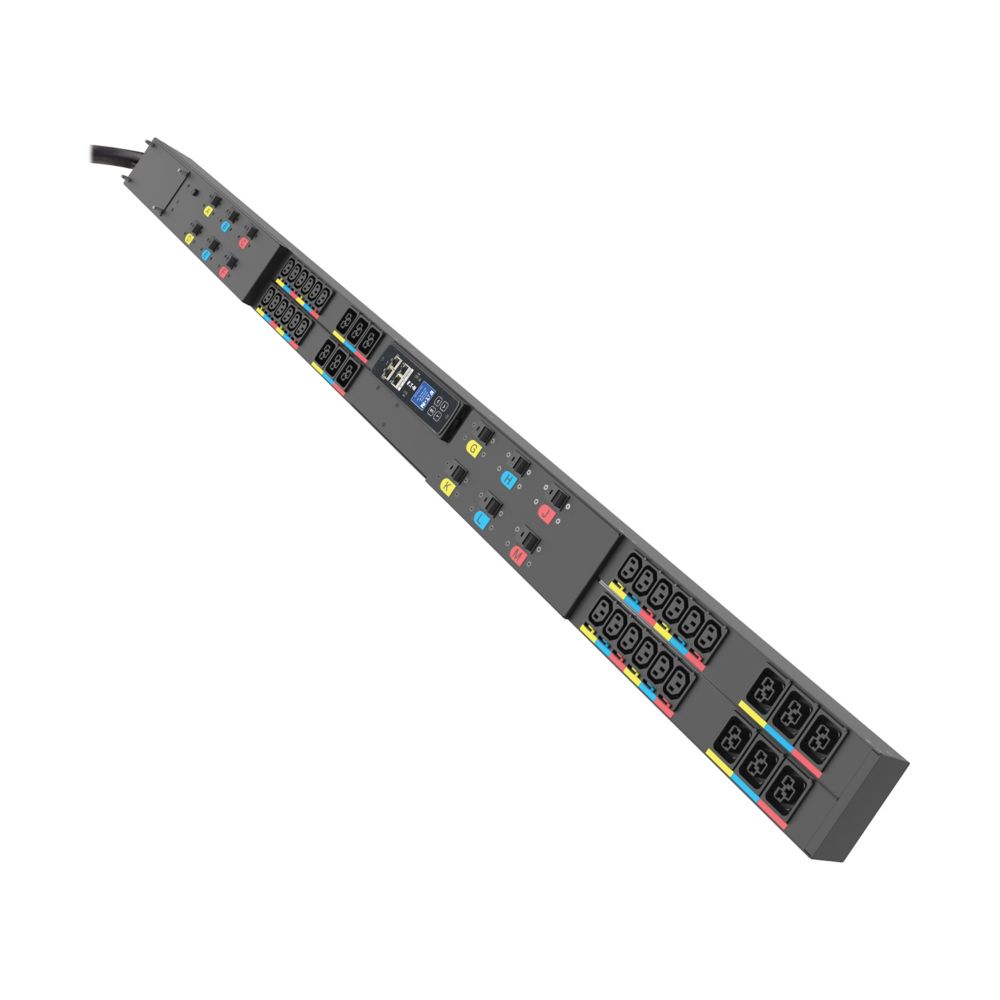

Eaton's Managed HDX Rack PDU G4 platform (the EMAG prefix) is designed for commercial AV/IT environments where uptime and remote manageability matter as much as raw outlet count. This unit distributes 3-phase power to four separate, individually breakered outlet banks, helping isolate faults so a single overloaded circuit does not take down an entire rack. Reference the product photo for the exact outlet layout, connector style, and 0U vertical chassis form factor typical of this Eaton PDU family.

Managed PDUs in this series are built around Eaton's network management module, which typically supports a color display, SNMP/HTTP remote monitoring, and integration with data center infrastructure management (DCIM) software. For AV integrators and IT managers running mixed racks of switches, servers, and AV processing gear, this kind of outlet-bank segmentation simplifies troubleshooting and load balancing across phases.

Because the exact amperage, voltage, and outlet count for the EMAGLFC3C3C3C3L configurator code are not published in Eaton's standard catalog listings, buyers should confirm the precise electrical rating and outlet mix directly with Eaton or an authorized distributor prior to installation, particularly for high-density server room or data center rollouts where circuit sizing is critical.

Key Features

• Managed HDX Rack PDU Platform — Part of Eaton's G4 managed PDU family, built for real-time monitoring in data center and server room racks.
• Four Outlet Load Banks — Repeating bank configuration (C3C3C3C3) segments outlets for easier fault isolation and load balancing.
• 3-Phase Power Distribution — Distributes 3-phase input across multiple banks for higher-density rack power needs.
• Individually Breakered Banks — Helps prevent a single overloaded bank from taking down the entire PDU.
• Remote Monitoring Ready — Supports Eaton's managed PDU network module for outlet-level current and power visibility.
• Rack PDU Form Factor — 0U-style vertical rack PDU chassis typical of the Eaton EMAG configurator series (confirm exact dimensions with Eaton).
