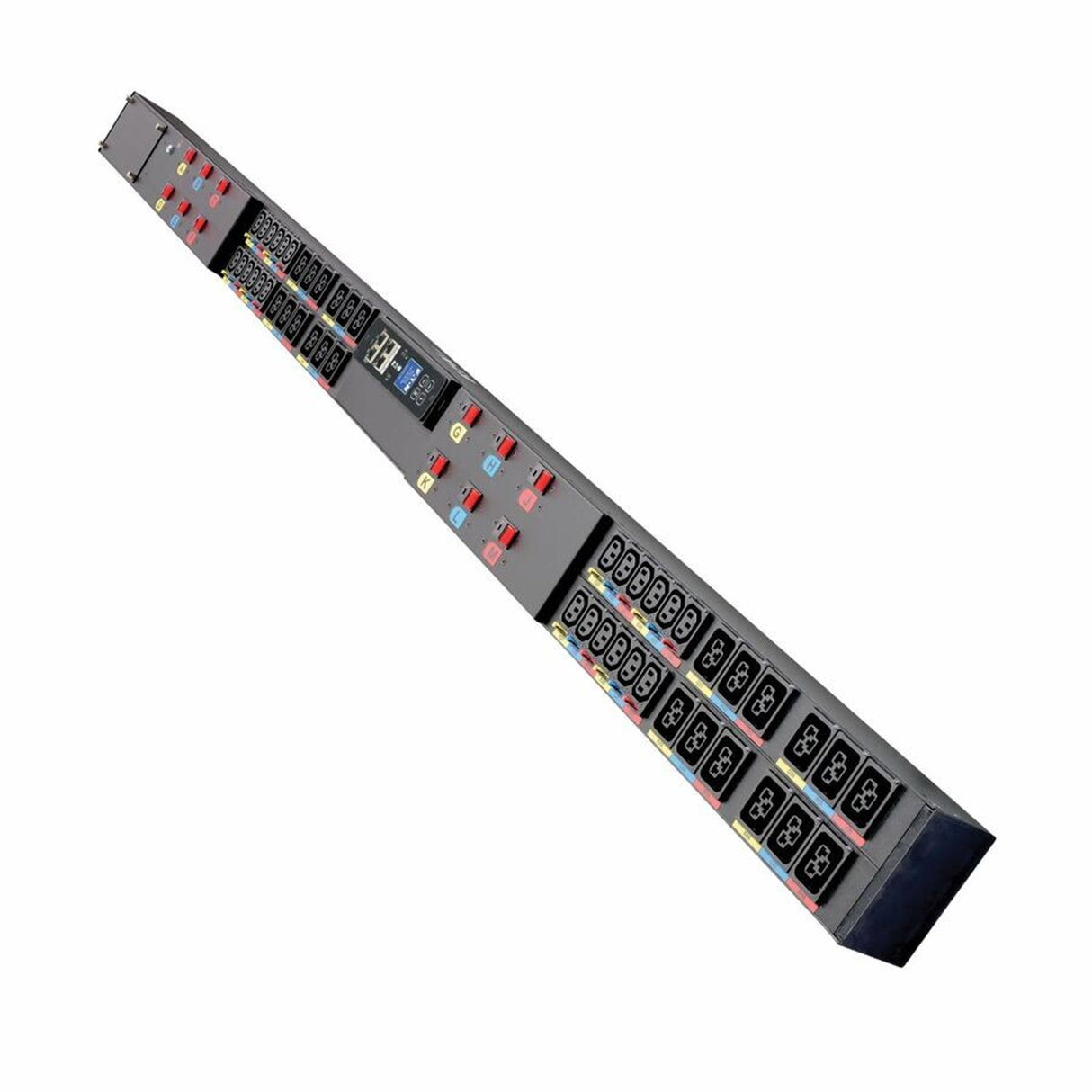

Eaton EMAGECA5A5A5A5L – 3-Phase Managed HDX Rack PDU G4

Product Overview

The Eaton EMAGECA5A5A5A5L is a 3-phase managed HDX rack PDU built for enterprise data center and colocation deployments that need high power density in a single rack. Operating at 240/415V with 48 outlets, it is designed for GPU-intensive workloads such as HPC, supercomputing, generative AI and high-frequency trading. This managed PDU gives data center operators granular outlet-level control and monitoring for demanding, high-density rack power distribution.

Product Description

The EMAGECA5A5A5A5L HDX Rack PDU G4 is built for deployment inside a single rack in an enterprise data center, colocation data center, or distributed IT infrastructure environment. It is equipped to meet diverse and demanding rack power needs, delivering enterprise-quality, high-density power distribution for GPU-heavy workloads where power draw per rack is unusually high. The unit features 24 C13 outlets and 24 C39 combo outlets, and the combo outlets accept both C14 and C20 connectors, which adds flexibility during equipment changes and reduces the number of distinct PDU models a data center needs to stock and install. Managed capability at this scale gives facilities and IT teams real-time visibility into power draw at the rack and outlet level, supporting capacity planning in racks running compute-dense servers. The 240/415V 3-phase input is suited to facilities running higher-voltage distribution to reduce current draw and cabling size at scale. For integrators standardizing on a single PDU family across many racks, the combo outlet design reduces the SKU count needed to support mixed equipment.

Key Features

• 3-Phase 240/415V Input — Supports high-density rack power delivery while keeping per-phase current draw manageable.
• 48 Total Outlets — 24 C13 and 24 C39 combo outlets accommodate a wide mix of connected equipment in one PDU.
• Combo Outlet Flexibility — C39 combo outlets accept both C14 and C20 plugs, reducing the number of PDU SKUs required across a rack fleet.
• Managed Monitoring — Provides real-time power visibility suited to GPU-intensive, high-power-density racks.
• HDX Platform Design — Built for enterprise and colocation data centers running demanding compute workloads such as HPC and generative AI.

Typical Applications

• Enterprise data center racks
• Colocation data center suites
• High-performance computing and GPU compute clusters
• Distributed IT infrastructure environments

Technical Specifications

Frequently Asked Questions

What kind of equipment can I connect to the combo outlets?

The C39 combo outlets accept both C14 and C20 plugs, so you can mix standard servers and higher-current equipment on the same PDU without separate outlet types.

Is this PDU suitable for GPU or HPC racks?

Yes, the HDX Rack PDU G4 platform is built for high power density racks, including GPU-intensive HPC, generative AI and high-frequency trading deployments.

How does installation work in a standard data center rack?

It is designed for deployment within a single rack in enterprise or colocation data center environments as part of standard rack power infrastructure.

Does this PDU support remote monitoring?

It is a managed PDU, providing power monitoring capability appropriate for high-density, closely managed data center racks.

What warranty does Eaton provide on this PDU?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Can Creation Networks help plan rack power for a GPU deployment?

Yes, our team can help you size 3-phase PDU capacity and outlet mix for compute-dense rack builds.
