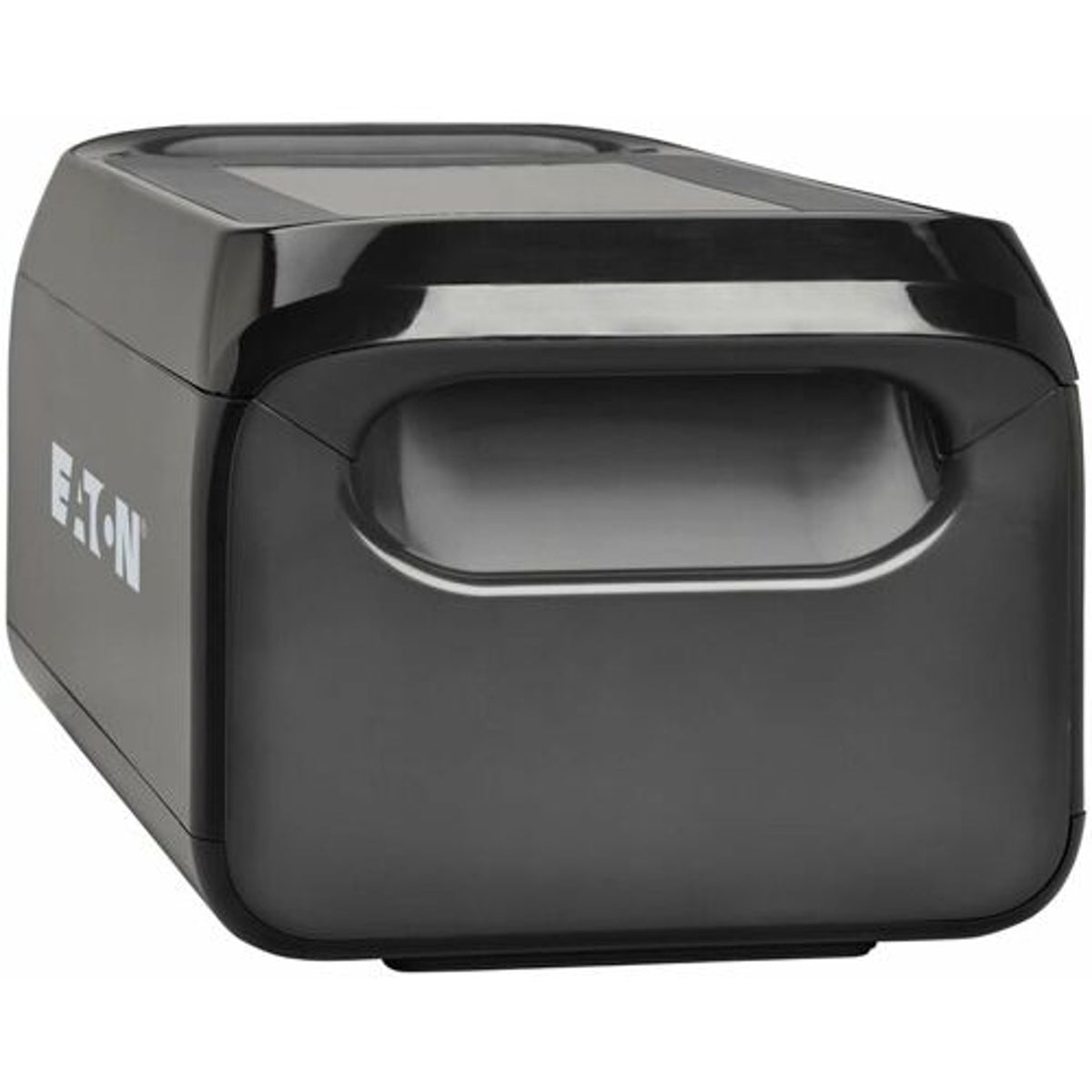

Eaton BPGC2500L – 2500Wh Battery Expansion for GC3000L
Product Overview
The Eaton BPGC2500L is a 2500Wh battery pack expansion built to extend the runtime of compatible Eaton portable power stations, such as the GC3000L (sold separately). Using a lithium iron phosphate (LiFePO4) battery, it delivers pure sine wave power to connected electronics, making it a practical addition for facilities and integrators that need longer backup runtime without replacing existing power station hardware. This expansion module is designed for daisy-chaining, giving operators a scalable path to significantly extended runtime.
Product Description
The BPGC2500L offers extended battery runtime when used in conjunction with certain Eaton portable power stations, such as the GC3000L. It features a lithium iron phosphate (LiFePO4) battery that provides pure sine wave power to connected electronics, and cabling is included for connection to the base power station. This battery expansion module adds up to 2.5 kWh per unit when connected to a compatible portable power station. When the maximum number of six BPGC2500L battery pack extensions are daisy-chained to a portable power station, the combined system reaches a total of 17.5 kWh, including the power station's internal battery, substantially extending runtime for connected equipment during an outage or off-grid deployment. LEDs on the unit indicate state of charge (SOC), voltage, temperature, alarm, and other status information, giving operators a quick visual check on the pack's condition without needing to connect a separate monitoring tool. This makes the BPGC2500L a useful addition for facilities, event production, or field deployments where extended backup runtime matters more than a single compact unit.
Key Features
- 2.5 kWh Capacity per Unit — Adds substantial runtime when connected to a compatible portable power station.
- LiFePO4 Battery Chemistry — Delivers pure sine wave power with a battery chemistry known for stability and longevity.
- Daisy-Chain Capable — Up to six units can be chained for a combined 17.5 kWh system with the GC3000L.
- Status LEDs — Display state of charge, voltage, temperature, and alarm status at a glance.
- Included Cabling — Connects directly to compatible Eaton portable power stations without separately sourced cables.
Typical Applications
- Facilities requiring extended portable backup power
- Event production and field deployments
- Data center or server room emergency power supplementation
Technical Specifications
| Model | BPGC2500L |
| Capacity | 2500Wh (2.5 kWh) per unit |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Compatible System | Eaton GC3000L portable power station (sold separately) |
| Max Daisy-Chain | Up to 6 units, 17.5 kWh combined with GC3000L |
| Monitoring | LED indicators for SOC, voltage, temperature, alarm |
Frequently Asked Questions
Does the BPGC2500L work as a standalone unit?
No, it is designed as an expansion battery used in conjunction with a compatible Eaton portable power station such as the GC3000L, which is sold separately.
How many battery packs can be connected at once?
Up to six BPGC2500L units can be daisy-chained to a GC3000L, reaching a combined total of 17.5 kWh including the power station's internal battery.
What cabling is required to connect this pack?
Cabling is included with the BPGC2500L for connection to the compatible portable power station.
How can I check the battery's status?
Onboard LEDs display state of charge, voltage, temperature, alarm, and other status information.
What warranty does Eaton provide on this battery pack?
Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
Can Creation Networks help size a battery expansion setup for my backup power needs?
Yes, our team can help calculate combined runtime and daisy-chain configuration for your GC3000L deployment.
