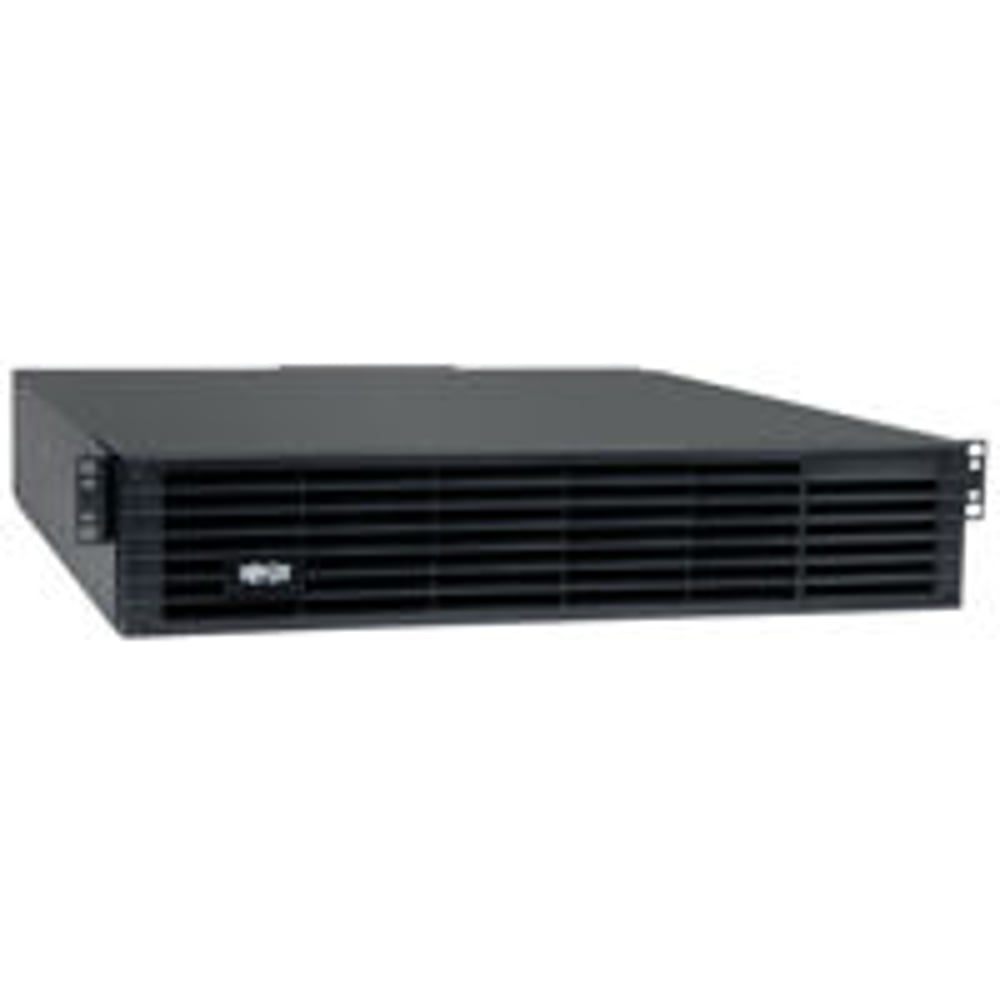

Eaton BP48V27-2US – 48VDC External Battery Pack, 2U Rack/Tower
Product Overview
The Eaton BP48V27-2US is a 48VDC external battery pack built to extend runtime on select AVR online UPS systems, such as the SMX2200XLRT2U and SM2200RMXL2UP series. As an external battery pack for online UPS deployments in AV racks and network equipment rooms, it automatically configures to the host UPS and daisy-chains with additional packs for scalable backup power. This 2U rack tower battery pack for UPS expansion is a practical fit for facilities running always-on online double-conversion UPS systems that require longer runtime than the internal battery alone provides.
Product Description
The BP48V27-2US connects to compatible 48V AVR online UPS systems via a blue 2-point DC connector, automatically configuring itself to the host UPS without manual programming. This 48VDC external battery pack for AVR online UPS installations is built in a 2U rack/tower form factor with included hardware for 4-post 19-inch rackmount installation, and optional adapters are available for 2-post rack or wall mounting where rack space is constrained. A daisy-chain connector allows additional battery packs to be added as power requirements grow, giving AV integrators and facilities managers a scalable path to extended runtime for boardroom AV racks, training room equipment closets, or auditorium control rooms running on online UPS protection. The unit requires a minimum 26-inch rack depth, so this extended runtime battery for network rack UPS deployment should be confirmed against available rack space before installation. Typical battery lifespan is 4-6 years under normal North American operating conditions, and the unit carries CE and RoHS compliance for use in commercial and institutional facilities.
Key Features
- Auto-Configuring Connection — Automatically configures to the host UPS without manual setup when connected via the blue 2-point DC connector.
- Daisy-Chain Expansion — Supports connecting additional battery packs for further runtime as power needs increase.
- 2U Rack/Tower Form Factor — Includes hardware for 4-post 19-inch rackmount installation, with optional 2-post and wall-mount adapters.
- Broad AVR Online UPS Compatibility — Designed for select 48V AVR online UPS systems including SMX2200XLRT2U and SM2200RMXL2UP series.
- Heavy-Gauge DC Cabling — Handles sustained discharge current during extended outages.
- 2-Year U.S./Canada Warranty — Backed by a 2-year limited warranty domestically and 1-year internationally.
- CE and RoHS Compliant — Meets standard compliance requirements for commercial and institutional installations.
Typical Applications
- Boardroom and conference room AV rack UPS runtime extension
- Training room and multi-purpose room equipment closets running online UPS protection
- Auditorium AV control room backup power expansion
Technical Specifications
| Specification | Value |
|---|---|
| System Voltage | 48 VDC |
| Connector | Blue 2-point DC connector |
| Compatible UPS | SM2200RMXL2UP, SM2200RMXL2UPN, SMART5000RT3U, SMART5000XFMRXL, SMX2200XLRT2U, SMX2200XLRT2UN |
| Form Factor | 2U rack/tower |
| Dimensions (H x W x D) | 3.43" x 17.32" x 22.6" |
| Weight | 88.1 lbs |
| Minimum Rack Depth | 26 inches |
| Typical Battery Lifespan | 4-6 years (North America) |
| Compliance | CE, RoHS |
| Warranty | 2-year limited (U.S./Canada), 1-year (international) |
Frequently Asked Questions
Which UPS systems is the BP48V27-2US compatible with?
It is designed for select 48V AVR online UPS systems, including the SMX2200XLRT2U, SMX2200XLRT2UN, SM2200RMXL2UP, SM2200RMXL2UPN, SMART5000RT3U, and SMART5000XFMRXL. Confirm your exact UPS model before ordering.
How much rack depth do I need to install this battery pack?
The unit requires a minimum of 26 inches of usable rack depth. Measure your enclosure before planning installation, particularly in shallower AV racks.
Does this battery pack require manual configuration when connected?
No. The BP48V27-2US automatically configures itself to the host UPS through the blue 2-point DC connector, without requiring manual programming.
Can additional battery packs be added later for more runtime?
Yes. The unit includes a daisy-chain connector that supports adding further battery packs as runtime requirements grow.
What is the expected lifespan of the batteries in this pack?
Typical battery lifespan is 4-6 years under normal North American operating conditions, depending on ambient temperature and discharge frequency.
What warranty applies to the BP48V27-2US?
The unit carries a 2-year limited warranty in the U.S. and Canada, and a 1-year limited warranty internationally.
Can Creation Networks verify compatibility with our existing UPS before we order?
Yes. Provide your UPS model number to Creation Networks and we can confirm whether the BP48V27-2US is the correct battery pack for your system.
