Eaton B110-SP-CAT-OD2 – Outdoor PoE Surge Protector
Product Overview

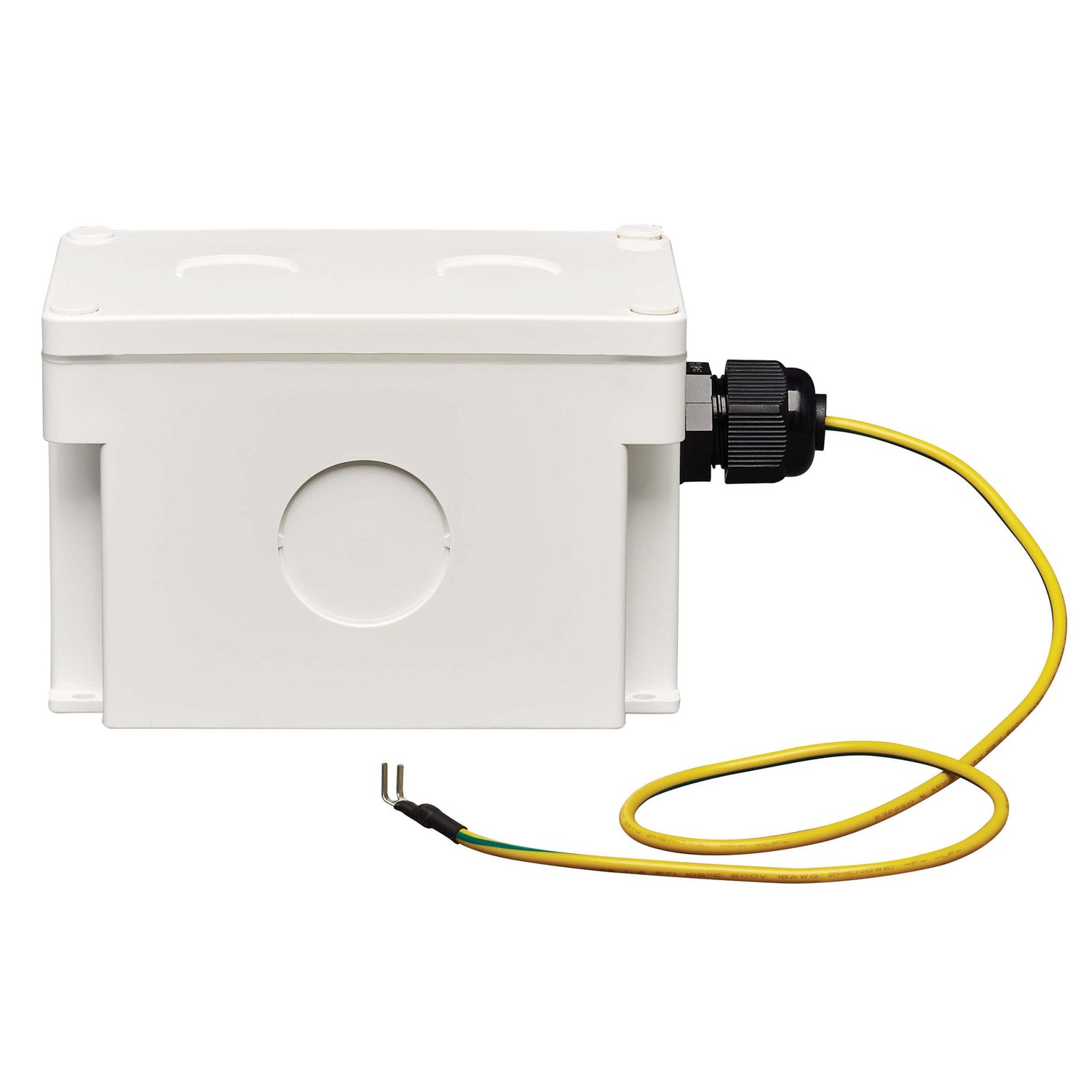

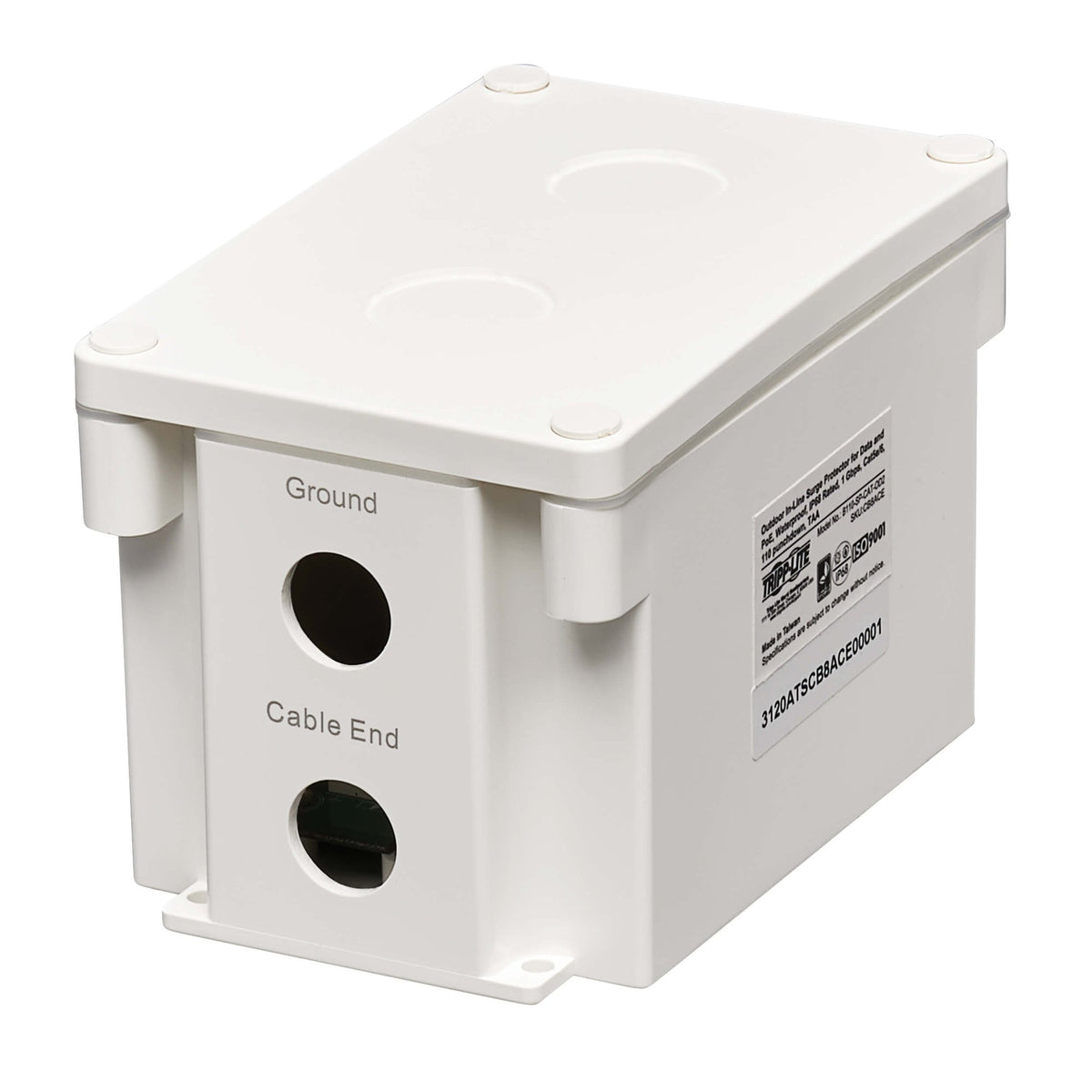

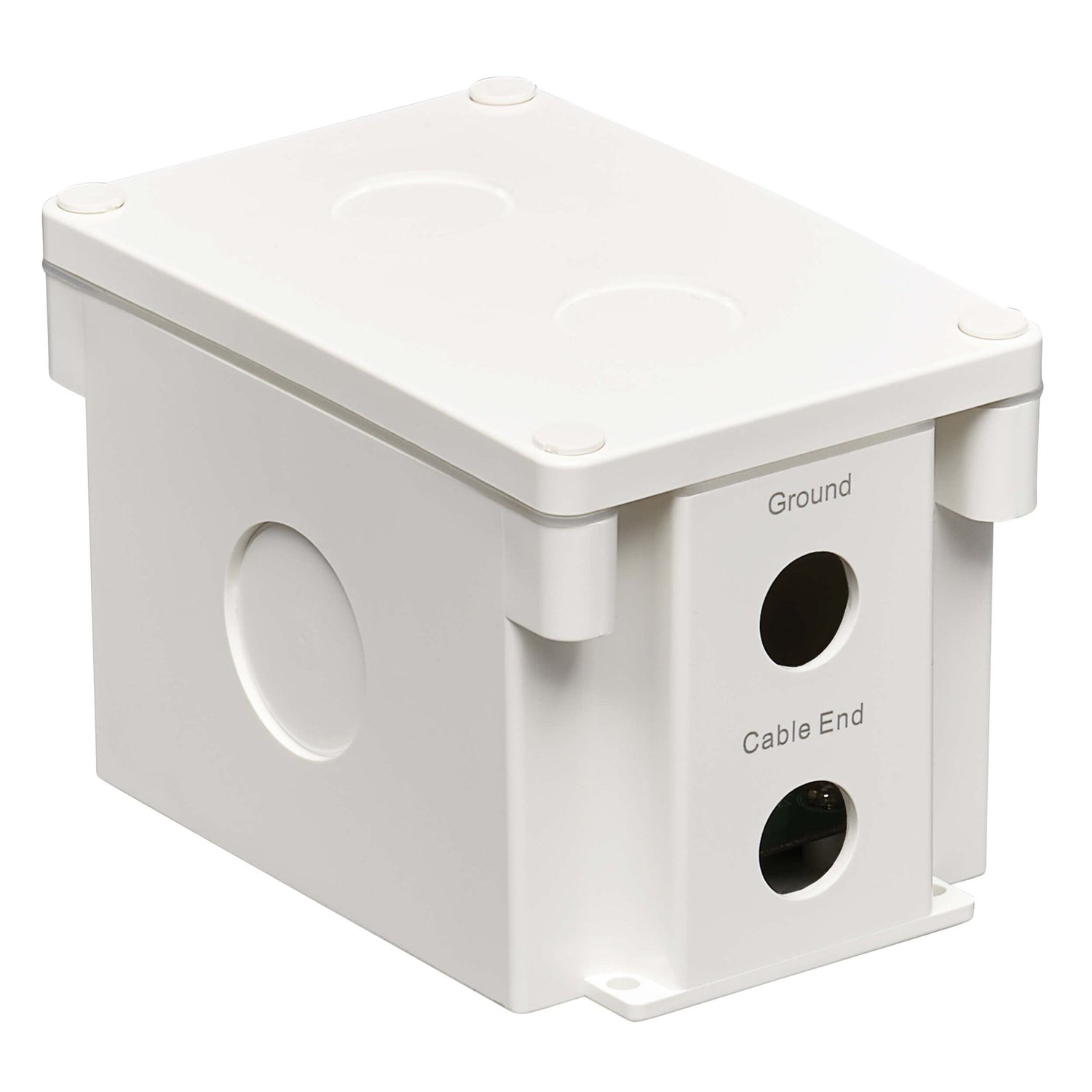

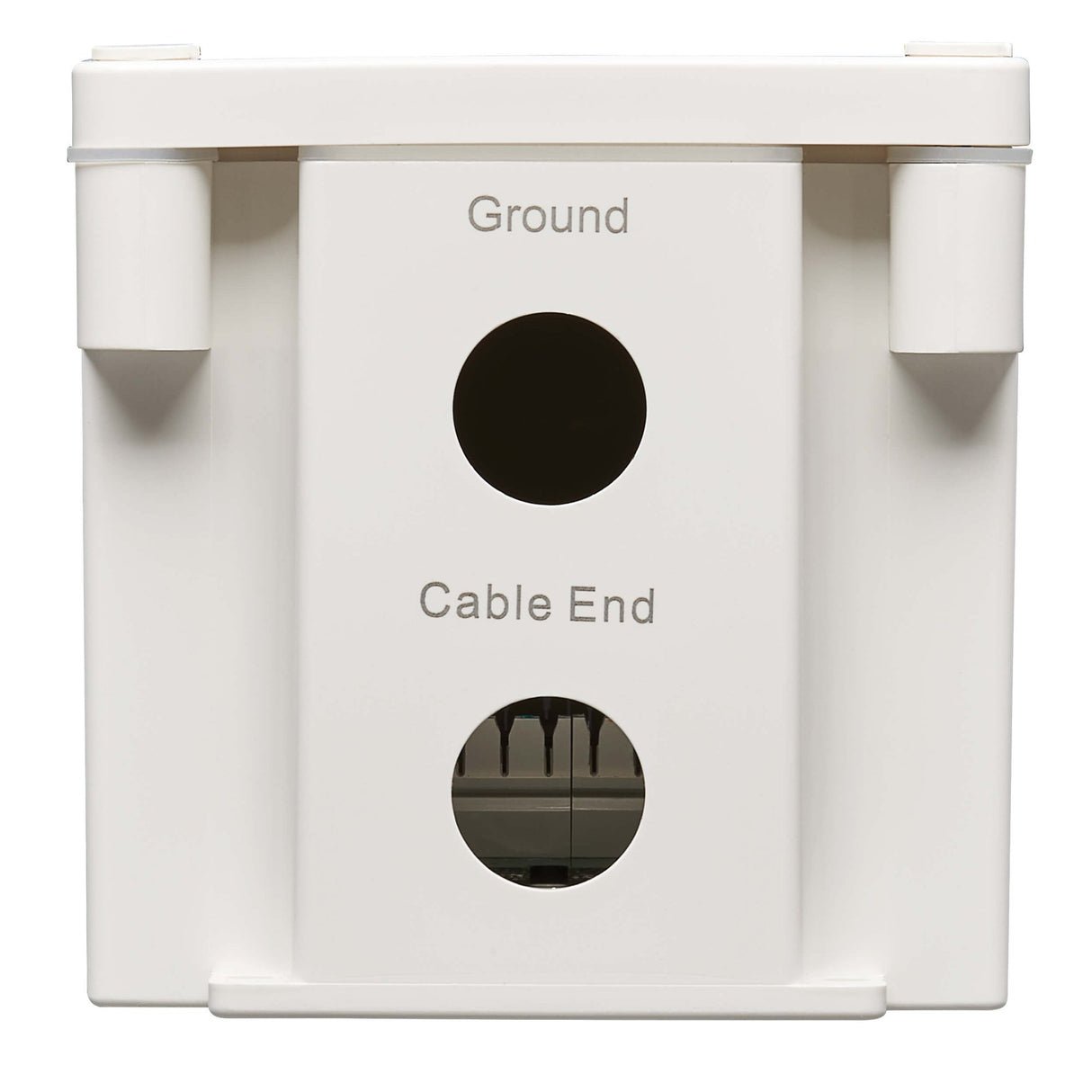

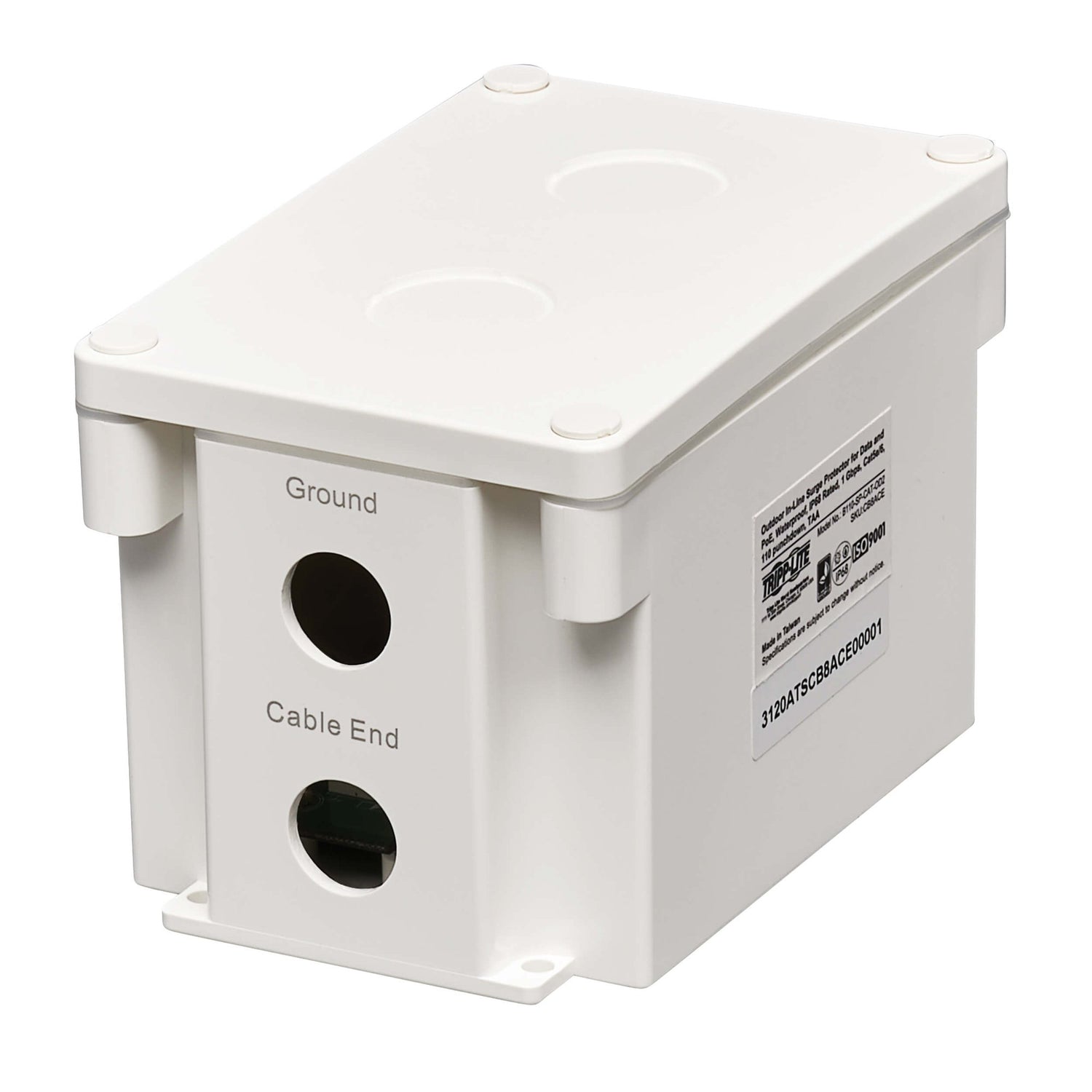

The Eaton B110-SP-CAT-OD2 is an outdoor in-line PoE surge protector rated IP68, built for network installations that run Cat5e/6 cabling to wireless access points, IP cameras, and other PoE devices exposed to weather. This surge protector installs in-line on the network run, protecting equipment from damage caused by power surges, electrostatic discharge (ESD), and cable discharge events. It suits integrators running structured cabling to rooftop, exterior, or otherwise exposed network endpoints where a standard indoor surge protector is not weather-rated.
Product Description
Built for both indoor and outdoor network equipment, the B110-SP-CAT-OD2 supports 1 Gbps Cat5e/6 connections and both mid-span and end-span PoE, making it compatible with the wide majority of PoE-powered devices used in security, wireless, and networking installations. Its 110 punch-down termination integrates with standard structured cabling practices, and the unit is IEC compliant and TAA compliant for use in regulated commercial and government projects.

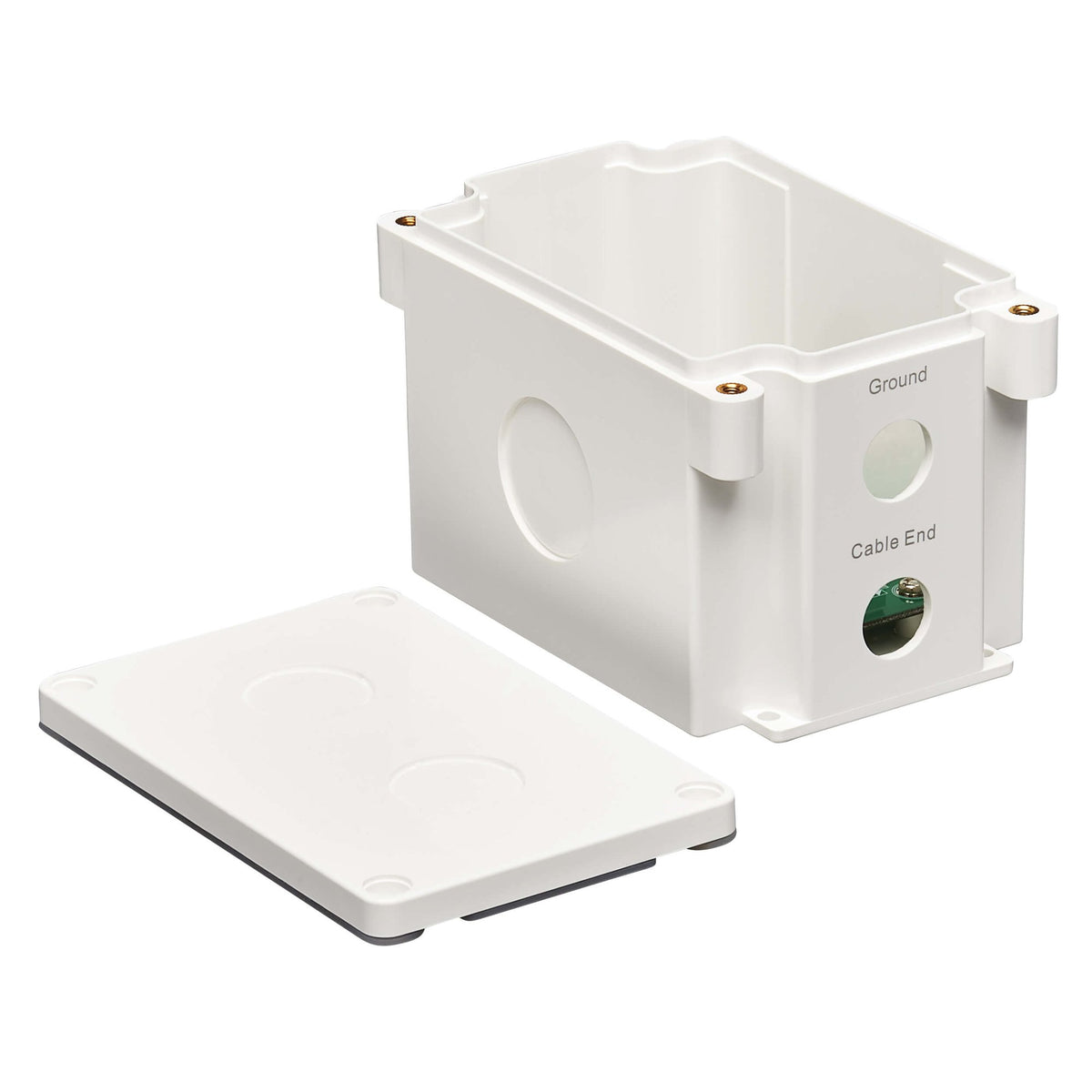

The housing's IP68 rating means the surge protector is fully protected against dust ingress and can endure immersion in 1.5 meters of water for up to 60 minutes without damage or performance decline, a level of protection well suited to rooftop, exterior wall, or underground enclosure installations. Integrators commonly specify this unit ahead of exterior-mounted wireless access points, routers, bridges, and IP cameras in home, corporate, and campus security systems where the network run is exposed to lightning-induced or ESD surge events.
Key Features
- IP68 Rated Housing — Withstands full dust ingress protection and immersion in 1.5 meters of water for up to 60 minutes.
- 1 Gbps Cat5e/6 Support — Passes gigabit network traffic through the in-line surge protector without a bottleneck.
- Mid-Span and End-Span PoE — Compatible with both common PoE injection methods used by network equipment.

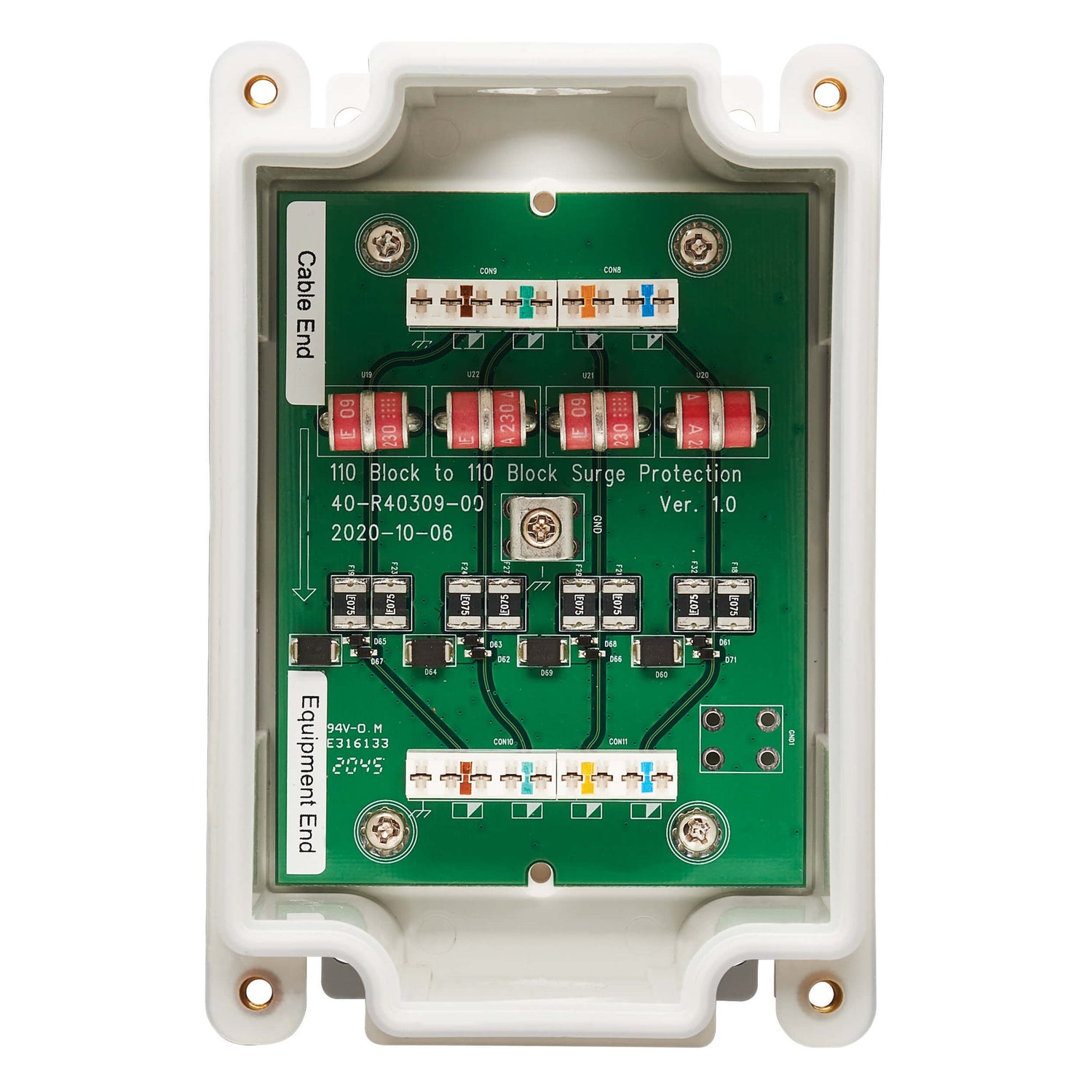

- 110 Punch Down Termination — Integrates with standard structured cabling installation practices.
- TAA Compliant, IEC Compliant — Suited for regulated commercial, campus, and government network projects.
Technical Specifications
| Cabling Support | Cat5e/6, 1 Gbps |
| PoE Support | Mid-span and end-span PoE |
| Termination | 110 punch down |
| Ingress Rating | IP68 (dust-tight; withstands 1.5m water immersion up to 60 minutes) |
| Compliance | IEC Compliant, TAA Compliant |
