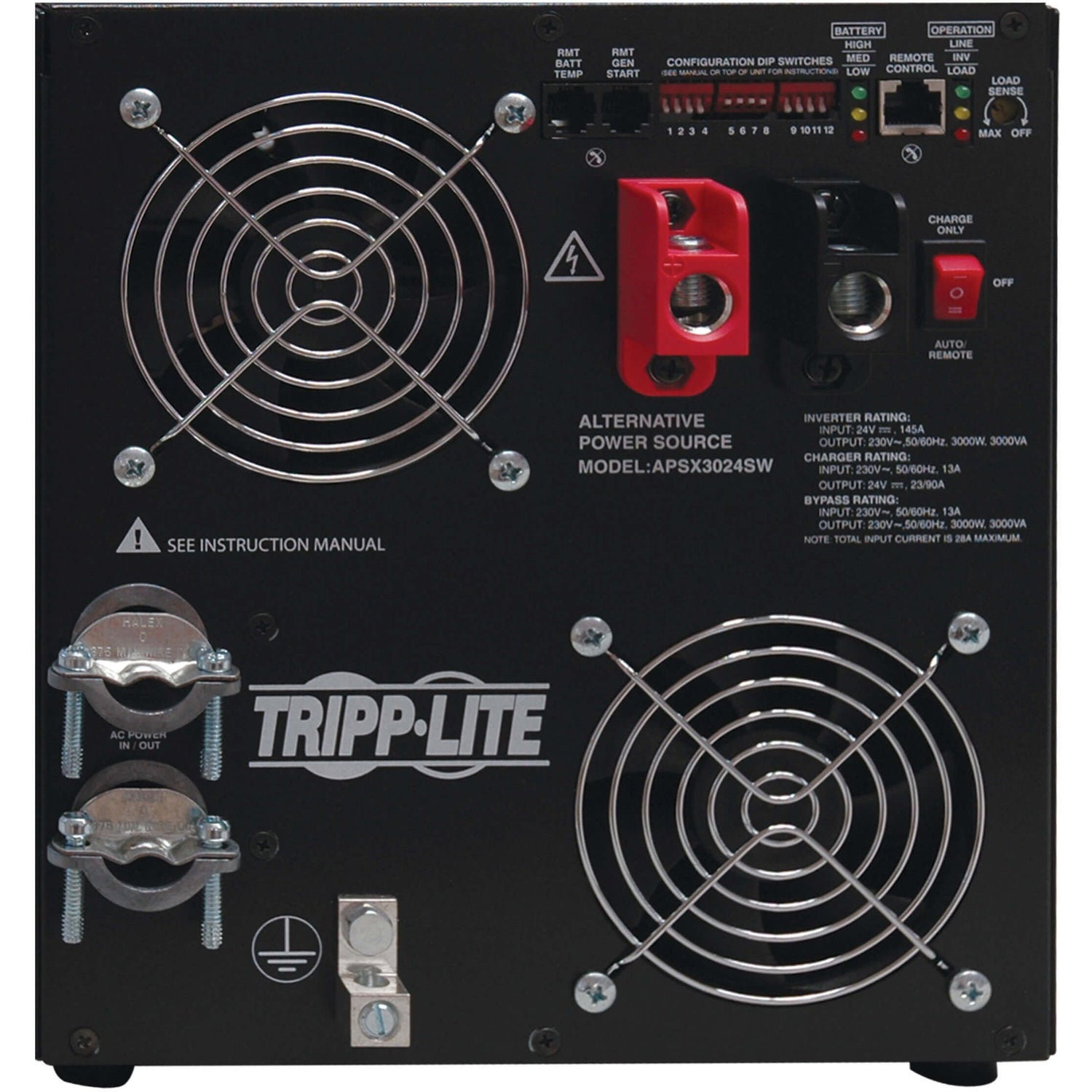

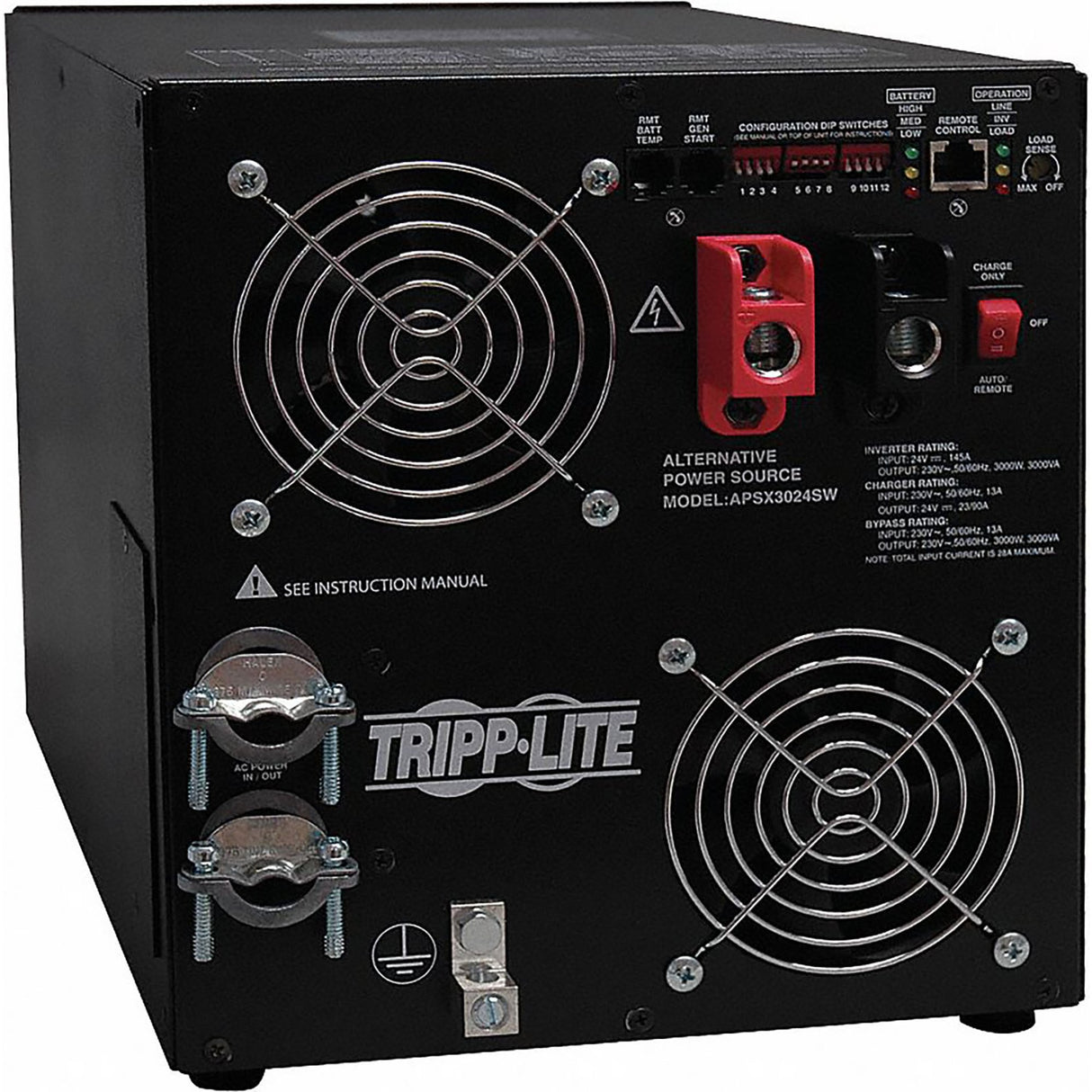

Eaton APSX3024SW – 3000W International Inverter/Charger

Product Overview

The Eaton APSX3024SW is a 3000W APS X Series international inverter/charger that converts 24VDC to 230VAC, hardwired at 23/90A, for mobile, emergency, and remote power installations. It delivers network-grade, pure sine-wave power to sensitive electronics, computers, and audio/video components. Designed for RVs, commercial and fleet vehicles, and emergency vehicles, it provides high continuous and surge capacity for demanding, hardwired power applications.

Product Description

As a pure sine-wave inverter/charger, the APSX3024SW produces clean, network-grade AC power suitable for sensitive electronics that can be affected by the modified sine-wave output of lower-cost inverters, including computers and audio/video components used in mobile or remote deployments. Rated for 3000W of continuous power, the unit can also deliver 4500W for up to one minute and 6000W of peak power for up to 10 seconds, covering the startup surge of pumps, compressors, and other inductive loads. Its 24VDC input and 230VAC hardwire output at 23/90A reflect its design for international and commercial vehicle electrical systems rather than standard 12V/120V consumer installations. Hardwired installation, as opposed to plug-in operation, makes this unit a fit for permanent or semi-permanent integration into RVs, commercial fleet vehicles, and emergency response vehicles where a dedicated inverter/charger is built into the vehicle's electrical system. The integrated charging function recharges the connected 24V battery bank whenever shore or generator power is available, keeping the vehicle or remote installation ready for its next deployment. Because it targets mobile, emergency, and remote sites, typical use cases include field command vehicles, mobile broadcast or AV support vehicles, and fleet vehicles that need to run power tools, computers, or AV equipment away from utility power. For integrators specifying power systems in international 230V vehicle or remote-site electrical systems, the APSX3024SW provides substantial continuous and surge capacity in a single hardwired unit.

Key Features

• 3000W Continuous / 6000W Peak — Handles sustained loads plus startup surges from pumps, compressors, and tools.
• Pure Sine-Wave Output — Delivers network-grade power suitable for sensitive electronics and AV components.
• 24VDC to 230VAC Conversion — Built for international and commercial vehicle electrical systems.
• Hardwire Installation — Designed for permanent integration into RVs, fleet, and emergency vehicles.
• Integrated Charging System — Recharges the connected 24V battery bank whenever AC power is available.

Typical Applications

• Mobile command or emergency vehicle power systems
• Remote site or field facility power supporting network/AV equipment

Technical Specifications

Frequently Asked Questions

What makes this inverter suitable for sensitive electronics?

The APSX3024SW produces pure sine-wave, network-grade AC power, which is compatible with sensitive electronics, computers, and audio/video components.

Is this unit plug-in or hardwired?

It is a hardwired unit, designed for permanent or semi-permanent integration into a vehicle's or remote site's 230VAC electrical system at 23/90A.

What vehicle types is it designed for?

It is designed for installation in RVs, commercial and fleet vehicles, and emergency vehicles operating on 24VDC electrical systems.

Can it handle equipment with high startup power draw?

Yes. In addition to 3000W continuous output, it delivers 4500W for up to one minute and 6000W of peak power for up to 10 seconds.

Does it charge the battery bank automatically?

Yes. Its integrated charging system recharges the connected 24V battery bank whenever AC power is present.

What warranty coverage applies?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.

Is professional installation recommended?

Yes. Because this is a hardwired, 24V high-capacity unit, installation by a qualified electrician familiar with vehicle or remote-site 230VAC systems is recommended.
