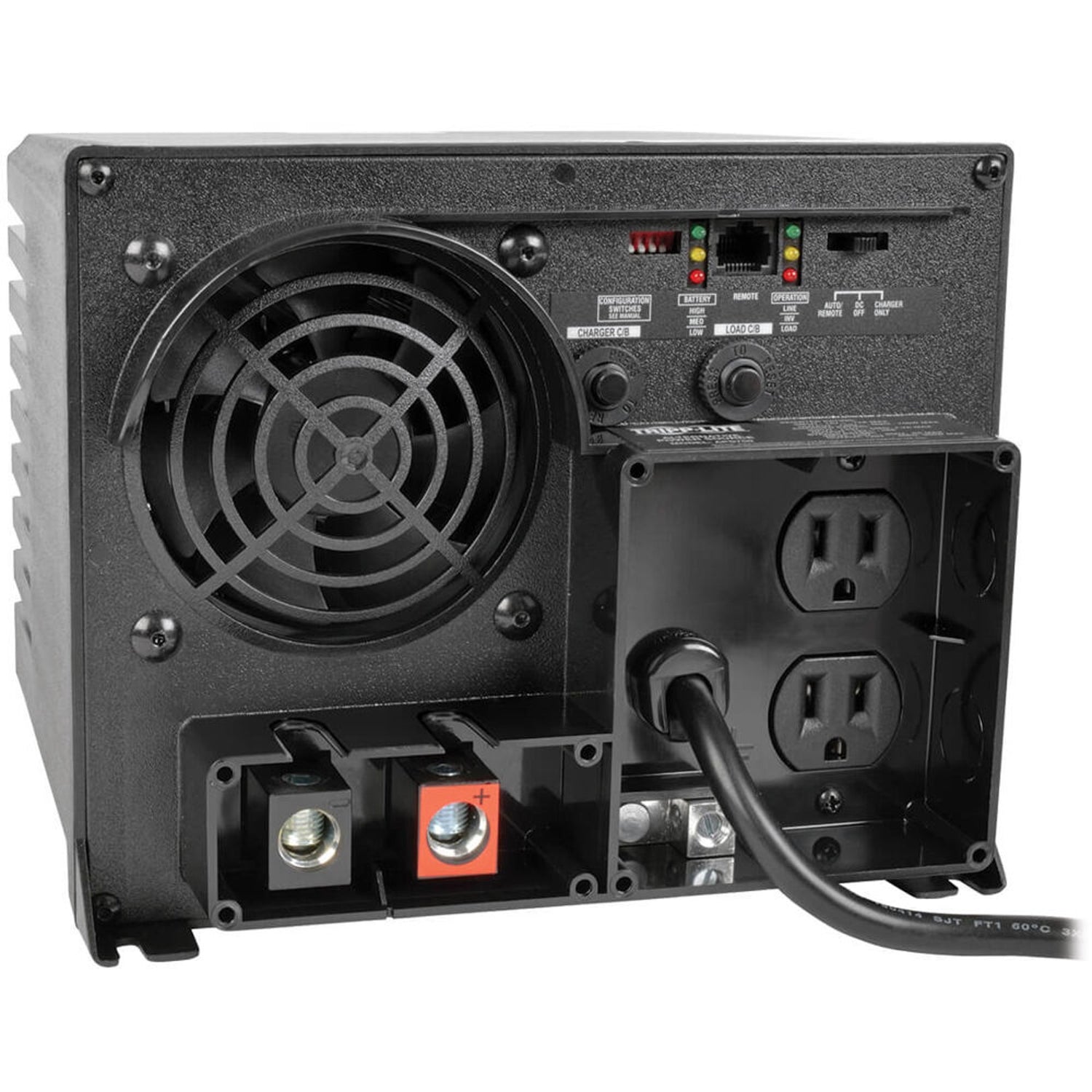

Eaton APS750 – 750W 12VDC to 120V Inverter/Charger

Product Overview

The Eaton APS750 is a 750-watt PowerVerter APS inverter/charger that converts 12V DC power into 120V AC power for equipment ranging from power tools and pumps to portable lighting and computer equipment under heavy-load conditions. Designed for RVs, over-the-road trucks, fleet vehicles and emergency vehicles, it functions as a vehicle inverter, standalone AC power source or extended-run UPS with an automatic line-to-battery transfer switch. Fleet and mobile power integrators specify the APS750 as a generator-free power source for equipment operating away from utility power.

Product Description

The APS750 750W PowerVerter APS inverter/charger is a reliable power source for a wide variety of equipment, ranging from power tools and pumps to portable lighting and computer equipment in heavy-load conditions, without the fumes, fuel or excess noise of a generator. The DC-to-AC inverter features an automatic line-to-battery transfer switch and an integrated charging system that lets it work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 750W of continuous power, with a 1125W rating for up to one hour and 1500W of peak power for up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage during heavy-load operation. Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and emergency vehicles, the APS750 converts stored power from any 12V battery or automotive DC source into safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 120V AC source, the unit keeps the user-supplied battery charged via a three-stage 20A charging system while simultaneously delivering AC power to connected equipment. When used as a UPS, the APS750 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output, and LEDs indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status for at-a-glance monitoring.

Key Features

• 750W Continuous Power — Delivers 750W continuous, 1125W for up to one hour, and 1500W peak for up to 10 seconds.
• 12VDC to 120V AC Conversion — Converts stored 12V battery power into safe, stable computer-grade AC output.
• Automatic Transfer Switch — Instantaneously transfers to battery-derived AC output during blackouts or brownouts when used as a UPS.
• Three-Stage 20A Charging — Keeps a connected battery charged when hardwired to an external 120V AC source.
• Overload and Thermal Protection — An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.
• Detailed Status LEDs — Indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status.

Typical Applications

• Government space fleet and emergency vehicles
• Server room extended-run backup power

Technical Specifications

Frequently Asked Questions

Can the APS750 run as a standalone power source without the vehicle running?

Yes, it can operate as a standalone AC power source or extended-run UPS from a connected 12V battery, not only as a vehicle inverter.

How is the unit typically installed in a vehicle?

The APS750 is designed for installation in RVs, over-the-road trucks, fleet vehicles and emergency vehicles; a qualified installer should size wiring and battery capacity for the application.

What happens when utility power is interrupted while the unit is hardwired?

The automatic transfer switch instantaneously shifts to battery-derived AC output, letting the unit function as a UPS during blackouts or brownouts.

What equipment can this inverter/charger power?

It is rated for power tools, pumps, portable lighting and computer equipment in heavy-load conditions, within its wattage rating.

How does the charging system work when connected to an external AC source?

A three-stage 20A charging system recharges the user-supplied battery while simultaneously delivering AC power to connected equipment.

What warranty applies to the APS750?

Eaton backs this unit with its standard manufacturer warranty; contact Creation Networks for the current term and any extended coverage options.
