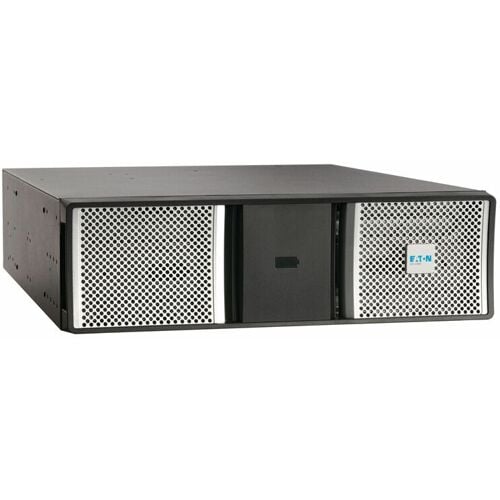

Eaton 9PXEBM180RTG2 – 180V Extended Battery Module for 9PX G2 UPS

Product Overview

The Eaton 9PXEBM180RTG2 is a 180V extended battery module built to extend runtime on compatible Eaton 9PX G2 UPS systems deployed in data closets, AV racks, and commercial equipment rooms. As a rack-mount UPS battery expansion, it lets integrators add backup capacity to an existing 9PX G2 installation without replacing the UPS itself. This 3U extended battery module supports daisy-chaining for a commercial UPS runtime extension of up to 12 auto-detected battery packs, making it a practical option for facilities that need longer bridge time during utility outages.

Product Description

The 9PXEBM180RTG2 is a 9PX G2 external battery pack designed specifically for Eaton's 3-6kVA 9PX G2 UPS line, including the 9PX3K3UG2, 9PX5KG2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, and related G2 variants. Housed in a 3U rack/tower chassis, it ships with both rack-mounting hardware and tower support stands, giving integrators flexibility whether the UPS lives in a standard 19-inch AV rack, a network cabinet, or a freestanding tower configuration in a data closet. Each module uses sealed lead-acid batteries and is auto-detected by the host UPS, so multiple modules can be daisy-chained together without manual configuration. For commercial AV integrators supporting conference room control racks, digital signage head-ends, or broadcast equipment closets, this battery expansion is a straightforward way to close the runtime gap between a short-duration UPS and the actual time needed to shut down equipment gracefully or ride through an extended outage. Because it shares the same footprint and rack profile as the 9PX G2 UPS family, it installs cleanly alongside the UPS in the same rack space, keeping cable runs and power distribution tidy in commercial-grade rack builds.

Key Features

• 3U Rack/Tower Form Factor — Matches the footprint of compatible 9PX G2 UPS units for a clean, uniform rack elevation in AV racks and data closets.
• Auto-Detected Daisy-Chaining — Supports up to 12 battery packs in series, so runtime can be scaled to match the criticality of the connected load.
• Sealed Lead-Acid Battery Design — Uses field-proven VRLA battery chemistry for reliable, low-maintenance standby power.
• Dual Mounting Options — Includes both rack-mount rails and tower pedestals, so it can be deployed in a rack enclosure or as a standalone tower unit.
• Broad UPS Compatibility — Works with a wide range of 3-6kVA 9PX G2 UPS models, simplifying spec matching for procurement teams.
• 3-Year Factory Warranty — Is backed by Eaton's standard 3-year coverage on parts, electronics, and batteries.

Typical Applications

• Boardroom power backup for conferencing and control equipment racks
• Conference room AV rack runtime extension
• Government space data and communications closets requiring extended backup
• Commercial meeting space equipment racks with critical AV/control systems

Technical Specifications

Frequently Asked Questions

Which UPS systems is the 9PXEBM180RTG2 compatible with?

It is compatible with the 9PX G2 3-6kVA UPS family, including the 9PX3K3UG2, 9PX5KG2, 9PX5KTF5G2, 9PX6KG2, and 9PX6KIECG2, among other G2 variants listed in the technical specifications above. Confirm the exact model of your installed UPS before ordering.

Can multiple battery modules be connected to one UPS?

Yes, up to 12 modules can be daisy-chained and are auto-detected by the host UPS, allowing integrators to scale runtime to the requirements of a specific commercial installation.

How does this module mount in an AV rack?

The unit ships with rack-mounting rails for standard 19-inch rack installation as well as tower support stands for freestanding deployment, so it can be integrated into an existing rack elevation alongside the UPS or used independently.

Does adding this module require reconfiguring the UPS?

No manual configuration is required. The connected UPS automatically detects the added battery module once it is cabled in, simplifying installation for field technicians.

What is the warranty coverage?

The 9PXEBM180RTG2 carries a 3-year factory warranty covering parts, electronics, and the internal batteries.

Can Creation Networks help verify compatibility before I order?

Yes, our team can confirm compatibility with your specific 9PX G2 UPS model and help plan rack space and cabling for the installation. Contact Creation Networks for the complete manufacturer spec sheet and installation guidance.
