Eaton 9PX6KG2 – 6000VA 208V Online Double-Conversion UPS

Product Overview

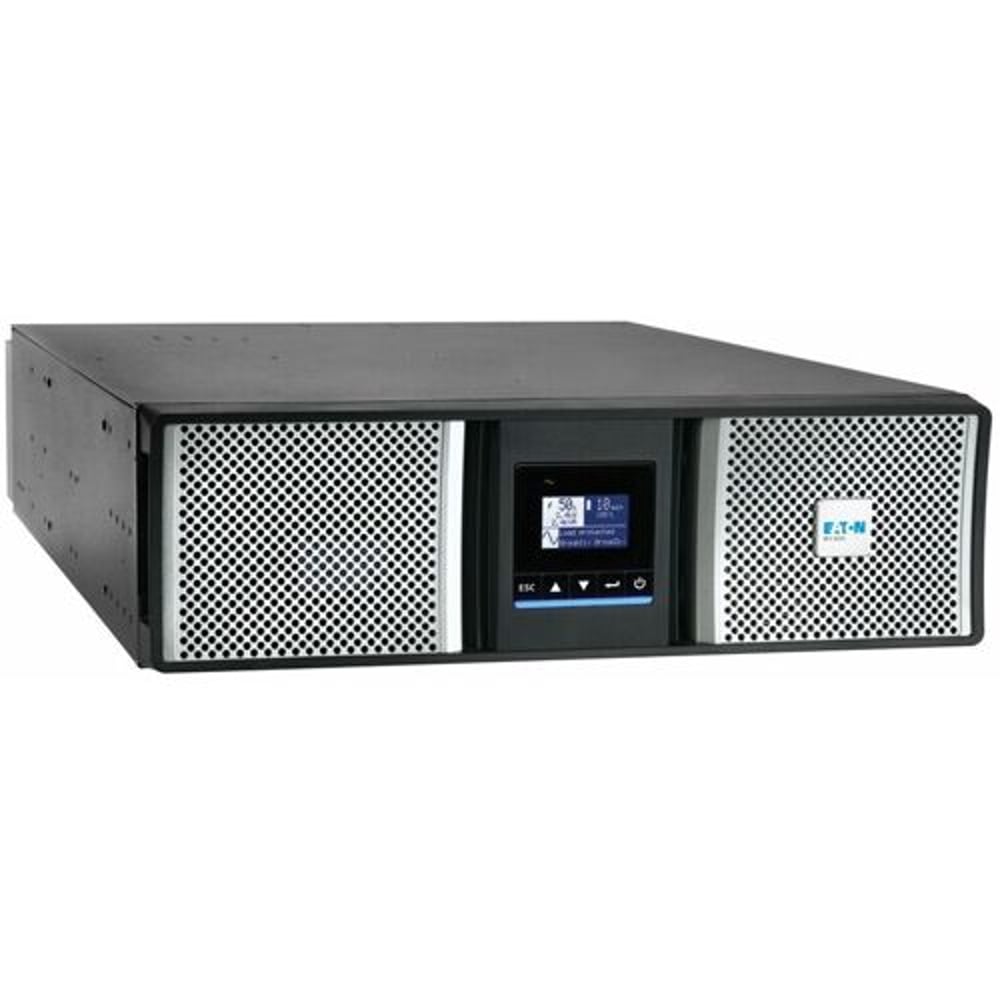

The Eaton 9PX6KG2 is a 3U rack/tower online double-conversion UPS delivering 6000VA/5400W of 208V battery backup for distributed IT and AV equipment. As an online double-conversion UPS for commercial IT racks, it provides continuous, zero-transfer-time power conditioning that protects sensitive servers, network switches, broadcast equipment, and AV processing gear from blackouts, brownouts, surges, and line noise. This 3U rack-mount UPS is well suited for AV data closets, edge network cabinets, and centralized equipment rooms supporting a commercial AV deployment. Its true sine wave output and configurable 200-240V range make it a flexible high-capacity UPS for server and AV racks in mixed-use commercial facilities.

Product Description

The 9PX6KG2 uses double-conversion (online) topology, meaning incoming AC power is continuously converted to DC and back to clean AC output, isolating connected equipment from utility disturbances with no transfer time. This makes it a strong fit for a 208V online UPS for commercial IT racks feeding servers, storage, VoIP infrastructure, and AV signal processing equipment that cannot tolerate even momentary power interruption. The unit ships in a 3U rack/tower chassis measuring 17.32 in W x 5.12 in H x 26.93 in D and weighing 98.33 lb, and it accepts L6-30P or hardwired input with a 10-ft cord. Output is delivered through (2) L6-20R, (2) L6-30R receptacles plus a hardwired connection option, supporting a mix of AV, networking, and IT equipment on a single UPS. ABM+ battery management technology extends battery service life and provides analytics on battery health, reducing unplanned truck rolls for facilities teams managing multiple AV data closets. In broadcast studios, auditoriums with centralized AV racks, and government or commercial buildings with dedicated equipment rooms, the 9PX6KG2 functions as a double-conversion UPS for critical AV/IT equipment where downtime is not an acceptable outcome. Its rack/tower flexibility lets integrators mount it directly into a standard 19-inch rack or run it as a freestanding tower depending on the room's layout.

Key Features

• Online double-conversion topology — Continuously regenerates clean AC output with zero transfer time, isolating critical AV/IT loads from all utility disturbances.
• 6000VA/5400W capacity — Supports high-density server, network, and AV equipment racks on a single UPS.
• ABM+ battery management — Extends battery service life and reports battery health analytics for proactive maintenance.
• Configurable 200-240V output — Adapts to different regional voltage requirements without a separate model.
• True sine wave output — Matches utility power quality for sensitive electronics and active PFC power supplies.
• 3U rack/tower form factor — Mounts in a standard 19-inch rack or operates as a freestanding tower.
• Flexible output receptacles — (2) L6-20R, (2) L6-30R, and hardwire options accommodate mixed equipment loads.
• 3-year limited warranty — Covers parts, electronics, and batteries from the factory.

Typical Applications

• Broadcast studio central equipment racks
• Auditorium AV control and processing rooms
• Government space IT and AV equipment rooms
• Commercial meeting space centralized AV racks
• House of worship media and broadcast equipment rooms

Technical Specifications

Frequently Asked Questions

Can the 9PX6KG2 be rack-mounted in a standard 19-inch AV/IT rack?

Yes, the 9PX6KG2 is a 3U rack/tower unit that mounts directly into a standard 19-inch rack or can be operated as a freestanding tower depending on room layout.

What kind of equipment can be connected simultaneously?

The unit provides (2) L6-20R, (2) L6-30R receptacles, and a hardwired connection, allowing a mix of server, network, and AV equipment with different plug types on a single UPS.

Does this UPS require a dedicated circuit?

Given its 6000VA/5400W capacity and L6-30P/hardwire input, the 9PX6KG2 typically requires a dedicated 208V circuit sized appropriately by a licensed electrician during installation.

How does online double-conversion topology benefit AV/IT integrations?

Double-conversion topology continuously regenerates output power with zero transfer time, so connected servers, switches, and AV processing equipment never experience a power gap during utility disturbances.

What warranty coverage applies to this UPS?

The 9PX6KG2 carries a 3-year limited factory warranty covering parts, electronics, and batteries with standard ground shipping.

Can the batteries be monitored remotely?

Yes, ABM+ battery management technology reports battery health analytics, which facilities teams can use to plan proactive replacement before failure.

Is this UPS appropriate for a broadcast studio or auditorium equipment room?

Yes, its high capacity, true sine wave output, and online topology make it well suited to centralized broadcast studio or auditorium AV equipment rooms with continuous uptime requirements.
