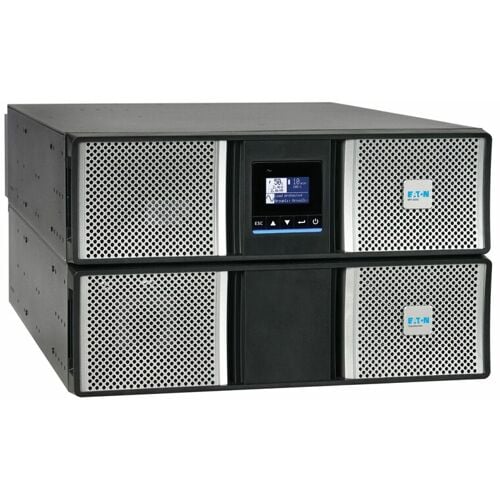

Eaton 9PX5KTF5G2 – 5000VA Online Double-Conversion UPS

Product Overview

The Eaton 9PX5KTF5G2 is a 5kVA/5kW online double-conversion UPS for data closet and distributed IT/edge network deployments requiring zero transfer time protection. As a 208V rack-mount UPS for AV rack and data center applications, it provides continuous AC power protection against blackouts, brownouts, surges, and line noise that can damage critical equipment or corrupt data. This commercial UPS battery backup installation is built for facilities and AV integrators standardizing on true online double-conversion topology.

Product Description

The 9PX5KTF5G2 delivers 5000VA/5000W of output at 208V/120V input, in a 6U rack/tower chassis suited to data closets, network operations centers, and larger AV equipment racks. As an online double-conversion UPS for data closet installations, it continuously converts incoming AC power to DC and back to clean AC output, eliminating the transfer time that line-interactive designs experience when switching to battery. This makes it a strong fit for distributed IT and edge network racks supporting broadcast production equipment, video wall processors, and centralized AV control systems where even momentary power interruption is unacceptable. The unit offers an extensive outlet configuration, including eighteen 5-20R outlets, two L6-20R outlets, one L6-30R outlet, and a hardwired 200-240V connection point, giving integrators flexibility to power a mix of rack equipment voltages from a single UPS. A hot-swappable battery design with Eaton's ABM+ battery management technology supports maintenance without powering down connected loads, and an included Gigabit network card (NETWORK-M3) enables remote monitoring integration with building management or AV control platforms. This 208V rack-mount UPS for AV rack use is well suited for facilities managers and AV system designers who need scalable runtime via compatible extended battery modules alongside dependable online protection.

Key Features

• Online Double-Conversion Topology — Delivers zero transfer time protection by continuously regenerating clean AC output regardless of incoming power quality.
• 5000VA/5000W Output Capacity — Supports substantial IT and AV rack loads in a single 6U chassis.
• Extensive Outlet Configuration — Eighteen 5-20R, two L6-20R, one L6-30R, and hardwired 200-240V connections accommodate mixed-voltage equipment.
• Included Gigabit Network Card — Enables remote monitoring and SNMP-based integration with facility and AV management systems.
• Hot-Swappable Battery Design — ABM+ battery management technology allows battery service without shutting down connected loads.
• 96% Efficiency at Maximum Load — Reduces operating costs for continuously running commercial UPS installations.
• 3-Year Factory Warranty — Covers parts, electronics, and batteries.

Typical Applications

• Broadcast studio production equipment power protection
• Government space data and communications rack backup
• Commercial meeting space centralized AV control rack backup
• Auditorium video and audio processing equipment protection

Technical Specifications

Frequently Asked Questions

Can I extend runtime on the 9PX5KTF5G2 with additional battery modules?

Yes, this UPS is compatible with Eaton's 9PX G2 extended battery modules, such as the 9PXEBM180RTG2, which can be daisy-chained to extend backup time beyond the standard runtime.

What kind of AV equipment is this UPS suited to protect?

Its mixed outlet configuration and high wattage capacity make it well suited for broadcast production racks, video wall processors, centralized AV control systems, and network infrastructure in commercial AV installations.

Does it require a hardwired electrical connection?

It supports both cord-connected outlets and a hardwired 200-240V input option, giving electricians and integrators flexibility based on the facility's electrical infrastructure.

Can the batteries be serviced without powering down connected equipment?

Yes, the unit features hot-swappable batteries with ABM+ battery management technology, allowing battery replacement without an outage to connected loads.

What is the warranty on this UPS?

Eaton backs the 9PX5KTF5G2 with a 3-year limited warranty covering parts, electronics, and batteries.

Can Creation Networks help size this UPS for my rack load?

Yes, our team can review your rack's connected load and voltage requirements to confirm the 9PX5KTF5G2 is correctly sized, and can recommend compatible battery modules for extended runtime. Contact Creation Networks for the complete manufacturer spec sheet.
