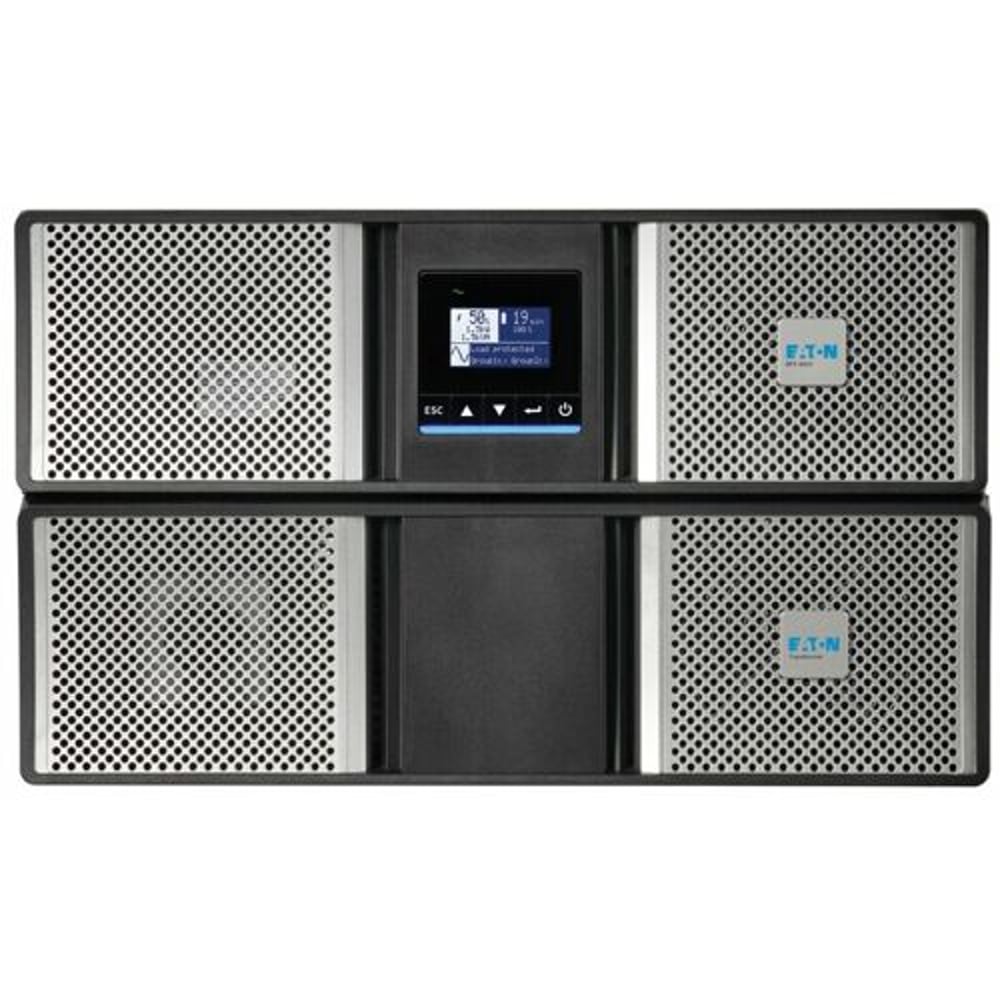

Eaton 9PX3K3UNTF5G2 – 3000VA Online Double-Conversion UPS

Product Overview

The Eaton 9PX3K3UNTF5G2 is a 3000VA/3000W online double-conversion UPS designed as a 3000VA rack-mount UPS for distributed IT and edge network installations, including centralized AV racks in commercial buildings. Its online double-conversion UPS for AV rack topology keeps connected servers, switches, and AV processors on continuously regulated power rather than switching to battery only during an outage. For integrators managing a commercial UPS battery backup installation across multiple rooms, this unit's 208V input and flexible hardwire or L6-30P connection options make it adaptable to varied electrical infrastructure. It fits the same 9PX G2 platform used in larger data closets, giving a mid-capacity option as a 3000W UPS for network rack deployments.

Product Description

This 6U rack/tower UPS supports both 208V and 120V AV or IT loads through a mix of 5-20R, L6-20R, and L6-30R outlets, plus support for a direct hardwire connection where local code or facility standards require it. That flexibility makes it well suited for a 208V rack UPS with hardwire input requirement in commercial buildings where an electrician has already run dedicated circuits to the equipment rack. Like its larger 9PX G2 siblings, it uses true online double-conversion topology with a rated 96 percent efficiency at maximum load, reducing both the electrical cost and heat load inside an enclosed AV or IT rack. At full 3000W load it provides roughly 7.5 minutes of battery runtime, extending to about 18.5 minutes at half load, giving facilities staff or connected shutdown scripts enough time to respond to an extended outage. A NETWORK-M3 Gigabit card is included standard, supporting SNMP monitoring so this unit can be tracked alongside other network infrastructure from a central dashboard. As a rack UPS for conference room AV head-end applications, its 3000VA capacity comfortably covers a rack of matrix switchers, DSPs, and control processors without oversizing the investment.

Key Features

• Online Double-Conversion Topology — Continuously regenerates output power for zero-transfer-time protection against AV and IT equipment brownouts and surges.
• 3000VA/3000W Capacity — Sized for a typical AV or IT equipment rack without the cost or footprint of a larger 5kVA-plus unit.
• Hardwire or L6-30P Input — Supports either a direct hardwired connection or a standard twist-lock plug, adapting to whatever circuit the facility has installed.
• Mixed Voltage Outlets — 5-20R, L6-20R, and L6-30R receptacles allow both 120V AV gear and 208V IT equipment to run from one UPS.
• Included NETWORK-M3 Card — Enables SNMP and web-based remote monitoring for facilities and IT teams.
• 96 Percent Efficiency — Lowers heat output and operating cost inside enclosed AV or data closet racks.
• 3-Year Limited Warranty — Covers parts, electronics, and batteries under Eaton's standard commercial terms.

Typical Applications

• Commercial meeting space AV racks centralizing switching, DSP, and control equipment
• Government space equipment rooms requiring hardwired UPS installation per facility code
• Training room and multi-purpose room AV head-ends supporting several connected spaces
• Auditorium equipment racks needing mid-capacity, continuously regulated power

Technical Specifications

Frequently Asked Questions

Can this UPS be hardwired instead of plugged in?

Yes, the 9PX3K3UNTF5G2 supports either a direct hardwire connection or a standard L6-30P plug, so it can match whatever circuit configuration your electrician has installed.

Will this UPS fit a standard 19-inch AV rack?

Yes, it is a 6U rack/tower unit designed for standard 19-inch racks and can also be operated as a freestanding tower if needed.

How does remote monitoring work with this unit?

The included NETWORK-M3 card provides SNMP and web-based monitoring, allowing facilities or IT staff to view load, alarms, and battery health remotely.

What is the expected runtime during a power outage?

At full 3000W load expect approximately 7.5 minutes of runtime, extending to about 18.5 minutes at half load.

Does this unit support both 120V and 208V equipment simultaneously?

Yes, its mix of 5-20R, L6-20R, and L6-30R receptacles allows both 120V AV devices and 208V IT equipment to draw power from the same UPS.

What warranty coverage is included?

Eaton provides a 3-year limited warranty covering parts, electronics, and batteries on this model.

Can Creation Networks assist with sizing this UPS to my AV rack's total load?

Yes, our team can calculate your connected equipment's power draw and confirm the 9PX3K3UNTF5G2 provides sufficient capacity and runtime, or suggest an alternative from the 9PX G2 lineup.
