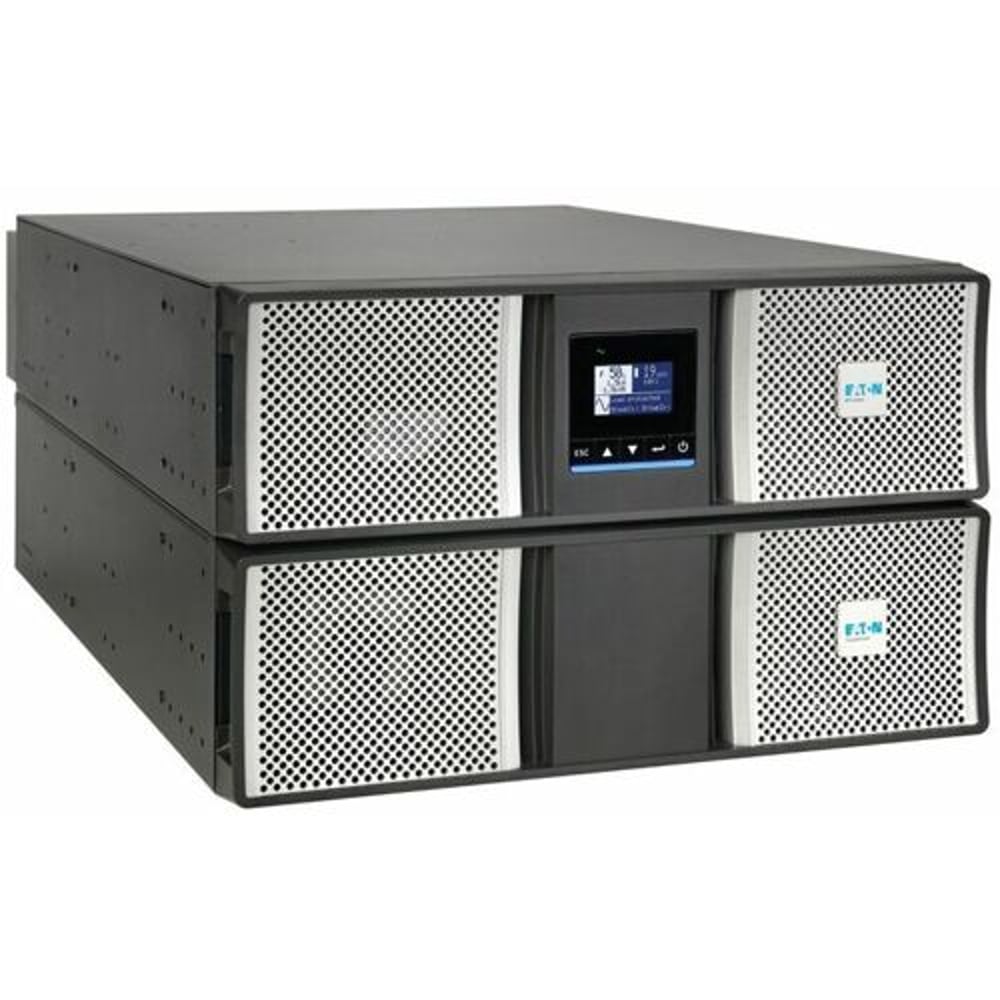

Eaton 9PX3K3UNP2G2 – 3000VA Online Double-Conversion UPS

Product Overview

The Eaton 9PX3K3UNP2G2 is a 3000VA/3000W online double-conversion UPS built for commercial data closets, AV equipment rooms, and IT racks that require continuously conditioned, hardwired power protection. As a 6U rack UPS system, it is sized for facilities specifying a rack-mount UPS for AV rack power protection alongside network switches and centralized AV processing equipment. Online double-conversion topology and 208/120V input/output flexibility make this UPS well-suited for commercial UPS battery backup installation in government facilities, broadcast studios, and other environments where downtime is not an option. The platform also supports extended battery modules for facilities needing longer runtime than the internal battery provides.

Product Description

This 9PX G2 rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges, and line noise that can damage critical IT equipment, AV processors, or destroy data. The 9PX3K3UNP2G2 accepts 208V input (configurable to 200/208/220/230/240V) and delivers 120/240V hardwired output, matching common commercial electrical service in data closets and centralized AV racks. Because input and output connections are hardwired rather than receptacle-based, installation is generally handled by a licensed electrician as a dedicated circuit—an important scoping detail for any commercial UPS battery backup installation. At 96% efficiency under full load, the unit runs efficiently for continuous, always-on operation, and the included Gigabit network card (NETWORK-M3) allows facilities teams to monitor UPS load, battery health, and status remotely across a broadcast studio, government facility, or multi-room AV deployment. The 6U rack UPS system supports up to 12 extended battery modules for facilities that need significantly longer runtime than the internal battery alone provides, giving integrators a scalable path as power requirements grow. This model is a solid fit for AV integrators building out an online double-conversion UPS for IT closet or centralized AV rack applications where uptime and power quality both matter.

Key Features

• 3000VA/3000W Output — Full-rated wattage handles demanding IT and AV rack loads without derating.
• Online Double-Conversion Topology — Continuously conditions power so connected equipment experiences no transfer gap during an outage.
• Configurable 208V Input — Adjustable to 200/208/220/230/240V to match commercial electrical service.
• 6U Rack Form Factor — Integrates into standard 19-inch racks alongside IT and AV processing equipment.
• 96% Efficiency at Full Load — Lowers operating cost and heat output for continuous, always-on installations.
• Included Gigabit Network Card — The NETWORK-M3 card enables remote monitoring and management.
• Extended Battery Module Support — Accepts up to 12 daisy-chained EBMs for scalable, extended runtime.
• 3-Year Limited Warranty — Covers parts, electronics, and batteries for long-term ownership confidence.

Typical Applications

• Broadcast studio power protection for on-air equipment racks
• Government space data closets and control rooms requiring redundant power
• Boardroom AV racks with centralized processing and network equipment
• Commercial meeting space installations with shared AV/IT power infrastructure

Technical Specifications

Frequently Asked Questions

Does the 9PX3K3UNP2G2 support extended battery modules?

Yes, it supports up to 12 daisy-chained Eaton 9PX G2 extended battery modules for facilities needing runtime beyond the internal battery.

Is professional installation required?

Yes. The hardwired input and output design means this UPS should be installed by a licensed electrician as a dedicated circuit, similar to other hardwired commercial UPS battery backup installation projects.

What input voltage configurations does this UPS support?

It defaults to 208V but can be configured for 200/208/220/230/240V input to match your facility's electrical service.

Can this UPS support a rack of AV and network equipment simultaneously?

Yes, at 3000VA/3000W it has sufficient capacity for a mixed rack of AV processing and network switching equipment, provided total connected load stays within the rated capacity.

What runtime does the internal battery provide?

7.5 minutes at full 3000W load and 18.5 minutes at half load, based on manufacturer testing.

What warranty is included?

Eaton backs this UPS with a 3-year limited warranty covering parts, electronics, and batteries.

Can Creation Networks help plan the electrical and rack integration for this UPS?

Yes. Contact Creation Networks to coordinate load calculations, rack placement, and electrical scope with your contractor.
