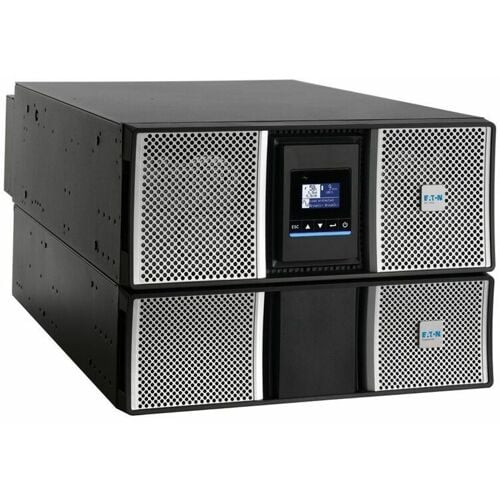

Eaton 9PX11KTF11MG2 – 11kVA Rack UPS for Edge Networks

Product Overview

The Eaton 9PX11KTF11MG2 is an 11kVA/11kW online double-conversion UPS designed for distributed IT and edge network environments, including large-scale AV rack rooms with substantial connected load. As an 11kVA online double-conversion UPS, it provides true sine wave output at 208/120V with no transfer time, making it a fit for high-density rack-mount UPS for AV rack deployments where a single unit must back up an entire equipment bay. This model supports a commercial UPS battery backup installation in centralized data closets or dedicated AV equipment rooms serving large commercial spaces.

Product Description

Rated at 11 kVA / 11 kW, the 9PX11KTF11MG2 accepts a 208V default input configurable across 200/208/220/230/240V and delivers 120/240V output across eight 5-20R receptacles, four L6-30R outlets, two L14-30R outlets, and hardwired connection points, covering a broad mix of AV, IT, and higher-amperage equipment from a single UPS. Online double-conversion topology with a power factor of 1.0 keeps connected loads running continuously off the inverter, which matters for facilities such as auditoriums and broadcast studios where display processors and audio DSPs cannot tolerate transfer gaps. The 7U rack/tower chassis integrates into a centralized AV rack room, and the included NETWORK-M3 gigabit network card allows facilities and AV staff to monitor UPS status alongside other networked infrastructure. Full-load runtime is 3.1 minutes, extending to 9.4 minutes at half load, consistent with an online UPS intended to bridge short outages or transition to generator power rather than serve as a long-duration battery backup for AV equipment on its own. At 97 percent efficiency and 392 lb, this is a serious piece of infrastructure best specified with the load calculations and rack elevation planning that a commercial UPS battery backup installation of this size requires. A 3-year limited warranty covers parts, electronics, and batteries.

Key Features

• 11kVA/11kW online double-conversion topology — Continuous inverter operation with a 1.0 power factor eliminates transfer time for connected AV and IT loads.
• 208/120V flexible voltage configuration — Input voltage is configurable across 200-240V, and output is available at 120/240V to serve mixed voltage requirements.
• 14 total output receptacles plus hardwired connections — Eight 5-20R, four L6-30R, and two L14-30R outlets support a wide range of connected equipment types.
• 7U rack/tower form factor — This chassis is designed for centralized AV rack rooms or data closets serving large commercial facilities.
• Included NETWORK-M3 card — This card provides gigabit network connectivity for remote monitoring alongside other networked building systems.
• True sine wave output — The unit delivers utility-quality power suitable for sensitive audio DSPs and display processors.
• High operating efficiency — This UPS operates at up to 97 percent efficiency at maximum load.
• 3-year limited warranty — This warranty covers parts, electronics, and batteries.

Typical Applications

• Broadcast studio
• Auditorium
• Government space

Technical Specifications

Frequently Asked Questions

What size AV rack deployment is the 9PX11KTF11MG2 designed for?

At 11kVA/11kW, it is intended for large, high-density AV or IT racks with substantial combined connected load, such as centralized equipment rooms serving an auditorium or broadcast facility.

How long will this UPS support connected equipment during a power outage?

Full-load runtime is approximately 3.1 minutes, extending to 9.4 minutes at half load, which is typical for an online UPS designed to bridge short outages or hand off to a backup generator.

Can I monitor this UPS as part of my building's network infrastructure?

Yes, it ships with a NETWORK-M3 gigabit network card for remote monitoring alongside other networked building and AV systems.

Does this unit require professional installation?

Given its size, output configuration, and hardwired connection points, professional installation by a licensed electrician is recommended, along with load planning for the specific facility.

What compatible distribution or transformer accessories exist for this UPS?

Contact Creation Networks to confirm which Eaton 9PX G2 accessories, including distribution modules and step-down transformers, are compatible with this specific 11kVA configuration.

What warranty coverage comes with the 9PX11KTF11MG2?

Eaton backs this UPS with a 3-year limited warranty covering parts, electronics, and batteries.

Who should I talk to about sizing this UPS correctly for my facility?

Contact Creation Networks for load calculation and rack planning support before finalizing a UPS this size for your project.
