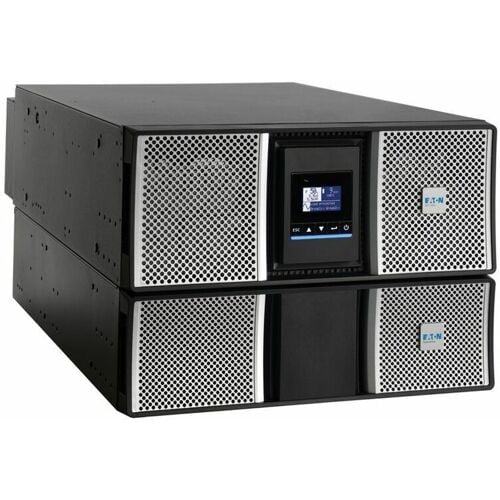

Eaton 9PX11KTF11G2 – 11kVA Online Double-Conversion UPS

Product Overview

The Eaton 9PX11KTF11G2 is an 11kVA/11kW online double-conversion UPS built for distributed IT infrastructure, data center rows, and edge computing deployments requiring high-capacity, low-maintenance battery backup. As a commercial UPS battery backup installation for facilities running 208/120V equipment, it delivers reliable, continuous power protection against blackouts, brownouts, surges, and line noise that can damage critical IT and networking equipment. The included Gigabit network card makes this rack-mount UPS for data center power a strong fit for IT managers, electrical contractors, and integrators managing power across business, government, healthcare, and education facilities.

Product Description

Delivering 11kVA/11kW of double-conversion protection, the 9PX11KTF11G2 continuously converts and regenerates AC power so that connected equipment never experiences a transfer event during a utility disturbance. This makes it well suited as a high-capacity UPS for edge computing nodes, server racks, and networking equipment in data closets or dedicated equipment rooms serving multiple departments. The unit's 4U rack/tower chassis includes eight 5-20R receptacles, four L6-30R outlets, and two hardwired L14-30R connections, giving integrators flexibility to power a mix of server, switch, and PDU equipment from a single UPS. The included NETWORK-M3 Gigabit network card provides Ethernet connectivity for remote monitoring through Eaton's Brightlayer Data Centers software, letting IT managers track load, battery health, and alarms across a fleet of UPS units from a central dashboard. This 9PX G2 UPS for IT infrastructure is designed for distributed environments including edge computing sites, retail back-office server rooms, and healthcare or government facilities where downtime is not an acceptable risk. With a 3-year factory warranty covering parts, electronics, and batteries, it is a dependable choice for a rack-mount UPS for data center power in any facility needing high-density, continuously protected power.

Key Features

• 11kVA/11kW Online Double-Conversion Design — Delivers continuous, regenerated power with no transfer event during outages.
• Eight 5-20R, Four L6-30R, and Two L14-30R Connections — Supports a diverse mix of server, PDU, and networking equipment loads.
• Included NETWORK-M3 Gigabit Network Card — Provides Ethernet connectivity for remote monitoring via Brightlayer Data Centers software.
• 4U Rack/Tower Form Factor — Includes rack-mounting hardware and tower support stands for flexible deployment.
• Configurable Output Voltage — Supports 120/240V output with selectable input voltage from 200-240V.
• 3-Year Factory Warranty — Covers parts, electronics, and batteries with standard ground shipping.
• Two Mini-Slot Expansion Ports — Allows additional monitoring or connectivity cards to be added as facility needs grow.

Typical Applications

• Data center
• Edge computing site
• Government facility
• Healthcare facility

Technical Specifications

Frequently Asked Questions

Is this UPS suitable for a data center or edge computing rack?

Yes, the 9PX11KTF11G2 is designed for distributed IT and edge computing environments, providing 11kVA of online double-conversion protection in a 4U rack/tower chassis.

What network monitoring capabilities are included?

The unit ships with a NETWORK-M3 Gigabit network card providing Ethernet connectivity for remote monitoring through Eaton's Brightlayer Data Centers platform.

Can this UPS support a mix of equipment types on different outlet configurations?

Yes, it provides 5-20R, L6-30R, and hardwired L14-30R connections, allowing a mix of server, PDU, and networking equipment to be powered from a single unit.

Does this unit require professional installation?

Given its hardwired output connections and 377-pound weight, professional electrical installation is recommended; contact Creation Networks for installation guidance.

What is the manufacturer warranty on this UPS?

Eaton provides a 3-year limited warranty covering parts, electronics, and batteries.

Can additional monitoring cards be added later?

Yes, the unit includes two Mini-Slot expansion ports for adding further monitoring or connectivity cards as facility requirements grow.

Is this UPS appropriate for healthcare or government facility deployments?

Yes, its high-capacity double-conversion design and remote monitoring capability make it suitable for business, government, healthcare, education, and retail environments requiring dependable backup power.
