Draper Scissor Lift SLX10 - 300250

Product Overview

The Draper SLX10 is a ceiling-mounted electric scissor lift for commercial AV installations requiring a maximum projector drop of 10 feet (120"). The SLX series is the standard for integrators specifying motorized projector lifts in conference rooms, lecture halls, and boardrooms where projector concealment above the ceiling line is required when the system is not in use. The scissor mechanism deploys and retracts on a quiet DC motor with a 150 lb payload capacity.

Product Description

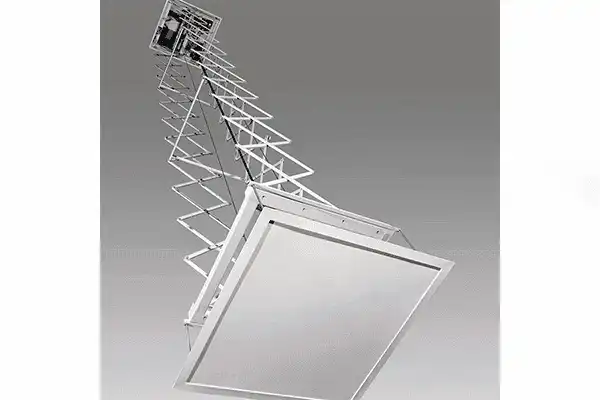

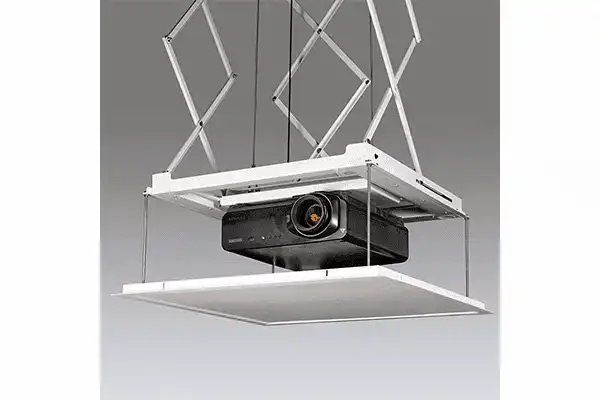

The SLX10 uses Draper's scissor lift mechanism to deploy a ceiling-mounted projector through a ceiling cutout when the system is activated. When retracted, the projector sits flush above the ceiling plane with only a trim ring visible — the preferred specification for executive boardrooms and high-finish commercial spaces where a ceiling-mounted projector bracket is unacceptable.

The SLX10 offers a 10-foot (120") maximum drop — suited for installations with moderate ceiling height-to-throw-distance ratios. A built-in lock-out relay prevents operation while maintenance access panels are open. LED status indicators provide visual confirmation of lift position. The RF remote is included for standalone operation, and the LVC-IV Low Voltage Controller is the standard integration path for Crestron, Extron, AMX, and Control4 systems.

Electrical: 110V single-phase. Contact Creation Networks for rough-in dimensions specific to the projector model being integrated.

Key Features

• 10-foot (120") maximum drop — Suited for moderate-ceiling commercial spaces.
• 150 lb payload capacity — Accommodates large-format laser and lamp projectors.
• Quiet DC motor — Low-noise deployment and retraction.
• Scissor lift mechanism — Conceals projector above ceiling plane when retracted.
• RF remote included — Standalone operation without AV control system required.
• LVC-IV compatible — Integrates with Crestron, Extron, AMX, Control4 via low-voltage.
• Lock-out relay — Prevents operation with access panel open.
• LED status indicators — Visual confirmation of deployed/retracted position.
• 110V single-phase power — Standard commercial electrical supply.
• UL listed — Meets US commercial installation safety requirements.

Typical Applications

• Corporate conference room with projector concealment requirement
• University lecture hall with moderate ceiling height
• Government briefing room with clean ceiling aesthetic
• Executive boardroom requiring hidden projector infrastructure
• Training room with AV control system integration
• Commercial meeting space with ceiling-recessed AV equipment

Technical Specifications

Frequently Asked Questions

What is the SLX10 suited for?
The SLX10 is specified for moderate-ceiling commercial spaces where a 10-foot projector drop provides correct throw geometry. For taller spaces, the SLX14, SLX17, SLX21, SLX24, or SLX28 provide longer drop ranges.

Does it work with Crestron or other control systems?
Yes. The SLX10 integrates with Crestron, Extron, AMX, Control4, and other AV control platforms via the LVC-IV Low Voltage Controller interface.

What projectors are compatible?
Any projector within the 150 lb capacity limit. Contact Creation Networks for projector-specific compatibility.

What is the warranty?
Contact Creation Networks for current Draper warranty terms on the SLX series.
