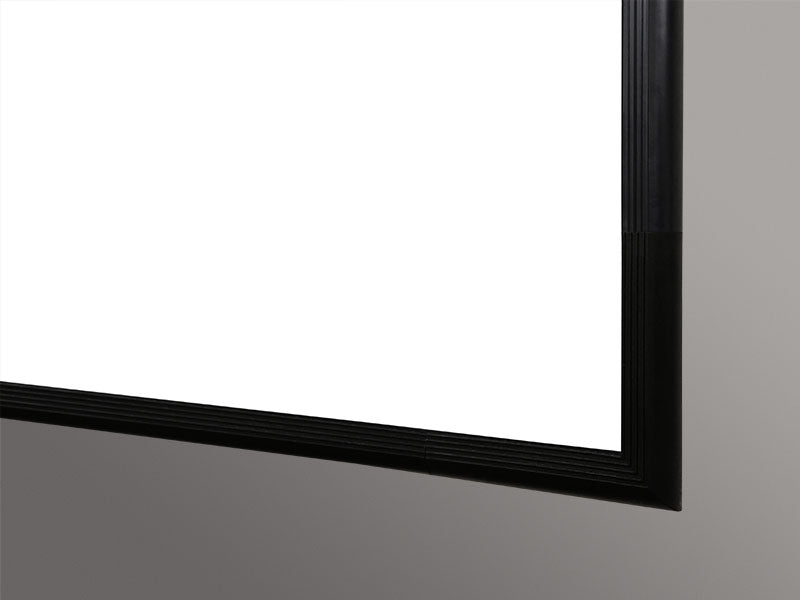

Draper Profile+ 230", CinemaScope Fixed Projection Screen
Product Overview
The Draper Profile+ 230" CinemaScope (2.35:1) fixed frame projection screen delivers a 90" x 211.5" widescreen image for auditoriums, houses of worship, and large commercial venues. Choose your surface using the selector above.
Product Description
The Draper Profile+ is engineered to support large screen sizes without adding bulk. Sliding hook-and-loop attachments tension the surface evenly across the frame, and the mullion-less design supports zero-gap alignment for edge-blended multi-projector arrays. The screen ships unassembled to simplify transport through elevators, stairways, and corridors, and can be wall-mounted (brackets included) or flown (brackets available on request). With no motor or electronics, the screen adds no power or control scope to the AV system.
Key Features
- 230" CinemaScope 2.35:1 image — A 90" x 211.5" viewing area for true widescreen impact.
- Two viewing surface options — Grey XH600V (contrast-enhancing) or ClearSound NanoPerf XT1000V (acoustically transparent for behind-screen speakers).
- Sub-2" installed depth — Clean architectural finish, borderless or with a 5/8" bezel trim.
- Wall-mount or flown — Wall brackets included; flown brackets available on request.
- 5-year Draper warranty — Valid in the United States and Canada.
Typical Applications
- Auditoriums and performing arts centers
- Houses of worship
- Broadcast studios
- Government and commercial meeting spaces
Technical Specifications
| Specification | Value |
|---|---|
| Diagonal Size | 230" |
| Aspect Ratio | CinemaScope 2.35:1 |
| Viewable Image Area | 90" x 211.5" |
| Frame Depth | Under 2" (51 mm) |
| Available Surfaces | Grey XH600V, ClearSound NanoPerf XT1000V |
| Warranty | 5 years (US and Canada) |
Frequently Asked Questions
What surfaces are available for this size?
Grey XH600V or ClearSound NanoPerf XT1000V — both sharing the same 90" x 211.5" image area. Matt White is not offered at this width; see the 233" Profile+ (2.39:1) for a Matt White option at a similar height. Select your preferred surface above.
Can loudspeakers go behind the screen?
Yes, with the ClearSound NanoPerf XT1000V surface — its micro-perforations pass sound from loudspeakers mounted behind the image.
What warranty and support are included?
Supplied through Creation Networks as an authorized Draper dealer, with Draper's 5-year warranty in the US and Canada.
