Draper Acumen XL V, 198", 16:10 Motorized Projection Screen

Product Overview

The Draper Acumen XL V is a surface-mounted, tab-tensioned motorized projection screen built for large-venue commercial installations. This 198" diagonal 16:10 model supports image widths up to 18' (5.5 m) and is available in your choice of viewing surface, voltage, and motor option below.

Product Description

Acumen XL V extends the Acumen platform to large-venue sizes while remaining a surface-mounted screen rather than a ceiling-recessed one, so it installs without a ceiling pocket. The tab-tensioned surface uses RF-welded tabs and a lateral tab-guide cable system to hold the image flat and wrinkle-free at large scale, keeping 16:10 content geometrically accurate for auditoriums, houses of worship, and large all-hands rooms.

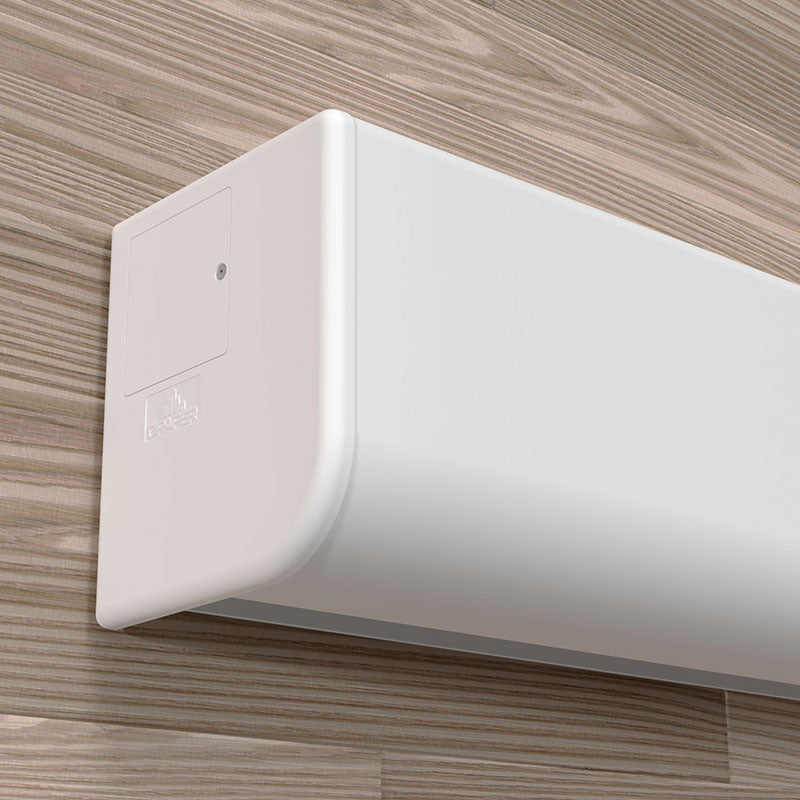

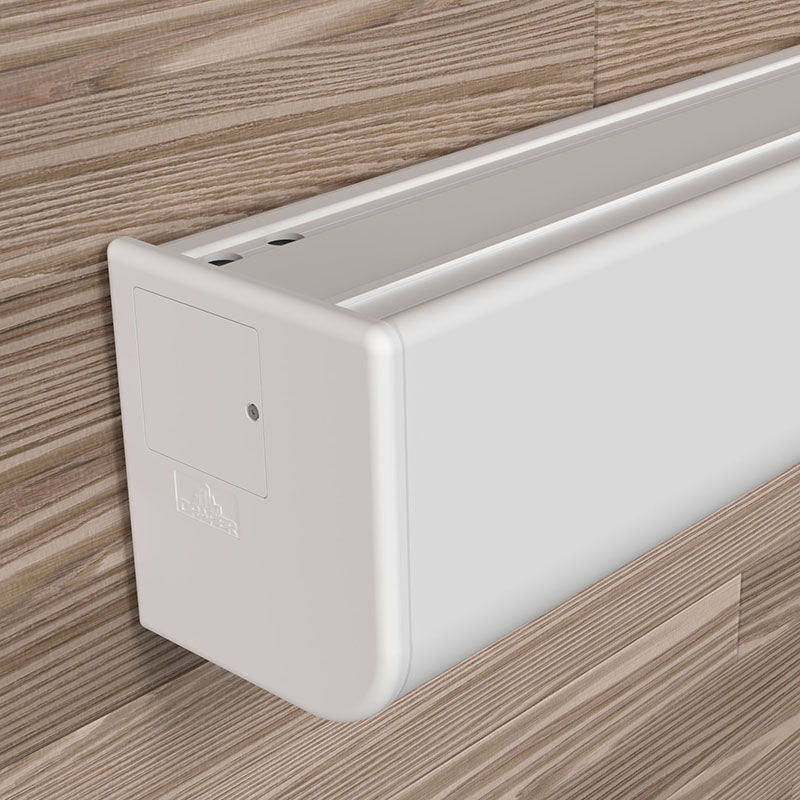

The streamlined extruded-aluminum case measures 9 1/4" high by 8 1/8" deep, finished in white powder coat as standard (black available on request), with a removable fascia for direct access to the roller and motor during service. It ships with a built-in low-voltage controller and wall switch as standard, and integrates with third-party control systems such as Crestron and Control4. Floating mounting brackets and ceiling suspension brackets are included, so the same unit can be wall- or ceiling-mounted without ordering separate hardware.

Contact Creation Networks for configuration support and lead times.

Product Specs

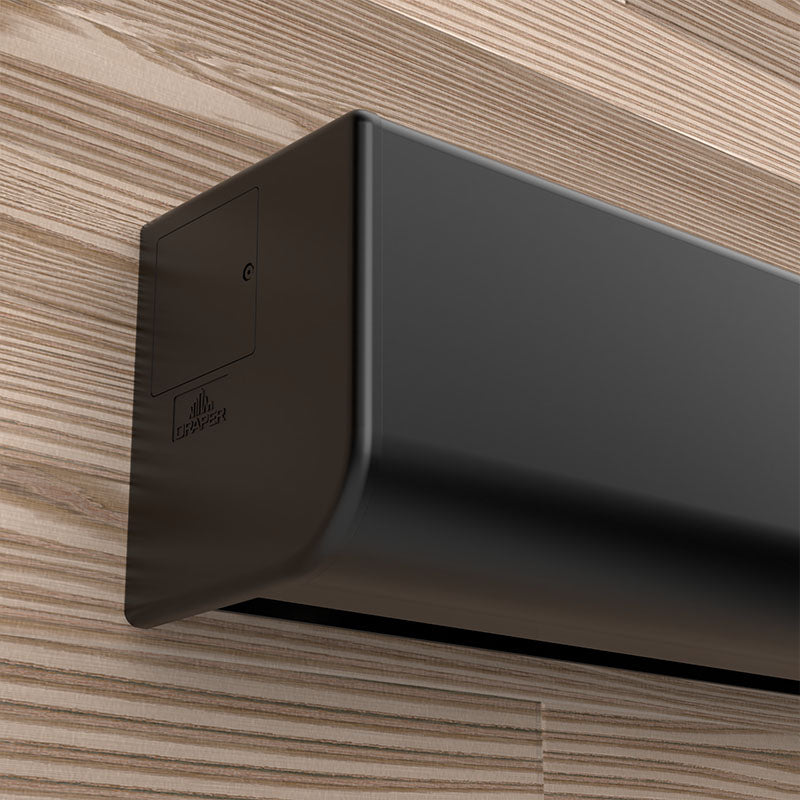

• Case dimensions: 9 1/4" H x 8 1/8" D. Extruded aluminum housing, white powder coat standard (black optional).
• Maximum image width up to 18' (5.5 m) wide.

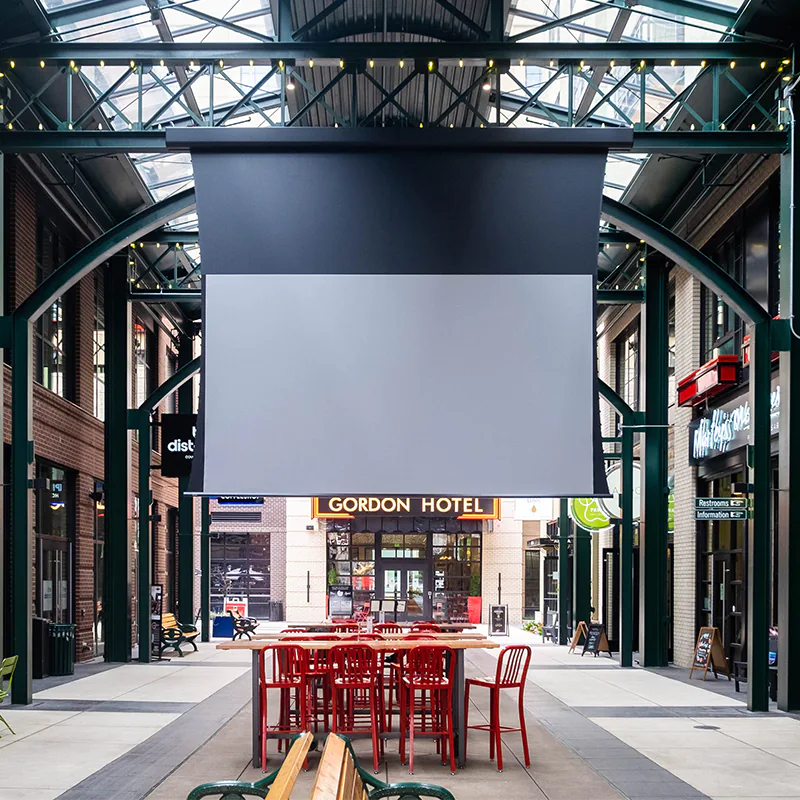

• Full line of Draper viewing surfaces including TecVision available for the Acumen XL V.
• Rear projection surfaces available.
• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
• Fascia removable for easy access to roller and motor for service.
• Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.

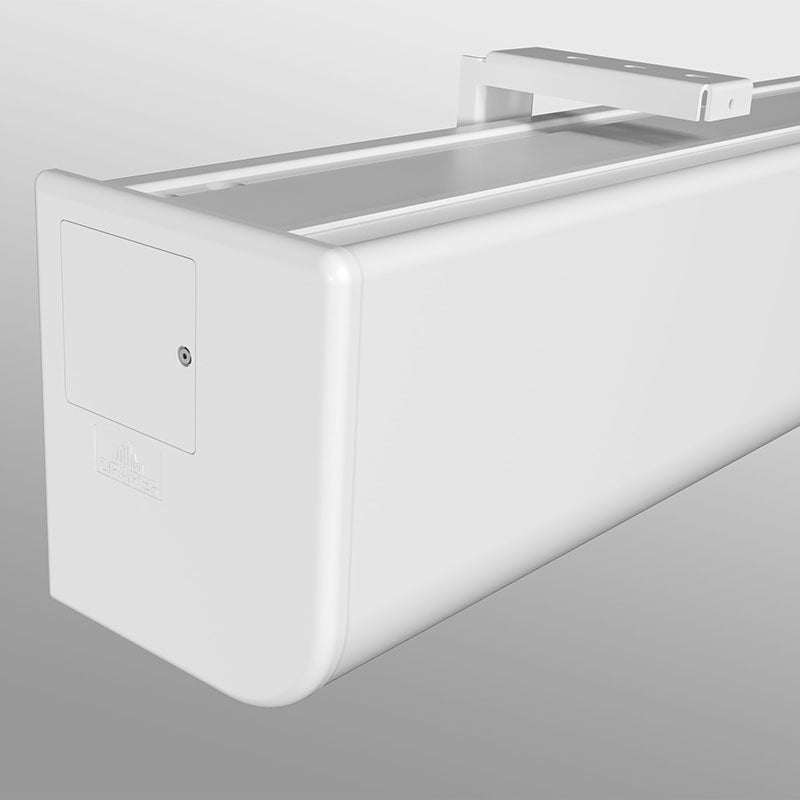

• Floating mounting brackets included; ceiling suspension brackets included.
• Motor: low-voltage tubular motor, instantly reversible, with electric brake and thermal overload protector. Available in 110V or 220V.
• Optional Quiet Motor available on select configurations for noise-sensitive rooms.

Typical Applications

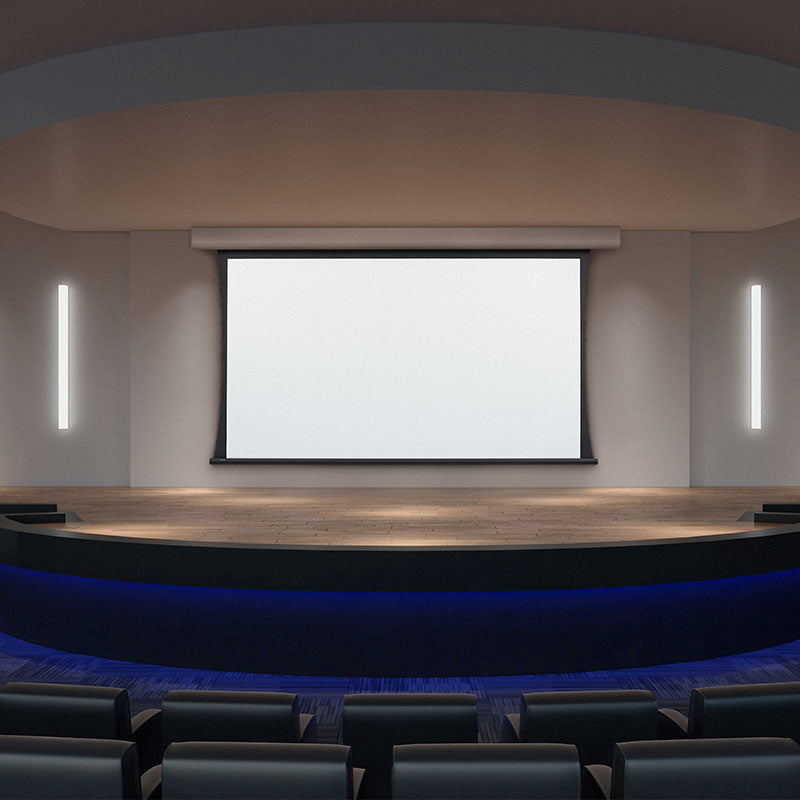

• Auditoriums and performing arts centers
• Houses of worship and large multi-purpose rooms
• Large boardrooms and all-hands spaces
• Lecture halls and large-venue command centers

Technical Specifications

Frequently Asked Questions

Is the Acumen XL V wall-mounted or ceiling-mounted?
It is a surface-mounted screen and ships with both floating wall brackets and ceiling suspension brackets, so it can be installed against a wall or suspended from the structure above. It is not ceiling-recessed.

What voltage options are available?
110V and 220V. Select your preferred voltage above.

Is a quiet motor option available?
Yes, on select configurations, for noise-sensitive rooms. Select the Quiet Motor option above where offered.

Does it integrate with Crestron, Control4, or other control systems?
Yes, via the built-in low-voltage controller.

What is the warranty?
7 years, valid in the United States and Canada.
