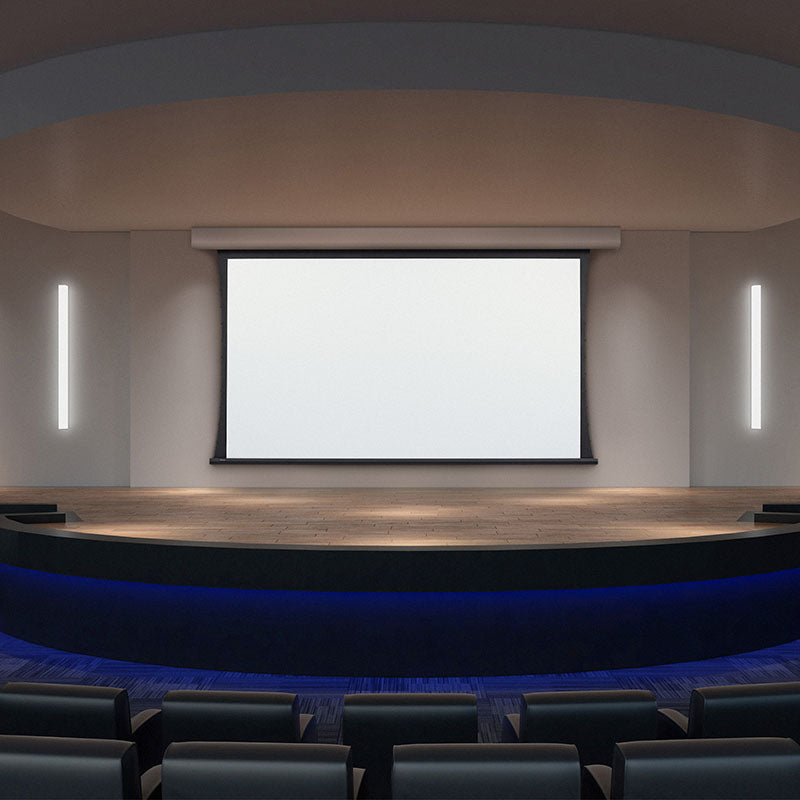

Draper Acumen XL V, 161", HDTV Motorized Projection Screen

Product Overview

The Draper Acumen XL V is a surface-mounted, tab-tensioned motorized projection screen built for large-venue commercial installations. This 161" diagonal HDTV model supports image widths up to 18' (5.5 m) and is available in your choice of viewing surface, voltage, and motor option below.

Product Description

Acumen XL V extends the Acumen platform to large-venue sizes while remaining a surface-mounted screen rather than a ceiling-recessed one, so it installs without a ceiling pocket. The tab-tensioned surface uses RF-welded tabs and a lateral tab-guide cable system to hold the image flat and wrinkle-free at large scale, keeping HDTV content geometrically accurate for auditoriums, houses of worship, and large all-hands rooms.

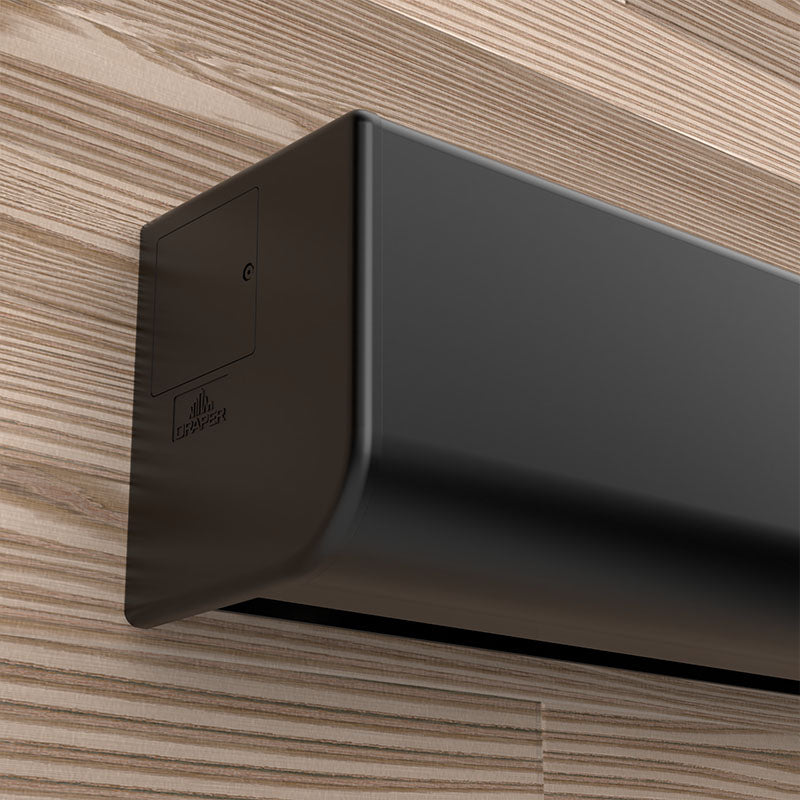

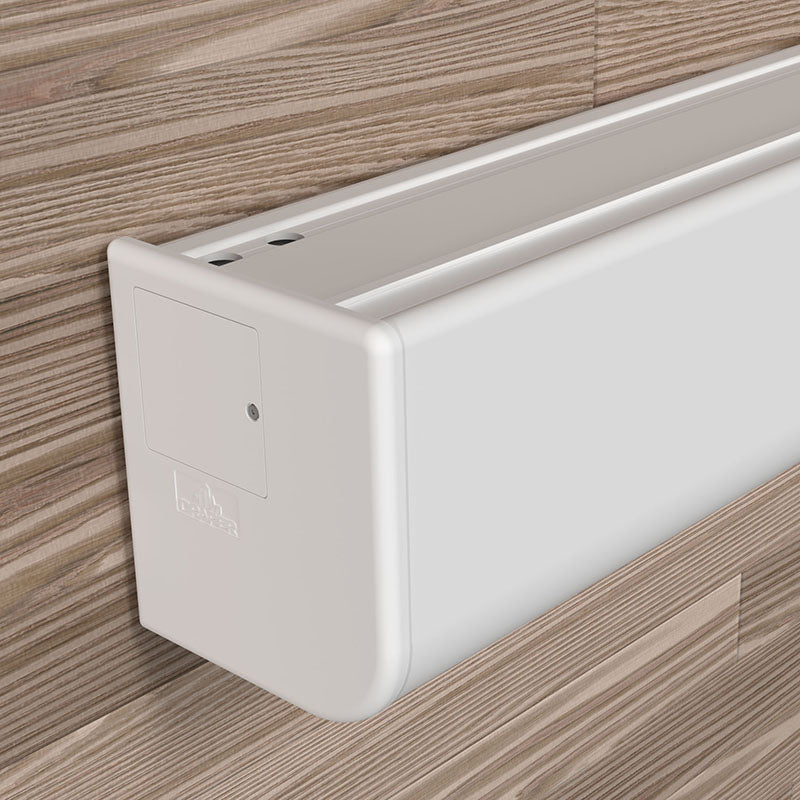

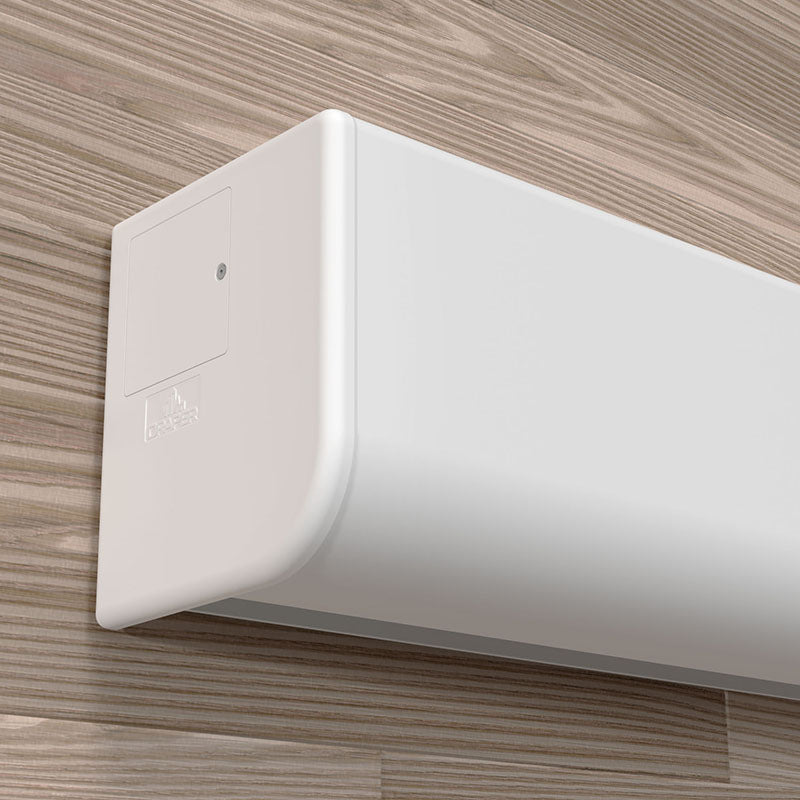

The streamlined extruded-aluminum case measures 9 1/4" high by 8 1/8" deep, finished in white powder coat as standard (black available on request), with a removable fascia for direct access to the roller and motor during service. It ships with a built-in low-voltage controller and wall switch as standard, and integrates with third-party control systems such as Crestron and Control4. Floating mounting brackets and ceiling suspension brackets are included, so the same unit can be wall- or ceiling-mounted without ordering separate hardware.

Contact Creation Networks for configuration support and lead times.

Product Specs

• Case dimensions: 9 1/4" H x 8 1/8" D. Extruded aluminum housing, white powder coat standard (black optional).
• Maximum image width up to 18' (5.5 m) wide.

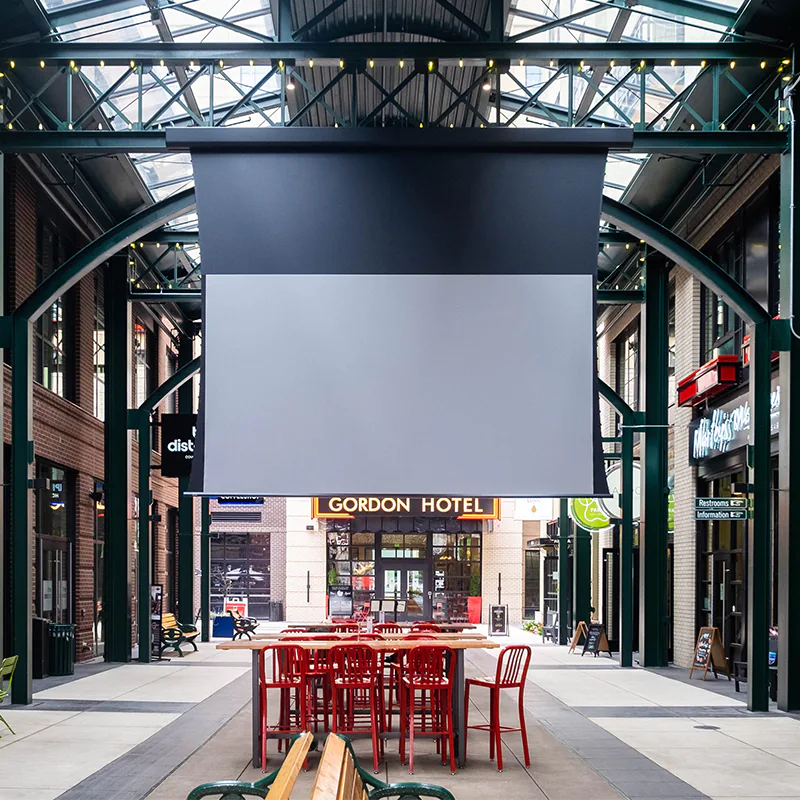

• Full line of Draper viewing surfaces including TecVision available for the Acumen XL V.
• Rear projection surfaces available.
• Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
• Fascia removable for easy access to roller and motor for service.
• Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.

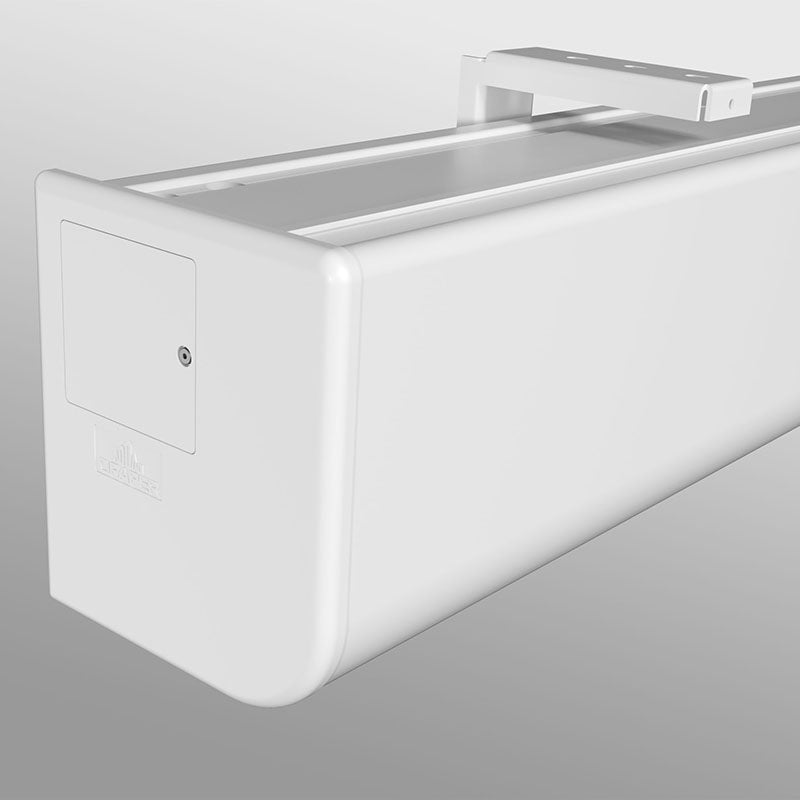

• Floating mounting brackets included; ceiling suspension brackets included.
• Motor: low-voltage tubular motor, instantly reversible, with electric brake and thermal overload protector. Available in 110V or 220V.
• Optional Quiet Motor available on select configurations for noise-sensitive rooms.

Typical Applications

• Auditoriums and performing arts centers
• Houses of worship and large multi-purpose rooms
• Large boardrooms and all-hands spaces
• Lecture halls and large-venue command centers

Technical Specifications

Frequently Asked Questions

Is the Acumen XL V wall-mounted or ceiling-mounted?
It is a surface-mounted screen and ships with both floating wall brackets and ceiling suspension brackets, so it can be installed against a wall or suspended from the structure above. It is not ceiling-recessed.

What voltage options are available?
110V and 220V. Select your preferred voltage above.

Is a quiet motor option available?
Yes, on select configurations, for noise-sensitive rooms. Select the Quiet Motor option above where offered.

Does it integrate with Crestron, Control4, or other control systems?
Yes, via the built-in low-voltage controller.

What is the warranty?
7 years, valid in the United States and Canada.
