Draper Acumen V, 137", 16:10 Motorized Projection Screen
Product Overview
The Draper Acumen V is a surface-mounted, tab-tensioned motorized projection screen built for permanent commercial AV installations that demand a flat, distortion-free viewing surface. This 137" 16:10 model matches widescreen computer and presentation content. Choose your surface and motor option using the selectors above.
Product Description

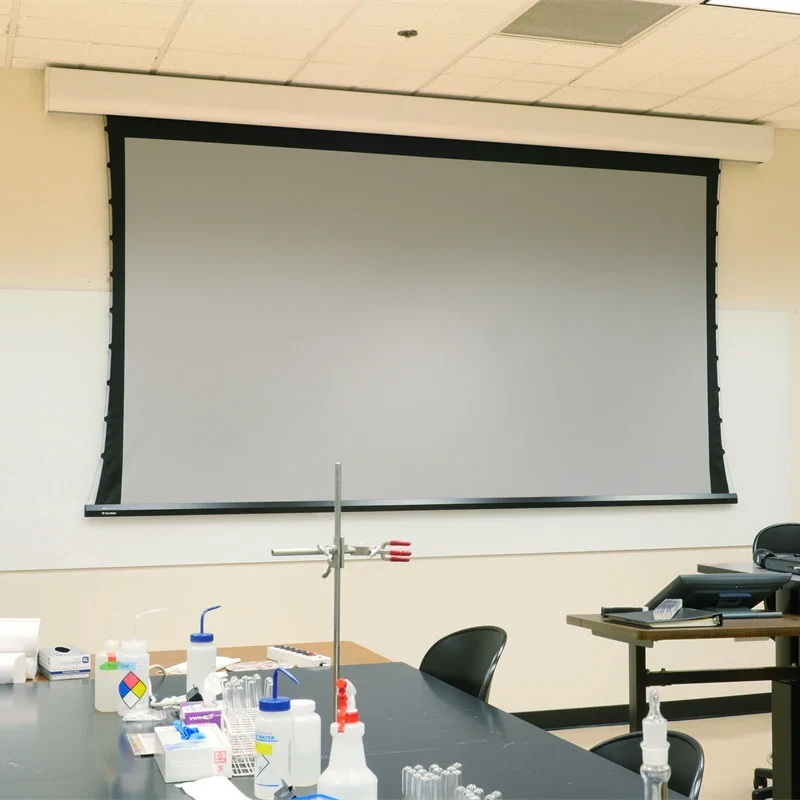

The Draper Acumen V mounts directly to a wall or ceiling and keeps its viewing surface taut edge-to-edge through Draper's tab-tensioning system, eliminating the waves and curl that can appear on non-tensioned screens over time. The contoured aluminum case is finished in white and houses a quiet, reliable AC motor for daily commercial use.
Key Features
- Tab-tensioned surface — Stays flat and taut for a distortion-free image, even at larger sizes.
- 16:10 format — This 137" model matches widescreen computer and presentation content.
- 110V — Standard commercial wiring.
- Standard or Quiet Motor — Choose the Quiet Motor option for sound-sensitive rooms.
- Five viewing surface options — Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, CineFlex White XT700V, or ClearSound NanoPerf XT1000V (acoustically transparent for behind-screen speakers).
Typical Applications
- Corporate conference rooms and boardrooms
- Classrooms and training rooms
- Houses of worship
- Government and municipal meeting spaces
Technical Specifications
| Specification | Value |
|---|---|
| Size | 137" |
| Format | 16:10 |
| Image Area | 72 1/2" x 116" |
| Screen Type | Surface-mounted, tab-tensioned, electric |
| Power | 110V, hardwired |
| Motor Options | Standard or Quiet Motor |
| Available Surfaces | Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, CineFlex White XT700V, ClearSound NanoPerf XT1000V |
Frequently Asked Questions
What's the difference between Standard and Quiet Motor?
The Quiet Motor option runs noticeably quieter, which matters in small conference rooms or sound-sensitive spaces where a motor hum during a meeting is distracting.
What surfaces are available for this size?
Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, CineFlex White XT700V, and ClearSound NanoPerf XT1000V. Select your preferred surface above.
