Draper Access V, 198", 16:10 Tab-Tensioned Projection Screen
Product Overview

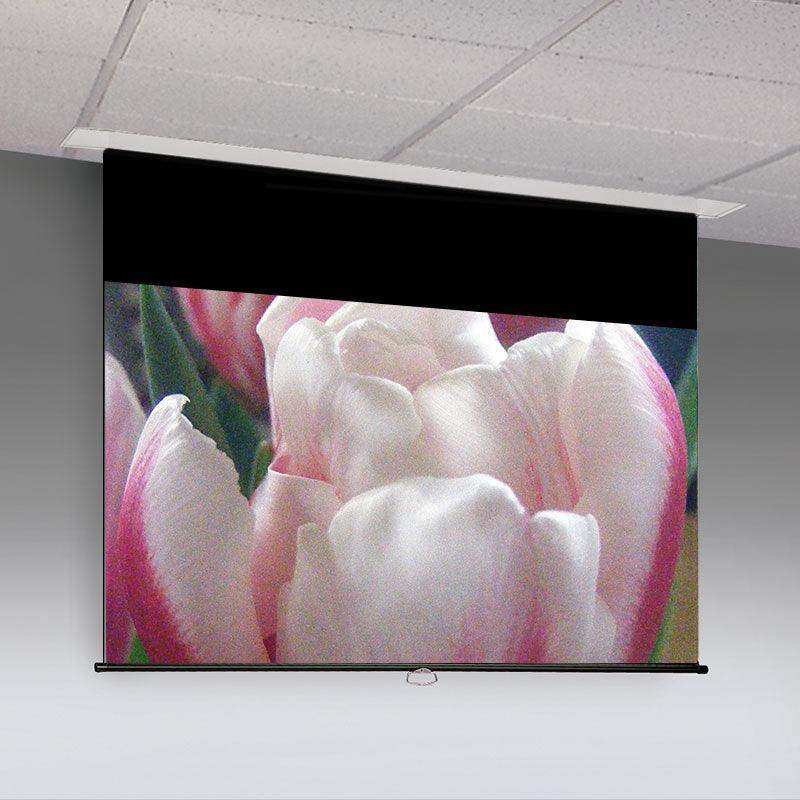

The Draper Access V is a ceiling-recessed, tab-tensioned electric projection screen built for permanent commercial AV installations. This 198" 16:10 model gives a taut, ripple-free viewing surface in a large-format, plenum-rated case. Choose your surface and motor configuration using the selectors above.
Product Description
The Draper Access V electric projection screen uses a tab-tensioned roller/fabric assembly to keep the viewing surface flat and wrinkle-free at any size, a step up from non-tensioned electric screens for spaces where image quality matters. The steel case is finished white as standard, with brackets supporting the roller/fabric assembly sliding in an 18" track so the viewing surface centers in the case regardless of screen size. A standard 110-120V motor lets an operator stop or reverse the screen at any point in its travel, with an LVC-IV low-voltage controller available as an upgrade — selectable above. Viewing surfaces are masked by a 12" black drop.
Key Features
- Tab-tensioned viewing surface — Stays flat and ripple-free at any point in its travel, unlike non-tensioned electric screens.
- 16:10 widescreen format — This 198" large-format model matches the native aspect ratio of modern widescreen content.
- Four viewing surface options — Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, or CineFlex White XT700V to suit room lighting and contrast needs.
- LVC-IV option — Upgrade from the standard motor for low-voltage room-control integration.
- Plenum-rated case — UL Listed "Suitable for Use in Environmental Air Space."
Typical Applications
- Auditoriums and large-venue conference spaces
- Corporate boardrooms requiring a large-format image
- Universities and lecture halls
- Houses of worship
Technical Specifications
| Specification | Value |
|---|---|
| Size | 198" |
| Format | 16:10 |
| Image Area | 105" x 168" |
| Screen Type | Ceiling-recessed electric, tab-tensioned, large-format case |
| Motor | 110-120V AC; standard motor, with optional LVC-IV Low Voltage Controller |
| Available Surfaces | Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, CineFlex White XT700V |
| Certification | UL Listed (U.S. and Canada); plenum-rated case |
Frequently Asked Questions
What surfaces are available for this size?
Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, and CineFlex White XT700V. Select your preferred surface above.
What motor options are available?
Standard 110-120V motor, or with an LVC-IV Low Voltage Controller. At this large-format size, Quiet Motor is not offered. Select your configuration above.
What makes Access V different from a non-tensioned electric screen?
Its tab-tensioned roller/fabric assembly keeps the viewing surface taut and flat at any point in the screen's travel, eliminating the waves and curling that can appear on non-tensioned screens.
How is the case installed?
The case mounts with 3/8" threaded rod, lag screws, or wire in a grid ceiling.
What warranty and support are included?
Access V is UL Listed for the U.S. and Canada, with a plenum-rated case, supplied through Creation Networks as an authorized dealer.
