Draper Access V, 150" HDTV Motorized Projection Screen
Draper Access V, 150" HDTV Motorized Projection Screen - Matt White XT1000VB / Standard / 110 V is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Draper Access V, 150" HDTV Motorized Projection Screen
Product Overview

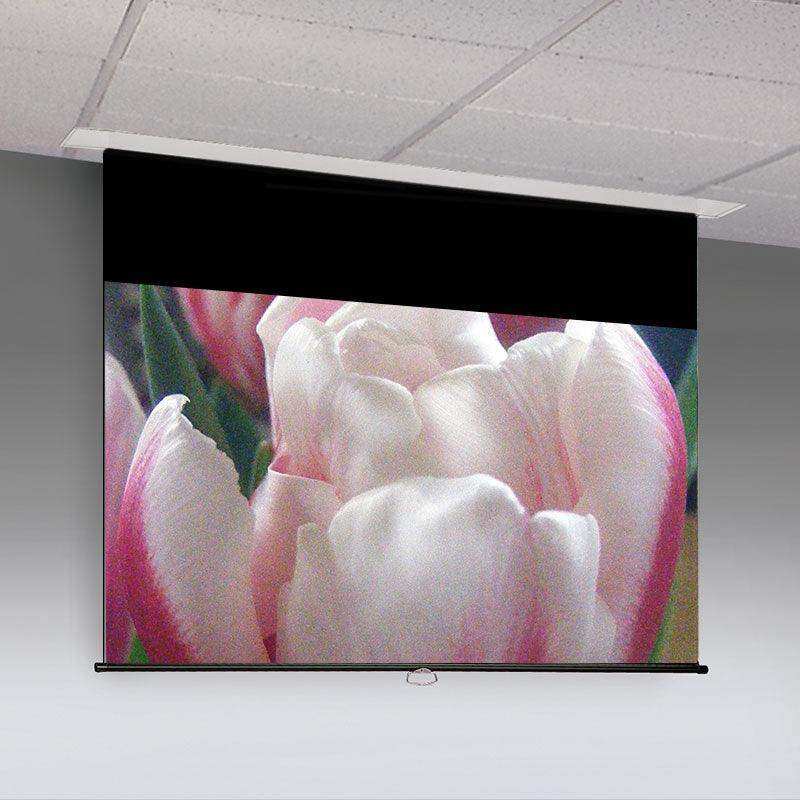

The Draper Access V is a ceiling-recessed, tab-tensioned motorized projection screen built for permanent commercial AV installations that need a concealed screen and a clean ceiling line. This 150" diagonal HDTV (16:9) model recesses fully into a plenum-rated case suitable for air-handling ceiling spaces. Choose your surface and motor configuration using the selectors above.
Product Description
The Draper Access V electric projection screen uses a tab-tensioned roller/fabric assembly that stays flat edge to edge across the full 150" HDTV format, with RF-welded tabs that resist separation and stickiness over time. The steel case measures 7-3/8" high x 8-1/16" deep including the trim flange and is plenum-rated, UL-listed "Suitable for Use in Environmental Air Space." Quick-connect wiring lets the case be installed during early construction and the screen added later to prevent job-site damage. A standard 110-120V motor is included, with Quiet Motor and LVC-IV Low Voltage Controller available as upgrades — selectable above.
Key Features
- Tab-tensioned viewing surface — RF-welded tabs hold the image flat and wrinkle-free across the full 150" diagonal.
- Plenum-rated case — UL Listed for installation in commercial return-air ceiling spaces.
- HDTV 16:9 format — matches native widescreen video and presentation content.
- Four viewing surface options — Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, or CineFlex White XT700V.
- Quiet Motor and LVC-IV options — upgrade from the standard motor for low-noise operation or low-voltage control integration.
Typical Applications
- Corporate boardrooms and large conference rooms
- University lecture halls and training rooms
- Government and municipal meeting spaces
- Multi-purpose rooms and auditoriums
Technical Specifications
| Specification | Value |
|---|---|
| Size | 150" |
| Format | HDTV (16:9) |
| Image Area | 73 1/2" x 130 5/8" |
| Case | 7-3/8" H x 8-1/16" D, plenum-rated, UL Listed |
| Motor | 110-120V standard; Quiet Motor and LVC-IV options available |
| Available Surfaces | Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, CineFlex White XT700V |
Frequently Asked Questions
What surfaces are available for this size?
Matt White XT1000VB, Grey XH600V, CineFlex CH1200V, and CineFlex White XT700V. Select your preferred surface above.
What motor options are available?
Standard 110-120V motor, Quiet Motor, or LVC-IV Low Voltage Controller. Select your configuration above.
Is this screen suitable for air-handling ceiling spaces?
Yes — the case is plenum-rated and UL Listed for use in environmental air space.
