Da-Lite FullVision FC10A49X87 16:9 Parallax 1.0 Fixed Frame Screens (100" Diagonal)
Da-Lite FullVision FC10A49X87 16:9 Parallax 1.0 Fixed Frame Screens (100" Diagonal) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite FullVision FC10A49X87 16:9 Parallax 1.0 Fixed Frame Screens...
Product Overview

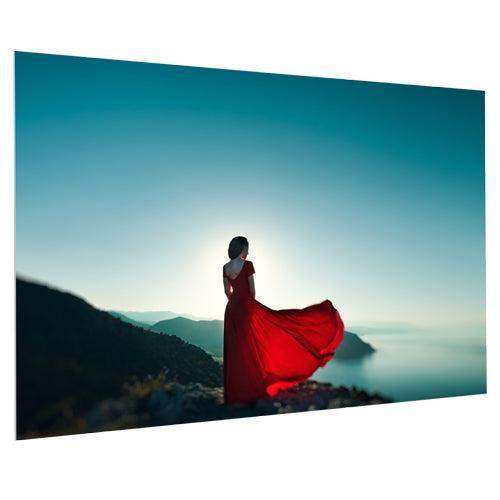

The Da-Lite FullVision FC10A49X87 provides a 100" diagonal HDTV 16:9 borderless fixed frame projection screen with the Parallax 1.0 ambient light rejecting (ALR) surface. At 100" this is the entry-level FullVision FC10A 16:9 size with ALR performance. The 16:9 format is native to 1080p, 4K, and UHD projectors. The aluminum frame installs just 1-3/16" off the wall.
Product Description
The Da-Lite FullVision FC10A49X87 provides a 100" diagonal 16:9 HDTV borderless fixed frame projection screen with the Parallax 1.0 ALR surface. The Parallax 1.0 surface rejects off-axis ambient light while directing projected light toward the primary viewing axis, maintaining image contrast in rooms with significant ambient light. The 16:9 aspect ratio is native to 1080p, 4K, and UHD projectors. The borderless aluminum frame extends only 1-3/16" from the wall. Screen surface attaches via Velcro to the rear of the frame for field replacement. Standard black backing and seamless surface. Wall mounting uses two screws; ceiling cable suspension is available.
Key Features

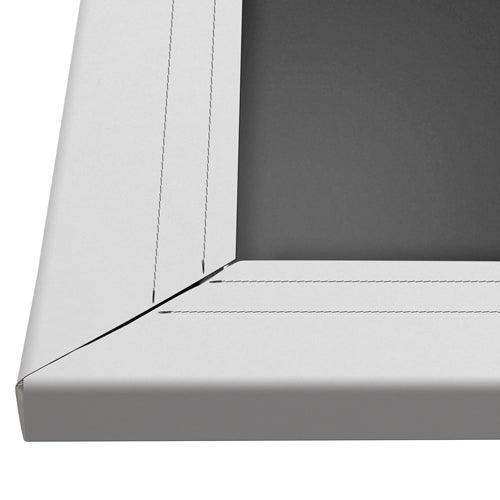

- Borderless Frame Design — No visible frame border; screen blends with the wall when the projector is off.
- Parallax 1.0 ALR Surface — Ambient light rejecting; maintains image contrast in rooms with elevated ambient light.
- Ultra-Low Profile — Only 1-3/16" from wall to screen surface.

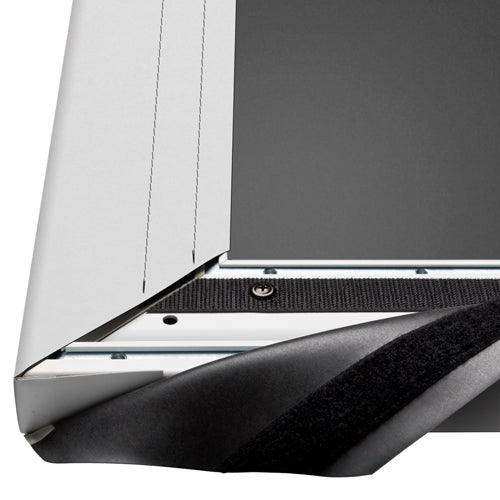

- Velcro Surface Attachment — Field surface replacement without removing the frame.
- Standard Black Backing — Maintains full image contrast.
- Seamless Viewing Surface — No center seam on any model.
- Wall or Ceiling Cable Installation — Two-screw wall bracket or ceiling cable suspension.
Typical Applications
- Smaller conference rooms and executive meeting rooms with elevated ambient light requiring ALR and borderless design at 100"
- Corporate AV installations specifying Parallax 1.0 ALR with borderless fixed frame at an entry-level size
- Dedicated AV suites at 100" where window or architectural light creates projection challenges
- Applications requiring ALR performance combined with a wall-integrated borderless screen appearance
Technical Specifications
| Specification | Value |
|---|---|
| Model | FC10A49X87 |
| Series | FullVision |
| Screen Type | Fixed Frame (Borderless) |
| Format | 16:9 HDTV |
| Diagonal Size | 100" |
| Viewable Area (H×W) | 49" × 87" |
| Screen Surface | Parallax 1.0 (ALR) |
| Gain | 1.0 |
| Wall Depth | 1-3/16" off wall |
| Surface Attachment | Velcro to rear of frame |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: What is the Parallax 1.0 surface?
A: Parallax 1.0 is an ambient light rejecting (ALR) surface that uses angular reflectance to reject off-axis ambient light while directing projected light toward the primary viewing axis.
Q: Can the screen surface be replaced without removing the frame?
A: Yes. The surface attaches to the rear of the frame with Velcro, allowing field surface replacement without disturbing the frame mounting.
Q: How does FullVision differ from Cinema Contour or UTB Contour?
A: The FullVision is borderless — no visible frame surrounds the projection area. All fixed frame series are available at creationnetworks.net.
Q: What is the installation method?
A: The aluminum frame mounts to two screws in the wall, or can be hung from ceiling cables as an alternate installation.
