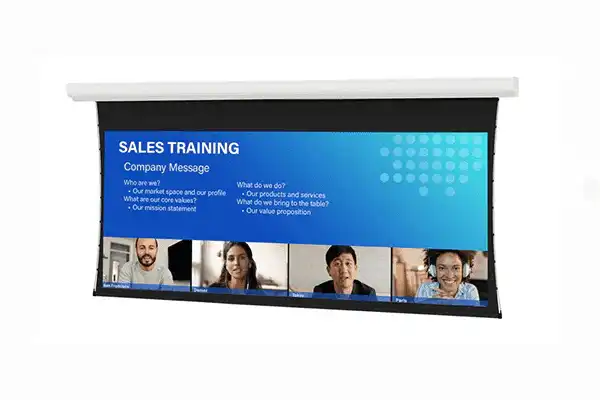

Da-Lite DL15731L 174" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 01.1)
Da-Lite DL15731L 174" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 01.1) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15731L 174" Tensioned Contour Ultra-Wide Projection ...
Product Overview
The Da-Lite Tensioned Contour Ultra-Wide is a wall or ceiling-mounted motorized projection screen in 21:9 format, purpose-built for hybrid video conferencing environments. This 174" diagonal model (DL15731L) features the HD Progressive 1.1 surface — a standard-gain, wide-viewing-angle surface compatible with all projector types including 1080p, 4K, and Ultra HD. At 21:9 format, the screen spans the full width of a conference table view, enabling unified display of remote participants, shared content, and in-room camera feeds on a single panoramic surface without splitting content across multiple displays. The TruGuide tensioning system and Smooth Roll Technology maintain a consistently flat, wrinkle-free surface throughout the product's service life. The Tensioned Contour Ultra-Wide is also available in 16:9 HDTV format — see the Tensioned Contour Electrol series at creationnetworks.net.
Product Description
The Da-Lite Tensioned Contour Ultra-Wide 174" DL15731L mounts directly to a wall or ceiling surface without requiring a recessed housing. The 21:9 ultra-wide format is the standard for hybrid video conferencing deployments, enabling a single projector and screen solution in place of a multi-display video wall. The HD Progressive 1.1 surface provides a gain of 1.1 with a wide horizontal viewing cone, making it suitable for large conference rooms and boardrooms where audience members are seated across a broad angle from the screen, and where a standard-output projector is being specified. The Silent Drive System minimizes motor noise during screen travel. Standard LVC with a three-button Decora wall switch is included. Optional SCB-100 or SCB-200 RS-232 serial control boards and Video Projector Interface are available as factory options. TruGuide tensioning applies uniform tension across the full ultra-wide surface. The 5-year limited warranty covers all motorized components and screen surface materials.
Key Features
- 21:9 Ultra-Wide Format — Single-screen solution for hybrid video conferencing; eliminates the need for multi-display configurations.
- Wall or Ceiling Mount Installation — No recessed housing required; suitable for retrofit and standard commercial construction.
- TruGuide Electric Screen Tensioning System — Uniform surface tension across the full ultra-wide viewing area.
- Standard Silent Drive System — Near-silent motor operation for conference rooms and boardrooms.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles.
- Standard Low Voltage Control (LVC) — Dry contact relay integration with AV control systems.
- Optional RS-232 Control (SCB-100/SCB-200) — Factory-installed serial board for Crestron, AMX, Extron integration.
- Standard 12" Black Drop — Visual separation between housing and viewing area top edge.
- HD Progressive 1.1 Surface (Gain 1.1) — Wide-angle standard-gain surface; compatible with all projector types including 4K and Ultra HD.
- Five-Year Limited Warranty — Coverage on all motorized components and surface materials.
Typical Applications
- Executive boardrooms and large conference rooms requiring 21:9 hybrid meeting capability
- Corporate collaboration spaces with standard-output projectors
- Government and institutional hybrid conference facilities
- University and higher education conference suites
- Commercial training rooms with wide audience seating configurations
Technical Specifications
| Specification | Value |
|---|---|
| Series | Tensioned Contour Ultra-Wide |
| Part Number | DL15731L |
| Screen Type | Electric / Motorized (Wall or Ceiling Mounted) |
| Format | 21:9 Ultra-Wide |
| Viewable Diagonal | 174" |
| Screen Surface | HD Progressive 1.1 |
| Gain | 1.1 |
| Black Drop | 12" standard |
| Motor | Standard 120V (60Hz) |
| Control | LVC with 3-button Decora switch; optional SCB-100/200 RS-232, VPI trigger |
| Case Finish | White powder-coated aluminum (black available on request) |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Does this screen require a recessed ceiling opening?
A: No. The Tensioned Contour Ultra-Wide mounts directly to a wall or ceiling surface without a recessed housing. Contact Creation Networks at creationnetworks.net for recessed installation alternatives.
Q: Why choose 21:9 ultra-wide format for a conference room?
A: The 21:9 format enables unified display of video conferencing feeds and shared content on a single screen, creating an equitable meeting experience for both in-room and remote participants without requiring a multi-display video wall.
Q: What control interfaces are available?
A: Standard LVC with a 3-button Decora wall switch is included. Optional SCB-100, SCB-200 RS-232, and VPI trigger are factory-installed options.
Q: Is this screen compatible with 4K and UHD projectors?
A: Yes. HD Progressive 1.1 supports 1080p, 4K, and Ultra HD projection.
Q: Can I add RS-232 control after installation?
A: RS-232 control must be factory-installed. Contact Creation Networks at creationnetworks.net before ordering.
