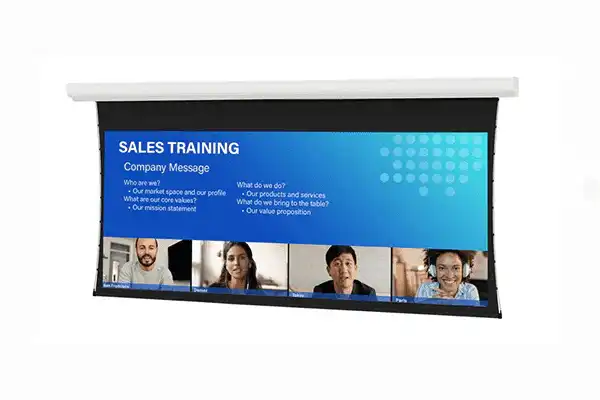

Da-Lite DL15729L 174" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 0.6)
Da-Lite DL15729L 174" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 0.6) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15729L 174" Tensioned Contour Ultra-Wide Projection ...
Product Overview
The Da-Lite Tensioned Contour Ultra-Wide is a wall or ceiling-mounted motorized projection screen in 21:9 format, purpose-built for hybrid video conferencing environments where all meeting participants — in-room and remote — must be seen and heard equitably on a single contiguous display surface. This 174" diagonal model (DL15729L) features the HD Progressive 0.6 surface — a high-contrast, low-gain surface optimized for high-lumen 4K and Ultra HD projectors in spaces with challenging ambient light conditions. At 21:9 format, the screen spans the full width of a conference table view, eliminating the need to split the presentation across multiple displays. The TruGuide tensioning system and Smooth Roll Technology maintain a consistently flat, wrinkle-free surface throughout the product's service life. The Tensioned Contour Ultra-Wide is also available in 16:9 HDTV format — see the Tensioned Contour Electrol series at creationnetworks.net.
Product Description
The Da-Lite Tensioned Contour Ultra-Wide 174" DL15729L mounts directly to a wall or ceiling surface without requiring a recessed housing, making it a practical choice for new construction and retrofit boardroom or conference room installations. The 21:9 ultra-wide format has become the standard for hybrid video conferencing deployments, enabling unified display of remote participants, shared content, and in-room camera feeds in a single panoramic view. The HD Progressive 0.6 surface delivers a gain of 0.6 with superior ambient light rejection — the recommended choice when high-lumen projectors are specified and when partial ambient light control is present in the room. The Silent Drive System minimizes motor noise during screen travel. A standard 12" black drop provides visual separation at the top of the viewing area. Standard Low Voltage Control (LVC) with a three-button Decora wall switch is included for standalone operation. Optional SCB-100 or SCB-200 RS-232 serial control boards and Video Projector Interface are available as factory options. TruGuide tensioning applies uniform tension across the full ultra-wide surface. The 5-year limited warranty covers all motorized components and screen surface materials.
Key Features
- 21:9 Ultra-Wide Format — Enables unified display of hybrid video conferencing content, shared presentations, and remote participant feeds on a single panoramic projection surface.
- Wall or Ceiling Mount Installation — Attaches directly to wall or ceiling surface without a recessed housing; suitable for retrofit and standard commercial construction.
- TruGuide Electric Screen Tensioning System — Maintains uniform surface tension across the full ultra-wide viewing area, eliminating wrinkles and surface distortion.
- Standard Silent Drive System — Near-silent motor operation for boardrooms and conference rooms.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles, maintaining flatness over extended service life.
- Standard Low Voltage Control (LVC) — Dry contact relay integration with third-party AV control systems.
- Optional RS-232 Control (SCB-100/SCB-200) — Factory-installed serial board for Crestron, AMX, Extron, and other control system integration.
- Standard 12" Black Drop — Visual separation between housing and top edge of viewing area.
- HD Progressive 0.6 Surface (Gain 0.6) — High-contrast surface for high-lumen 4K/UHD projectors; excellent ambient light rejection for large-format hybrid conferencing spaces.
- Five-Year Limited Warranty — Coverage on all motorized components and screen surface materials.
Typical Applications
- Executive boardrooms requiring unified 21:9 hybrid video conferencing display
- Large conference rooms with high-lumen projectors and ambient light
- Corporate collaboration spaces requiring panoramic projection
- Government and institutional conference facilities with hybrid meeting requirements
- University and higher education conference suites
Technical Specifications
| Specification | Value |
|---|---|
| Series | Tensioned Contour Ultra-Wide |
| Part Number | DL15729L |
| Screen Type | Electric / Motorized (Wall or Ceiling Mounted) |
| Format | 21:9 Ultra-Wide |
| Viewable Diagonal | 174" |
| Screen Surface | HD Progressive 0.6 |
| Gain | 0.6 |
| Black Drop | 12" standard |
| Motor | Standard 120V (60Hz) |
| Control | LVC with 3-button Decora switch; optional SCB-100/200 RS-232, VPI trigger |
| Case Finish | White powder-coated aluminum (black available on request) |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Does this screen require a recessed ceiling opening?
A: No. The Tensioned Contour Ultra-Wide mounts directly to a wall or ceiling surface without a recessed housing. For ceiling-recessed installation options, contact Creation Networks at creationnetworks.net.
Q: Why choose 21:9 ultra-wide format for a conference room?
A: The 21:9 format maps directly to the aspect ratio used by leading video conferencing platforms for side-by-side display of remote participants and shared content. It eliminates the need for multiple displays and delivers a more immersive, equitable meeting experience for hybrid teams.
Q: What control interfaces are available?
A: Standard LVC with a 3-button Decora wall switch is included. Optional SCB-100, SCB-200 RS-232, and Video Projector Interface (VPI) are factory-installed options.
Q: Is this screen compatible with 4K and UHD projectors?
A: Yes. HD Progressive 0.6 is designed for high-lumen 4K and Ultra HD projection in large-format environments.
Q: Can I add RS-232 control after installation?
A: RS-232 control must be factory-installed. Contact Creation Networks at creationnetworks.net before ordering if RS-232 integration is required.
