Da-Lite DL15725L 156" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 1.3)
Da-Lite DL15725L 156" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 1.3) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15725L 156" Tensioned Contour Ultra-Wide Projection ...
Product Overview

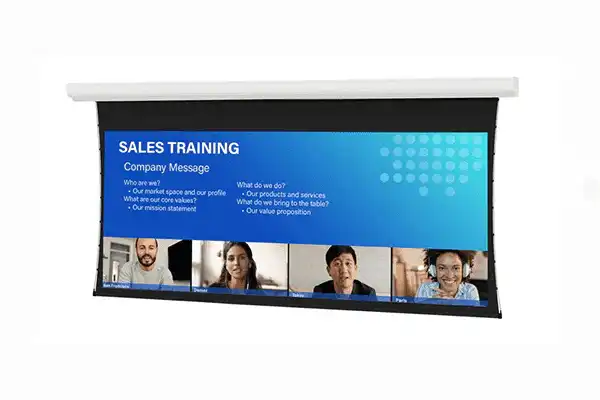

The Da-Lite Tensioned Contour Ultra-Wide is a wall or ceiling-mounted motorized projection screen in 21:9 format, purpose-built for hybrid video conferencing environments. This 156" diagonal model (DL15725L) features the HD Progressive 1.3 surface — a higher-gain surface designed for longer-throw or lower-lumen projector configurations requiring added screen brightness. At 21:9 format, the screen delivers a unified panoramic display of meeting content and participants. The TruGuide tensioning system and Smooth Roll Technology maintain a consistently flat surface throughout the product's service life. The Tensioned Contour Ultra-Wide is also available in 16:9 HDTV format — see the Tensioned Contour Electrol series at creationnetworks.net.
Product Description
The Da-Lite Tensioned Contour Ultra-Wide 156" DL15725L mounts directly to a wall or ceiling surface without a recessed housing. The HD Progressive 1.3 surface provides a gain of 1.3, concentrating more of the projector's output toward the center of the viewing cone. This is the preferred choice when the installed projector has a longer throw ratio than ideal for the room, or when projector lumen output is lower than recommended — the higher gain compensates with added on-axis brightness across the ultra-wide viewing area. The Silent Drive System minimizes motor noise. Standard LVC with a three-button Decora wall switch is included. Optional SCB-100 or SCB-200 RS-232 and VPI are available as factory options. TruGuide tensioning applies uniform tension across the full ultra-wide surface. The 5-year limited warranty covers all motorized components and screen surface materials.
Key Features
- 21:9 Ultra-Wide Format — Single-screen solution for hybrid video conferencing and panoramic presentation.
- Wall or Ceiling Mount Installation — No recessed housing required; suitable for retrofit and new construction.
- TruGuide Electric Screen Tensioning System — Uniform surface tension across the full ultra-wide viewing area.
- Standard Silent Drive System — Near-silent motor operation for conference rooms and boardrooms.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles.
- Standard Low Voltage Control (LVC) — Dry contact relay integration with AV control systems.
- Optional RS-232 Control (SCB-100/SCB-200) — Factory-installed serial board for Crestron, AMX, Extron integration.
- Standard 12" Black Drop — Visual separation between housing and viewing area top edge.
- HD Progressive 1.3 Surface (Gain 1.3) — Higher-gain surface for longer-throw or lower-lumen projector configurations requiring added brightness.
- Five-Year Limited Warranty — Coverage on all motorized components and surface materials.
Typical Applications
- Conference rooms with longer-throw projector installations
- Hybrid meeting rooms with constrained projector lumen output
- Retrofit installations with existing lower-lumen projector infrastructure
- Government and institutional conference facilities
- Corporate rooms requiring brighter images from existing projectors
Technical Specifications
| Specification | Value |
|---|---|
| Series | Tensioned Contour Ultra-Wide |
| Part Number | DL15725L |
| Screen Type | Electric / Motorized (Wall or Ceiling Mounted) |
| Format | 21:9 Ultra-Wide |
| Viewable Diagonal | 156" |
| Screen Surface | HD Progressive 1.3 |
| Gain | 1.3 |
| Black Drop | 12" standard |
| Motor | Standard 120V (60Hz) |
| Control | LVC with 3-button Decora switch; optional SCB-100/200 RS-232, VPI trigger |
| Case Finish | White powder-coated aluminum (black available on request) |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Does this screen require a recessed ceiling opening?
A: No. The Tensioned Contour Ultra-Wide mounts directly to a wall or ceiling surface without a recessed housing. Contact Creation Networks at creationnetworks.net for recessed alternatives.
Q: When should I choose HD Progressive 1.3 over 1.1?
A: Choose 1.3 when the projector throw ratio is longer than ideal or when projector lumen output is lower than recommended for the screen size. The higher gain compensates for brightness loss at longer throws.
Q: What control interfaces are available?
A: Standard LVC with a 3-button Decora wall switch is included. Optional SCB-100, SCB-200 RS-232, and VPI trigger are factory-installed options.
Q: Is this screen compatible with 4K and UHD projectors?
A: Yes. HD Progressive 1.3 supports 1080p, 4K, and Ultra HD projection.
Q: Can I add RS-232 control after installation?
A: RS-232 control must be factory-installed. Contact Creation Networks at creationnetworks.net before ordering.
