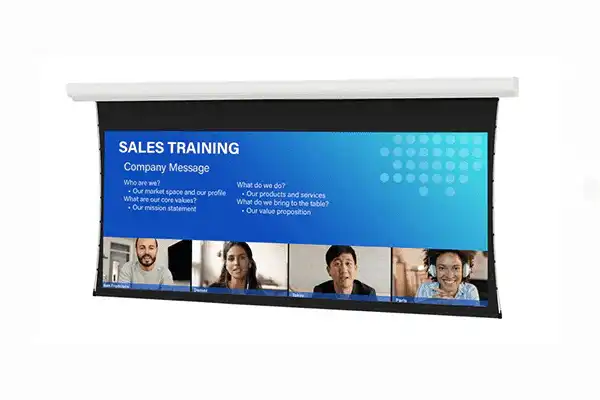

Da-Lite DL15723L 156" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 1.1 Perf)
Da-Lite DL15723L 156" Tensioned Contour Ultra-Wide Projection Screen (HD Progressive 1.1 Perf) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15723L 156" Tensioned Contour Ultra-Wide Projection ...
Product Overview
The Da-Lite Tensioned Contour Ultra-Wide is a wall or ceiling-mounted motorized projection screen in 21:9 format, purpose-built for hybrid video conferencing environments. This 156" diagonal model (DL15723L) features the HD Progressive 1.1 Perf surface — an acoustically transparent perforation pattern that allows loudspeakers to be positioned behind the screen, enabling optimized front-stage audio system design in large conference rooms and boardrooms. At 21:9 format, the screen delivers a unified panoramic display of meeting content and participants. The TruGuide tensioning system and Smooth Roll Technology maintain a consistently flat surface throughout the product's service life. The Tensioned Contour Ultra-Wide is also available in 16:9 HDTV format — see the Tensioned Contour Electrol series at creationnetworks.net.
Product Description
The Da-Lite Tensioned Contour Ultra-Wide 156" DL15723L mounts directly to a wall or ceiling surface without a recessed housing. The HD Progressive 1.1 Perf surface maintains the standard gain and wide viewing angle of HD Progressive 1.1 while adding acoustic transparency, allowing sound from center-channel and left/right speakers positioned behind the screen to pass through with minimal insertion loss. This design approach eliminates the need to place loudspeakers at the sides of the screen — an important consideration in large hybrid conferencing spaces where audio reinforcement is part of the AV system design. The Silent Drive System minimizes motor noise. Standard LVC with a three-button Decora wall switch is included. Optional SCB-100 or SCB-200 RS-232 and VPI are available as factory options. TruGuide tensioning applies uniform tension across the full ultra-wide surface. The 5-year limited warranty covers all motorized components and screen surface materials.
Key Features
- 21:9 Ultra-Wide Format — Single-screen solution for hybrid video conferencing and panoramic presentation.
- Wall or Ceiling Mount Installation — No recessed housing required; suitable for retrofit and new construction.
- TruGuide Electric Screen Tensioning System — Uniform surface tension across the full ultra-wide viewing area.
- Standard Silent Drive System — Near-silent motor operation for conference rooms and boardrooms.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles.
- Standard Low Voltage Control (LVC) — Dry contact relay integration with AV control systems.
- Optional RS-232 Control (SCB-100/SCB-200) — Factory-installed serial board for Crestron, AMX, Extron integration.
- Standard 12" Black Drop — Visual separation between housing and viewing area top edge.
- HD Progressive 1.1 Perf Surface — Acoustically Transparent — Allows loudspeakers behind the screen for optimized front-stage AV system design.
- Five-Year Limited Warranty — Coverage on all motorized components and surface materials.
Typical Applications
- Large conference rooms with in-screen loudspeaker placement requirements
- Hybrid meeting spaces requiring integrated audio-visual system design
- Executive boardrooms with AV consultant specifications requiring center-channel audio
- Government and institutional conference facilities
- University hybrid learning spaces with front-stage audio requirements
Technical Specifications
| Specification | Value |
|---|---|
| Series | Tensioned Contour Ultra-Wide |
| Part Number | DL15723L |
| Screen Type | Electric / Motorized (Wall or Ceiling Mounted) |
| Format | 21:9 Ultra-Wide |
| Viewable Diagonal | 156" |
| Screen Surface | HD Progressive 1.1 Perf (Acoustically Transparent) |
| Gain | 1.1 |
| Black Drop | 12" standard |
| Motor | Standard 120V (60Hz) |
| Control | LVC with 3-button Decora switch; optional SCB-100/200 RS-232, VPI trigger |
| Case Finish | White powder-coated aluminum (black available on request) |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Does this screen require a recessed ceiling opening?
A: No. The Tensioned Contour Ultra-Wide mounts directly to a wall or ceiling surface without a recessed housing. Contact Creation Networks at creationnetworks.net for recessed alternatives.
Q: Is the perforated surface compatible with 4K projectors?
A: Yes. The perforation density in the HD Progressive 1.1 Perf surface is below the resolution threshold of current 4K/UHD projectors at normal viewing distances.
Q: What control interfaces are available?
A: Standard LVC with a 3-button Decora wall switch is included. Optional SCB-100, SCB-200 RS-232, and VPI trigger are factory-installed options.
Q: Why choose 21:9 ultra-wide format?
A: The 21:9 format enables unified display of video conferencing feeds and shared content on a single screen for equitable hybrid meeting experiences.
Q: Can I add RS-232 control after installation?
A: RS-232 control must be factory-installed. Contact Creation Networks at creationnetworks.net before ordering.
