Da-Lite DL15688L 156" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 1.1 Contrast)

Product Overview

The Da-Lite Tensioned Advantage with SightLine 156" 21:9 Ultra-Wide Projection Screen (DL15688L) with HD Progressive 1.1 Contrast surface is a ceiling recessed 21:9 ultra-wide projection screen with a gray-base surface engineered to improve black levels and contrast ratio for DLP and LCD projector installations in rooms with moderate ambient light. This Da-Lite SightLine floating screen commercial AV product delivers 1.1 gain with a gray base that absorbs ambient light rather than reflecting it, significantly improving perceived contrast in rooms where full light control is not achievable. The HD Progressive 1.1 Contrast surface is the preferred specification for high-contrast boardroom presentations, executive screening rooms, and DLP/LCD projector installations at the 156" format. At approximately 71" H x 133" W, this Da-Lite Tensioned Advantage electric screen boardroom model delivers an elevated contrast experience for executive and government conference facilities.

Product Description

The Da-Lite Tensioned Advantage with SightLine is a ceiling-recessed electric projection screen engineered for commercial AV installations requiring architectural integration and high performance. At 156" diagonal in 21:9 ultra-wide format (approximately 71" H x 133" W), this model suits large boardrooms and executive conference spaces. The SightLine cable-drop system creates a floating screen appearance with 70"/180cm variable positioning. The two-stage installation installs the case during rough-in and the surface assembly during finishing. The 21:9 ultra-wide format supports hybrid video conferencing. The HD Progressive 1.1 Contrast gray-base surface improves black levels and contrast ratio for DLP and LCD projectors in moderate ambient light. TruGuide electric tensioning, Smooth Roll Technology, LVC, and UL 2043 Plenum Rated case are standard. This Da-Lite commercial projection screen installation is backed by a 5-year limited warranty.

Key Features

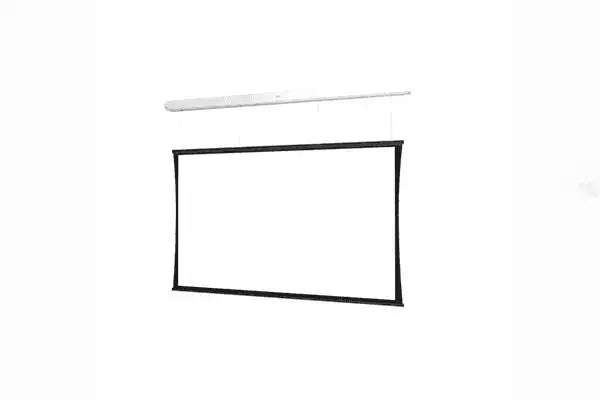

• SightLine Cable-Drop System — Replaces black drop fabric with 3–4 thin cables, creating a floating screen appearance and allowing variable vertical positioning up to 70" from ceiling to screen top edge.

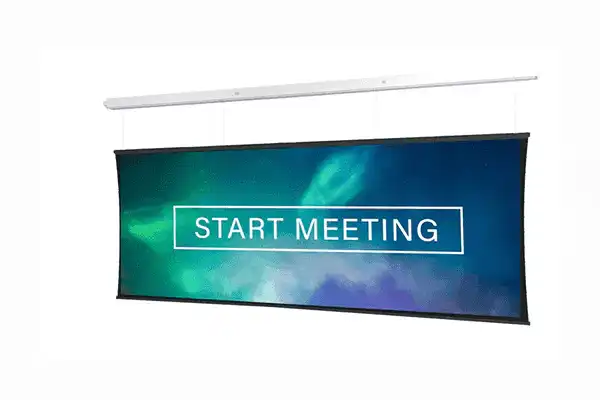

• 21:9 Ultra-Wide Format — Designed for hybrid video conferencing solutions displaying in-room and remote participants simultaneously on a single surface.
• Two-Stage Installation — Case installs during rough-in construction; surface assembly during finishing stage, reducing coordination requirements between trades.
• TruGuide Electric Tensioning System — Maintains uniform surface tension across the full viewing area to eliminate wrinkles and surface distortion.
• Smooth Roll Technology — Prevents surface deformation during retraction cycles, maintaining flat viewing surface over the product’s service life.
• Standard Low Voltage Control (LVC) — Integrates with third-party AV control systems via dry contact relay without requiring high-voltage switching at the control point.
• UL Plenum Rated Case — Approved for installation in plenum air spaces per UL 2043, meeting commercial building code requirements in most jurisdictions.

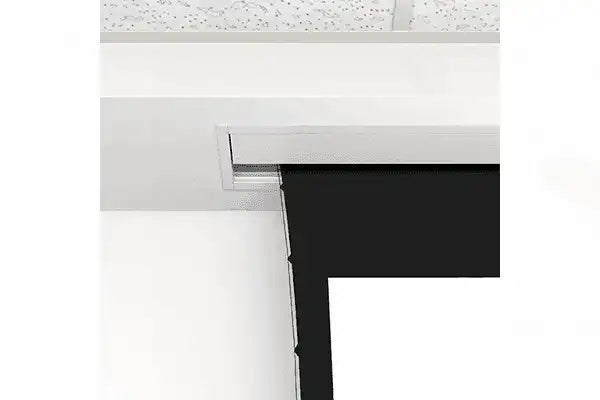

• Ceiling Trim-in-Place Design — White powder-coated aluminum case with closure door conceals the ceiling opening; no additional trim work required after screen installation.
• HD Progressive 1.1 Contrast Gray-Base Surface — 1.1 gain gray surface improves black levels and contrast ratio for DLP/LCD projectors in moderate ambient light environments.
• Seamless Viewing Surface — No center seam; maintains visual continuity across the full 156" ultra-wide viewing area.

Typical Applications

• All-hands rooms and large conference facilities deploying hybrid video conferencing
• Boardrooms requiring high-contrast imaging with DLP or LCD laser projectors
• Executive screening rooms and premium presentation spaces
• Corporate training rooms with ceiling-recessed AV infrastructure
• Government conference spaces with architectural ceiling requirements

Technical Specifications

Frequently Asked Questions

Q: What is the SightLine feature and how does it differ from standard black drop?

A: SightLine replaces the traditional black fabric drop with 3–4 thin cables, creating a floating screen appearance, 70" variable positioning, and open space above the screen for cameras or speakers.

Q: Is this screen compatible with standard AV control systems?

A: Yes. LVC integrates with Crestron, AMX, Extron, QSC via dry contact relay. Contact creationnetworks.net for integration assistance.

Q: What projectors are compatible with the HD Progressive 1.1 Contrast surface?

A: Optimized for DLP and LCD projectors in rooms with moderate ambient light. The gray base improves perceived black levels and contrast ratio. Compatible with most commercial projectors, with the greatest benefit when paired with high-contrast DLP or LCD laser systems.

Q: Can this screen be installed in a plenum air handling space?

A: Yes. UL 2043 Plenum rated per IBC and NFPA 90A requirements.

Q: What is the two-stage installation process?

A: Case installs during rough-in; surface assembly installs during finish phase after painting and ceiling tile work.

Q: What warranty does Da-Lite provide on this product?

A: 5-year limited warranty. Contact Creation Networks at creationnetworks.net.
