Product Overview
The Da-Lite Tensioned Advantage with SightLine 156" 21:9 Ultra-Wide Projection Screen (DL15686L) with HD Progressive 1.1 surface provides a ceiling recessed 21:9 ultra-wide projection screen with a standard-gain matte white surface for broad commercial projector compatibility. This Da-Lite SightLine floating screen commercial AV product delivers a 1.1 gain surface with a wide viewing angle suited for large rooms with seating at varied positions relative to the screen. The 21:9 ultra-wide format is purpose-built for hybrid video conferencing projection screen deployments at the 156" diagonal scale. At approximately 71" H x 133" W, this Da-Lite commercial projection screen installation handles medium-to-large conference rooms and boardrooms across corporate, government, and education verticals.
Product Description
The Da-Lite Tensioned Advantage with SightLine is a ceiling-recessed electric projection screen engineered for commercial AV installations requiring architectural integration and high performance. At 156" diagonal in 21:9 ultra-wide format (approximately 71" H x 133" W viewing surface), this model suits large boardrooms and multi-purpose conference centers. The SightLine cable-drop system creates a floating screen appearance and enables variable vertical positioning within a 70"/180cm range. The two-stage installation process installs the case during rough-in and the surface assembly during the finish phase. The 21:9 ultra-wide format supports hybrid video conferencing. The HD Progressive 1.1 standard matte white surface with 1.1 gain offers wide viewing angle compatibility with virtually all DLP, LCD, and laser projector types. TruGuide electric tensioning, Smooth Roll Technology, LVC control, and UL 2043 Plenum Rated case are all standard. This ceiling recessed electric screen with variable drop height is backed by a 5-year limited warranty.
Key Features

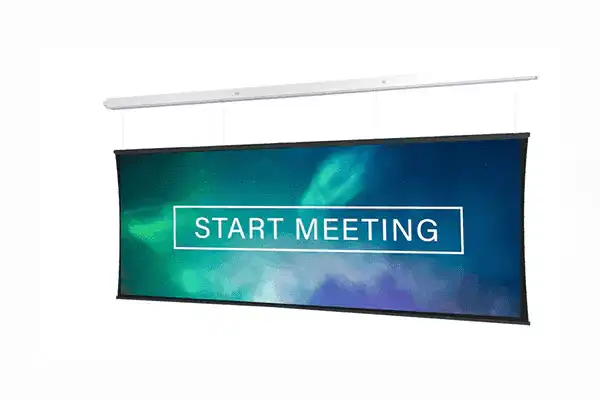

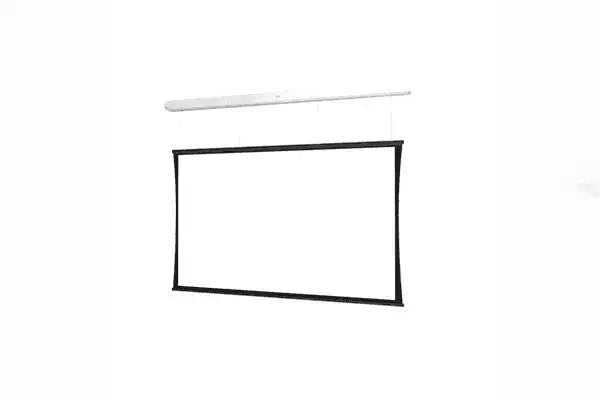

- SightLine Cable-Drop System — Replaces black drop fabric with 3–4 thin cables, creating a floating screen appearance and allowing variable vertical positioning up to 70" from ceiling to screen top edge.
- 21:9 Ultra-Wide Format — Designed for hybrid video conferencing solutions displaying in-room and remote participants simultaneously on a single surface.
- Two-Stage Installation — Case installs during rough-in construction; surface assembly during finishing stage, reducing coordination requirements between trades.
- TruGuide Electric Tensioning System — Maintains uniform surface tension across the full viewing area to eliminate wrinkles and surface distortion.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles, maintaining flat viewing surface over the product’s service life.
- Standard Low Voltage Control (LVC) — Integrates with third-party AV control systems via dry contact relay without requiring high-voltage switching at the control point.
- UL Plenum Rated Case — Approved for installation in plenum air spaces per UL 2043, meeting commercial building code requirements in most jurisdictions.

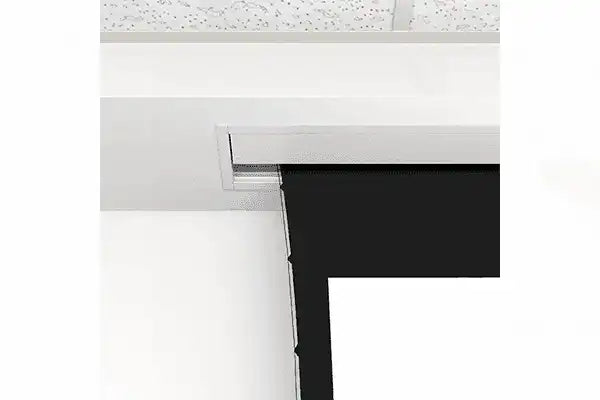

- Ceiling Trim-in-Place Design — White powder-coated aluminum case with closure door conceals the ceiling opening; no additional trim work required after screen installation.
- HD Progressive 1.1 Standard-Gain Surface — Matte white 1.1 gain with wide viewing angle; compatible with virtually all commercial projector types including DLP, LCD, and laser.
- Seamless Viewing Surface — No center seam; maintains visual continuity across the full 156" ultra-wide viewing area.
Typical Applications
- All-hands rooms and large conference facilities deploying hybrid video conferencing
- Boardrooms requiring a premium ceiling-recessed projection solution
- Multi-purpose rooms configured for video collaboration and content display
- Corporate training rooms with ceiling-recessed AV infrastructure
- Government conference spaces with architectural ceiling requirements
Technical Specifications
| Specification | Value |
|---|---|
| Model | DL15686L |
| Screen Type | Electric / Motorized (Ceiling Recessed) |
| Format | 21:9 Ultra-Wide |
| Diagonal Size | 156" |
| Screen Surface | HD Progressive 1.1 |
| Gain | 1.1 |
| Drop System | SightLine Cable-Drop (variable 0–70" / 0–180cm) |
| Motor | Standard 120V |
| Control | Low Voltage Control (LVC), 3-button Decora wall switch included |
| Case Material | White powder-coated aluminum |
| UL Plenum Rating | UL 2043 Plenum Rated |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: What is the SightLine feature and how does it differ from standard black drop?
A: SightLine replaces the traditional black fabric drop with 3–4 thin cables, creating a floating screen appearance, 70" variable positioning range, and open space for cameras or speakers above the screen.
Q: Is this screen compatible with standard AV control systems?
A: Yes. LVC integrates with Crestron, AMX, Extron, QSC via dry contact relay. Contact creationnetworks.net for integration assistance.
Q: What projectors are compatible with the HD Progressive 1.1 surface?
A: Compatible with virtually all commercial DLP, LCD, and laser projector types across a wide range of brightness levels. Wide viewing angle makes it suitable for rooms with varied seating geometry.
Q: Can this screen be installed in a plenum air handling space?
A: Yes. UL 2043 Plenum rated for HVAC plenum return air spaces per IBC and NFPA 90A.
Q: What is the two-stage installation process?
A: Case installs during rough-in; surface assembly installs during finish phase, eliminating coordination issues between trades.
Q: What warranty does Da-Lite provide on this product?
A: 5-year limited warranty. Contact Creation Networks at creationnetworks.net.
