Da-Lite DL15680L 130" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 1.1 Contrast)
Da-Lite DL15680L 130" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 1.1 Contrast) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15680L 130" Tensioned Advantage with SightLine Ultra...
Product Overview
The Da-Lite Tensioned Advantage with SightLine 130" 21:9 Ultra-Wide Projection Screen (DL15680L) with HD Progressive 1.1 Contrast surface is a ceiling recessed 21:9 ultra-wide projection screen with a gray-base surface engineered for improved black levels and contrast ratio in DLP and LCD projector installations with moderate ambient light. This Da-Lite SightLine floating screen commercial AV product delivers 1.1 gain with a gray base that absorbs ambient light rather than reflecting it, enhancing perceived contrast for corporate boardrooms and executive conference spaces at the 130" diagonal. The HD Progressive 1.1 Contrast is the preferred specification for facilities pairing high-contrast DLP or LCD laser projectors with the 21:9 ultra-wide video conferencing projection screen format.
Product Description
The Da-Lite Tensioned Advantage with SightLine is a ceiling-recessed electric projection screen engineered for commercial AV installations. At 130" diagonal in 21:9 ultra-wide format (approximately 59" H x 111" W viewing surface), this model suits medium-to-large boardrooms and executive conference spaces. The SightLine cable-drop system creates a floating screen appearance with 70"/180cm variable positioning. The two-stage installation installs the case during rough-in and the surface assembly during finishing. The HD Progressive 1.1 Contrast gray-base surface improves black levels and contrast ratio for DLP and LCD projectors in moderate ambient light. TruGuide electric tensioning, Smooth Roll Technology, LVC, and UL 2043 Plenum Rated case are standard. This Da-Lite commercial projection screen installation is backed by a 5-year limited warranty.
Key Features

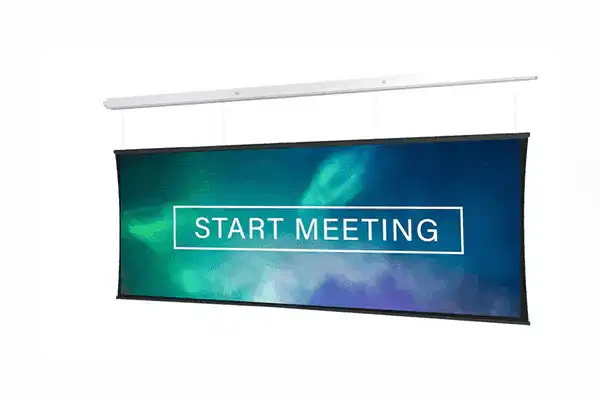

- SightLine Cable-Drop System — Replaces black drop fabric with 3–4 thin cables, creating a floating screen appearance and allowing variable vertical positioning up to 70" from ceiling to screen top edge.
- 21:9 Ultra-Wide Format — Designed for hybrid video conferencing solutions displaying in-room and remote participants simultaneously on a single surface.
- Two-Stage Installation — Case installs during rough-in construction; surface assembly during finishing stage, reducing coordination requirements between trades.
- TruGuide Electric Tensioning System — Maintains uniform surface tension across the full viewing area to eliminate wrinkles and surface distortion.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles, maintaining flat viewing surface over the product’s service life.
- Standard Low Voltage Control (LVC) — Integrates with third-party AV control systems via dry contact relay without requiring high-voltage switching at the control point.
- UL Plenum Rated Case — Approved for installation in plenum air spaces per UL 2043, meeting commercial building code requirements in most jurisdictions.

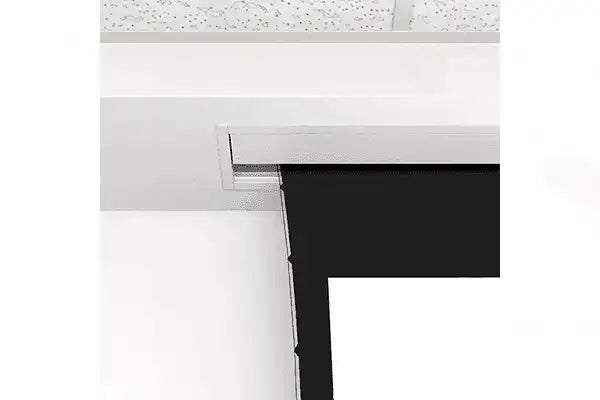

- Ceiling Trim-in-Place Design — White powder-coated aluminum case with closure door conceals the ceiling opening; no additional trim work required after screen installation.
- HD Progressive 1.1 Contrast Gray-Base Surface — 1.1 gain gray surface improves black levels and contrast ratio for DLP/LCD projectors in moderate ambient light environments.
- Seamless Viewing Surface — No center seam; maintains visual continuity across the full 130" ultra-wide viewing area.
Typical Applications
- Boardrooms requiring high-contrast imaging with DLP or LCD laser projectors
- Executive conference spaces and premium presentation rooms
- Medium-to-large conference facilities with moderate ambient light
- Corporate training rooms with ceiling-recessed AV infrastructure
- Government conference spaces with architectural ceiling requirements
Technical Specifications
| Specification | Value |
|---|---|
| Model | DL15680L |
| Screen Type | Electric / Motorized (Ceiling Recessed) |
| Format | 21:9 Ultra-Wide |
| Diagonal Size | 130" |
| Screen Surface | HD Progressive 1.1 Contrast |
| Gain | 1.1 |
| Drop System | SightLine Cable-Drop (variable 0–70" / 0–180cm) |
| Motor | Standard 120V |
| Control | Low Voltage Control (LVC), 3-button Decora wall switch included |
| Case Material | White powder-coated aluminum |
| UL Plenum Rating | UL 2043 Plenum Rated |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: What is the SightLine feature and how does it differ from standard black drop?
A: SightLine replaces the traditional black fabric drop with 3–4 thin cables, creating a floating screen appearance, 70" variable positioning, and open space for cameras or speakers.
Q: Is this screen compatible with standard AV control systems?
A: Yes. LVC integrates with Crestron, AMX, Extron, QSC via dry contact relay. Contact creationnetworks.net for integration assistance.
Q: What projectors are compatible with the HD Progressive 1.1 Contrast surface?
A: Optimized for DLP and LCD projectors in rooms with moderate ambient light. The gray base improves perceived black levels and contrast ratio, with the greatest benefit when paired with high-contrast DLP or LCD laser systems.
Q: Can this screen be installed in a plenum air handling space?
A: Yes. UL 2043 Plenum rated per IBC and NFPA 90A requirements.
Q: What is the two-stage installation process?
A: Case installs during rough-in; surface assembly installs during finish phase after painting and ceiling tile work.
Q: What warranty does Da-Lite provide on this product?
A: 5-year limited warranty. Contact Creation Networks at creationnetworks.net.
