Da-Lite DL15679L 130" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 1.1 Perf)
Da-Lite DL15679L 130" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 1.1 Perf) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15679L 130" Tensioned Advantage with SightLine Ultra...
Product Overview

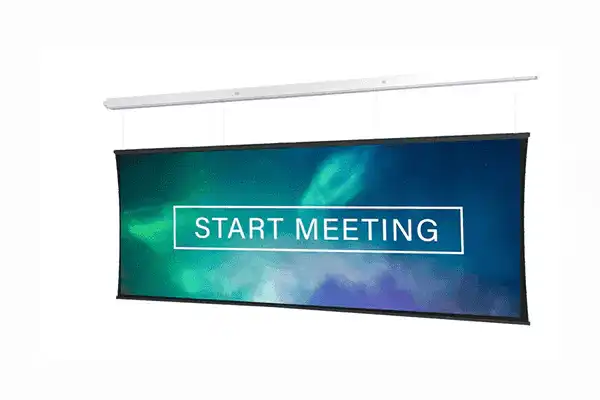

The Da-Lite Tensioned Advantage with SightLine 130" 21:9 Ultra-Wide Projection Screen (DL15679L) with HD Progressive 1.1 Perf surface is a ceiling recessed 21:9 ultra-wide projection screen with an acoustically transparent micro-perforated surface for installations requiring on-axis audio from speakers placed directly behind the viewing area. This Da-Lite SightLine floating screen commercial AV product delivers 1.1 gain across a 59" H x 111" W surface while allowing LCR and center-channel speaker systems to be mounted behind the screen without visible speaker openings or off-screen audio delays. Specify this UL Plenum rated ultra-wide projection screen for 130" hybrid conferencing installations integrating front-channel audio with ceiling-recessed projection.
Product Description
The Da-Lite Tensioned Advantage with SightLine is a ceiling-recessed electric projection screen engineered for commercial AV installations. At 130" diagonal in 21:9 ultra-wide format (approximately 59" H x 111" W viewing surface), this screen addresses medium-to-large boardrooms and conference spaces requiring integrated audio. The SightLine cable-drop system creates a floating screen appearance with 70"/180cm variable positioning—providing open space above the screen for speaker placement. The two-stage installation installs the case during rough-in and the surface assembly during finishing. The HD Progressive 1.1 Perf micro-perforated surface allows LCR and center-channel speakers directly behind the screen for on-axis audio. TruGuide electric tensioning, Smooth Roll Technology, LVC, and UL 2043 Plenum Rated case are standard. This Da-Lite commercial projection screen installation is backed by a 5-year limited warranty.
Key Features
- SightLine Cable-Drop System — Replaces black drop fabric with 3–4 thin cables, creating a floating screen appearance and allowing variable vertical positioning up to 70" from ceiling to screen top edge.
- 21:9 Ultra-Wide Format — Designed for hybrid video conferencing solutions displaying in-room and remote participants simultaneously on a single surface.
- Two-Stage Installation — Case installs during rough-in construction; surface assembly during finishing stage, reducing coordination requirements between trades.
- TruGuide Electric Tensioning System — Maintains uniform surface tension across the full viewing area to eliminate wrinkles and surface distortion.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles, maintaining flat viewing surface over the product’s service life.
- Standard Low Voltage Control (LVC) — Integrates with third-party AV control systems via dry contact relay without requiring high-voltage switching at the control point.
- UL Plenum Rated Case — Approved for installation in plenum air spaces per UL 2043, meeting commercial building code requirements in most jurisdictions.

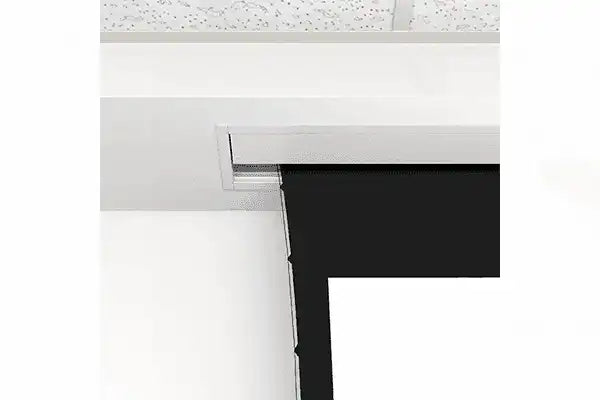

- Ceiling Trim-in-Place Design — White powder-coated aluminum case with closure door conceals the ceiling opening; no additional trim work required after screen installation.
- HD Progressive 1.1 Perf Acoustically Transparent Surface — Micro-perforated 1.1 gain surface enables LCR and center-channel speaker placement directly behind the 130" viewing area for on-axis audio delivery.
- Seamless Viewing Surface — No center seam; maintains visual continuity across the full 130" ultra-wide viewing area.
Typical Applications
- Boardrooms requiring ceiling-recessed projection with on-axis speaker systems
- Conference facilities deploying hybrid video conferencing with integrated LCR audio
- Auditorium-style rooms with behind-screen audio requirements
- Corporate training rooms with ceiling-recessed AV and integrated audio
- Government conference spaces with acoustic and architectural ceiling requirements
Technical Specifications
| Specification | Value |
|---|---|
| Model | DL15679L |
| Screen Type | Electric / Motorized (Ceiling Recessed) |
| Format | 21:9 Ultra-Wide |
| Diagonal Size | 130" |
| Screen Surface | HD Progressive 1.1 Perf (Acoustically Transparent) |
| Gain | 1.1 |
| Drop System | SightLine Cable-Drop (variable 0–70" / 0–180cm) |
| Motor | Standard 120V |
| Control | Low Voltage Control (LVC), 3-button Decora wall switch included |
| Case Material | White powder-coated aluminum |
| UL Plenum Rating | UL 2043 Plenum Rated |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: What is the SightLine feature and how does it differ from standard black drop?
A: SightLine replaces the traditional black fabric drop with 3–4 thin cables, creating a floating screen appearance, 70" variable positioning, and open space for cameras or speakers.
Q: Is this screen compatible with standard AV control systems?
A: Yes. LVC integrates with Crestron, AMX, Extron, QSC via dry contact relay. Contact creationnetworks.net for integration assistance.
Q: What projectors are compatible with the HD Progressive 1.1 Perf surface?
A: Compatible with most commercial DLP, LCD, and laser projectors. The micro-perforation pattern allows center-channel and LCR speakers directly behind the screen with minimal visible impact on the projected image.
Q: Can this screen be installed in a plenum air handling space?
A: Yes. UL 2043 Plenum rated per IBC and NFPA 90A requirements.
Q: What is the two-stage installation process?
A: Case installs during rough-in; surface assembly installs during finish phase after painting and ceiling tile work.
Q: What warranty does Da-Lite provide on this product?
A: 5-year limited warranty. Contact Creation Networks at creationnetworks.net.
