Da-Lite DL15678L 130" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 01.1)
Da-Lite DL15678L 130" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 01.1) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15678L 130" Tensioned Advantage with SightLine Ultra...
Product Overview
The Da-Lite Tensioned Advantage with SightLine 130" 21:9 Ultra-Wide Projection Screen (DL15678L) with HD Progressive 1.1 surface delivers a ceiling recessed 21:9 ultra-wide projection screen with a standard-gain matte white surface for broad compatibility with commercial projector types. This Da-Lite SightLine floating screen commercial AV product offers a 1.1 gain surface with a wide viewing angle, making it a versatile specification for corporate boardrooms, conference rooms, and training facilities deploying hybrid video conferencing. The 21:9 ultra-wide format at 130" diagonal (approximately 59" H x 111" W) is compatible with virtually all commercial projectors and provides wide angular distribution for diverse seating configurations. This Da-Lite commercial projection screen installation is the general-purpose surface choice in the 130" Tensioned Advantage SightLine lineup.
Product Description
The Da-Lite Tensioned Advantage with SightLine is a ceiling-recessed electric projection screen engineered for commercial AV installations. At 130" diagonal in 21:9 ultra-wide format (approximately 59" H x 111" W viewing surface), this model suits medium-to-large boardrooms and conference centers. The SightLine cable-drop system creates a floating screen appearance with 70"/180cm variable positioning. The two-stage installation installs the case during rough-in and the surface assembly during finishing. The HD Progressive 1.1 standard matte white surface with 1.1 gain offers wide viewing angle compatibility with virtually all DLP, LCD, and laser projector types. TruGuide electric tensioning, Smooth Roll Technology, LVC, and UL 2043 Plenum Rated case are standard. This ceiling recessed electric screen with variable drop height is backed by a 5-year limited warranty.
Key Features

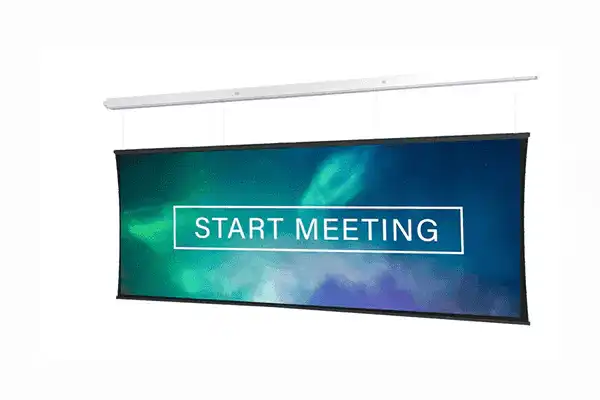

- SightLine Cable-Drop System — Replaces black drop fabric with 3–4 thin cables, creating a floating screen appearance and allowing variable vertical positioning up to 70" from ceiling to screen top edge.
- 21:9 Ultra-Wide Format — Designed for hybrid video conferencing solutions displaying in-room and remote participants simultaneously on a single surface.
- Two-Stage Installation — Case installs during rough-in construction; surface assembly during finishing stage, reducing coordination requirements between trades.
- TruGuide Electric Tensioning System — Maintains uniform surface tension across the full viewing area to eliminate wrinkles and surface distortion.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles, maintaining flat viewing surface over the product’s service life.
- Standard Low Voltage Control (LVC) — Integrates with third-party AV control systems via dry contact relay without requiring high-voltage switching at the control point.
- UL Plenum Rated Case — Approved for installation in plenum air spaces per UL 2043, meeting commercial building code requirements in most jurisdictions.

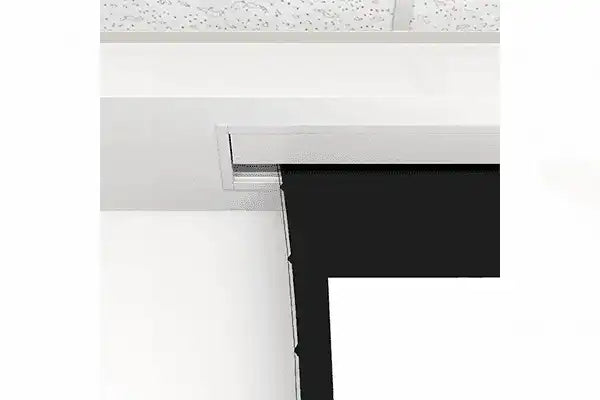

- Ceiling Trim-in-Place Design — White powder-coated aluminum case with closure door conceals the ceiling opening; no additional trim work required after screen installation.
- HD Progressive 1.1 Standard-Gain Surface — Matte white 1.1 gain with wide viewing angle; compatible with virtually all commercial DLP, LCD, and laser projector types.
- Seamless Viewing Surface — No center seam; maintains visual continuity across the full 130" ultra-wide viewing area.
Typical Applications
- Medium-to-large boardrooms and conference facilities deploying hybrid video conferencing
- Corporate spaces requiring premium ceiling-recessed projection with general projector compatibility
- Multi-purpose rooms with variable seating and general-purpose projection
- Corporate training rooms with ceiling-recessed AV infrastructure
- Government conference spaces with architectural ceiling requirements
Technical Specifications
| Specification | Value |
|---|---|
| Model | DL15678L |
| Screen Type | Electric / Motorized (Ceiling Recessed) |
| Format | 21:9 Ultra-Wide |
| Diagonal Size | 130" |
| Screen Surface | HD Progressive 1.1 |
| Gain | 1.1 |
| Drop System | SightLine Cable-Drop (variable 0–70" / 0–180cm) |
| Motor | Standard 120V |
| Control | Low Voltage Control (LVC), 3-button Decora wall switch included |
| Case Material | White powder-coated aluminum |
| UL Plenum Rating | UL 2043 Plenum Rated |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: What is the SightLine feature and how does it differ from standard black drop?
A: SightLine replaces the traditional black fabric drop with 3–4 thin cables, creating a floating screen appearance, 70" variable positioning, and open space for cameras or speakers.
Q: Is this screen compatible with standard AV control systems?
A: Yes. LVC integrates with Crestron, AMX, Extron, QSC via dry contact relay. Contact creationnetworks.net for integration assistance.
Q: What projectors are compatible with the HD Progressive 1.1 surface?
A: Compatible with virtually all commercial DLP, LCD, and laser projector types. Wide viewing angle makes it suitable for rooms with varied seating geometry.
Q: Can this screen be installed in a plenum air handling space?
A: Yes. UL 2043 Plenum rated per IBC and NFPA 90A requirements.
Q: What is the two-stage installation process?
A: Case installs during rough-in; surface assembly installs during finish phase after painting and ceiling tile work.
Q: What warranty does Da-Lite provide on this product?
A: 5-year limited warranty. Contact Creation Networks at creationnetworks.net.
