Da-Lite DL15676L 130" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 0.6)
Da-Lite DL15676L 130" Tensioned Advantage with SightLine Ultra-Wide Projection Screen (HD Progressive 0.6) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite DL15676L 130" Tensioned Advantage with SightLine Ultra...
Product Overview
The Da-Lite Tensioned Advantage with SightLine 130" 21:9 Ultra-Wide Projection Screen (DL15676L) with HD Progressive 0.6 surface is a ceiling recessed 21:9 ultra-wide projection screen optimized for high-lumen 4K and UHD laser projectors in commercial boardrooms and conference facilities. This Da-Lite SightLine floating screen commercial AV product features a 0.6 gain high-contrast surface that delivers superior image quality in ambient light conditions and reduces hot-spotting on the 130" diagonal format. The 21:9 ultra-wide format supports video conferencing projection screen applications at approximately 59" H x 111" W. Specify this Da-Lite Tensioned Advantage electric screen boardroom model for facilities pairing high-brightness laser projectors with ceiling-recessed installation requirements.
Product Description
The Da-Lite Tensioned Advantage with SightLine is a ceiling-recessed electric projection screen engineered for commercial AV installations. At 130" diagonal in 21:9 ultra-wide format (approximately 59" H x 111" W viewing surface), this screen addresses medium-to-large boardrooms with high-lumen projector infrastructure. The SightLine cable-drop system creates a floating screen appearance with 70"/180cm variable positioning. The two-stage installation installs the case during rough-in and the surface assembly during finishing. The HD Progressive 0.6 surface with 0.6 gain is engineered for high-lumen projectors, reducing hot-spotting and delivering superior contrast. TruGuide electric tensioning, Smooth Roll Technology, LVC, and UL 2043 Plenum Rated case are standard. This Da-Lite commercial projection screen installation carries a 5-year limited warranty.
Key Features

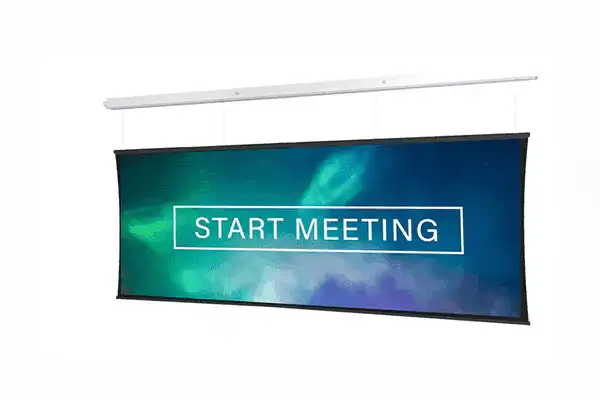

- SightLine Cable-Drop System — Replaces black drop fabric with 3–4 thin cables, creating a floating screen appearance and allowing variable vertical positioning up to 70" from ceiling to screen top edge.
- 21:9 Ultra-Wide Format — Designed for hybrid video conferencing solutions displaying in-room and remote participants simultaneously on a single surface.
- Two-Stage Installation — Case installs during rough-in construction; surface assembly during finishing stage, reducing coordination requirements between trades.
- TruGuide Electric Tensioning System — Maintains uniform surface tension across the full viewing area to eliminate wrinkles and surface distortion.
- Smooth Roll Technology — Prevents surface deformation during retraction cycles, maintaining flat viewing surface over the product’s service life.
- Standard Low Voltage Control (LVC) — Integrates with third-party AV control systems via dry contact relay without requiring high-voltage switching at the control point.
- UL Plenum Rated Case — Approved for installation in plenum air spaces per UL 2043, meeting commercial building code requirements in most jurisdictions.

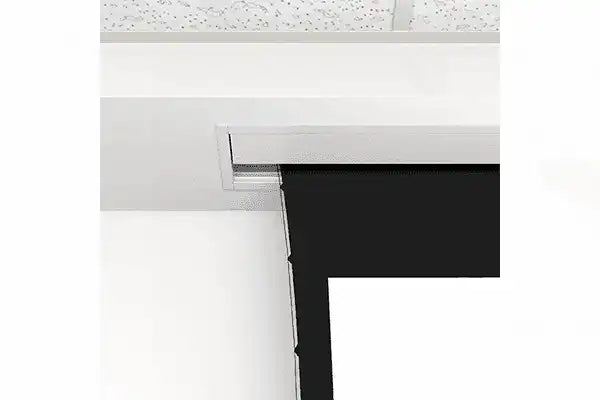

- Ceiling Trim-in-Place Design — White powder-coated aluminum case with closure door conceals the ceiling opening; no additional trim work required after screen installation.
- HD Progressive 0.6 High-Contrast Surface — 0.6 gain surface for high-lumen 4K/UHD laser projectors; delivers superior ambient-light image quality and eliminates hot-spotting on 130" displays.
- Seamless Viewing Surface — No center seam; maintains visual continuity across the full 130" ultra-wide viewing area.
Typical Applications
- Medium-to-large boardrooms deploying high-lumen hybrid video conferencing solutions
- Corporate spaces requiring premium ceiling-recessed projection with high-brightness projectors
- Conference rooms with high-lumen laser projectors and ambient light challenges
- Corporate training rooms with ceiling-recessed AV infrastructure
- Government conference spaces with architectural ceiling requirements
Technical Specifications
| Specification | Value |
|---|---|
| Model | DL15676L |
| Screen Type | Electric / Motorized (Ceiling Recessed) |
| Format | 21:9 Ultra-Wide |
| Diagonal Size | 130" |
| Screen Surface | HD Progressive 0.6 |
| Gain | 0.6 |
| Drop System | SightLine Cable-Drop (variable 0–70" / 0–180cm) |
| Motor | Standard 120V |
| Control | Low Voltage Control (LVC), 3-button Decora wall switch included |
| Case Material | White powder-coated aluminum |
| UL Plenum Rating | UL 2043 Plenum Rated |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: What is the SightLine feature and how does it differ from standard black drop?
A: SightLine replaces the traditional black fabric drop with 3–4 thin cables, creating a floating screen appearance, 70" variable positioning, and open space for cameras or speakers.
Q: Is this screen compatible with standard AV control systems?
A: Yes. LVC integrates with Crestron, AMX, Extron, QSC via dry contact relay. Contact creationnetworks.net for integration assistance.
Q: What projectors are compatible with the HD Progressive 0.6 surface?
A: Optimized for high-lumen laser projectors. The 0.6 gain reduces hot-spotting and increases perceived contrast. Not recommended for low-lumen projectors below approximately 5,000 lumens at 130" diagonal.
Q: Can this screen be installed in a plenum air handling space?
A: Yes. UL 2043 Plenum rated per IBC and NFPA 90A requirements.
Q: What is the two-stage installation process?
A: Case installs during rough-in; surface assembly installs during finish phase after painting and ceiling tile work.
Q: What warranty does Da-Lite provide on this product?
A: 5-year limited warranty. Contact Creation Networks at creationnetworks.net.
