Da-Lite 93987V Da-Snap 193" 16:9 Fixed Frame Screen with Pro Trim (Da-Mat)
Da-Lite 93987V Da-Snap 193" 16:9 Fixed Frame Screen with Pro Trim (Da-Mat) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Da-Lite 93987V Da-Snap 193" 16:9 Fixed Frame Screen with Pro T...
Product Overview

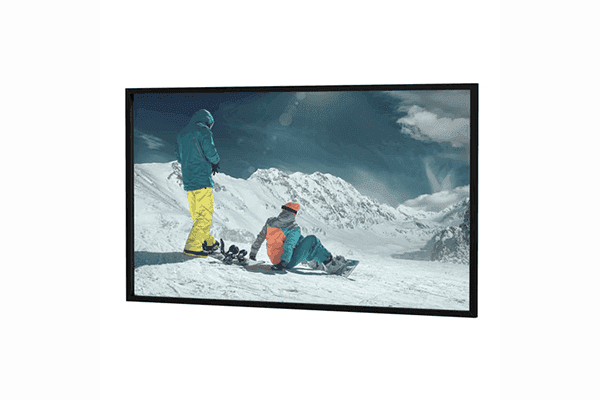

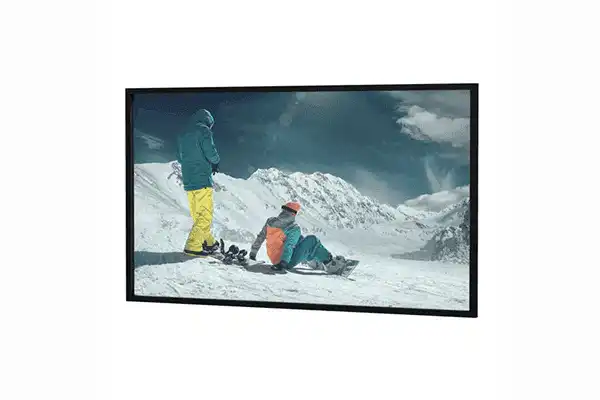

The Da-Lite Da-Snap is a fixed frame projection screen with Pro-Trim finish for permanent commercial AV installations. The Da-Snap 93987V provides a 193" diagonal HDTV 16:9 viewing area with the Da-Mat surface — an ultra-matte, 180-degree viewing angle surface providing the widest angular distribution in the Da-Snap series. The Pro-Trim light-absorbing black frame finish reduces edge halation, and the square aluminum tubing frame supports wall-surface and wall-opening (recessed) installation.
Product Description
The Da-Lite Da-Snap 93987V with Da-Mat surface provides a 193" diagonal HDTV 16:9 large-format fixed frame projection screen with the ultra-matte, widest-angle surface in the Da-Snap family. The Da-Mat surface (gain 1.0) delivers a 180-degree viewing angle — the widest angular distribution available — making it optimal for large rooms with extreme off-axis seating positions, simulation environments, or any installation where viewers may be positioned at wide angles to the screen. Its unity gain (1.0) provides neutral brightness response at all viewing angles with no on-axis hot spot. The Pro-Trim frame finish absorbs ambient light at the frame border. The screen surface attaches via snaps or optional Velcro for field replacement without removing the frame. Standard black backing maintains front-projection image brightness. The seamless surface spans the full 193" diagonal. The Da-Snap supports wall-surface and wall-opening (recessed) installation. For borderless fixed frame screens see the Da-Lite FullVision series. For screens with an ultra-thin bezel, see the UTB Contour series at creationnetworks.net.
Key Features

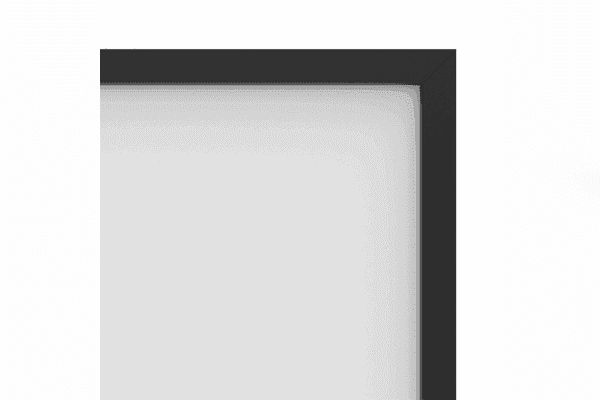

- Pro-Trim Frame Finish — Light-absorbing black material reduces halation and improves perceived contrast at the screen border.
- Snap or Velcro Surface Attachment — Field surface replacement without removing the frame.
- Front or Rear Projection — Supports both front and rear projection screen surfaces.
- Square Aluminum Tubing Frame — Rigid construction prevents frame flex on larger diagonal sizes.
- Curved Frame Option — Available for immersive display applications.
- Wall or Wall-Opening Installation — Mounts on wall surface or set into wall opening for recessed installation.
- Standard Black Backing — Maintains image brightness on front projection surfaces.
- Seamless Viewing Surface — No center seam on any model.
- Da-Mat Surface (Gain 1.0) — Ultra-matte 180-degree viewing angle surface; widest angular distribution in the Da-Snap series; optimal for rooms with extreme off-axis seating or multi-direction viewing requirements.
Typical Applications
- Simulation environments requiring a 180-degree viewing angle surface
- Large auditoriums with extreme off-axis seating positions
- Multi-direction viewing rooms and command centers with wide-field projection
- Installations where neutral brightness at all angles is a design requirement
Technical Specifications
| Specification | Value |
|---|---|
| Model | 93987V |
| Series | Da-Snap |
| Screen Type | Fixed Frame with Pro-Trim |
| Format | 16:9 HDTV |
| Diagonal Size | 193" |
| Screen Surface | Da-Mat |
| Gain | 1.0 |
| Frame Material | Square aluminum tubing |
| Frame Finish | Pro-Trim (light-absorbing black) |
| Surface Attachment | Snaps or optional Velcro |
| Black Backing | Standard |
| Warranty | 5-Year Limited |
Frequently Asked Questions
Q: Can the Da-Snap screen surface be field-replaced?
A: Yes. The screen surface attaches to the frame via snaps or optional Velcro.
Q: Is rear projection supported?
A: Yes. The Da-Snap supports both front and rear projection screen surfaces. Da-Tex rear projection material is available in this series.
Q: What is the Pro-Trim frame finish?
A: Pro-Trim is a light-absorbing black material that reduces reflected ambient light at the screen border and improves perceived edge contrast.
Q: Does the frame support a curved profile?
A: Yes. A curved frame option is available for Da-Snap. Contact Creation Networks at creationnetworks.net for curved frame configurations.
