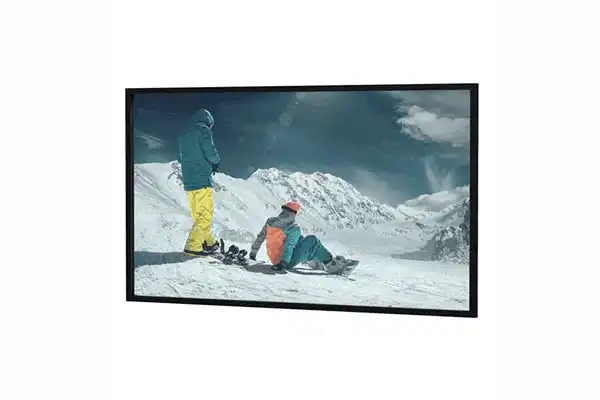

Da-Lite 78694V Da-Snap 133" 16:9 Fixed Frame Screen with Pro Trim (Da-Mat)

Product Overview

The Da-Lite Da-Snap is a fixed frame projection screen with Pro-Trim finish for permanent commercial AV installations. The Da-Snap 78694V provides a 133" diagonal HDTV 16:9 viewing area with the Da-Mat surface — an ultra-matte screen with a 180-degree viewing angle for the widest possible audience spread. The Pro-Trim light-absorbing black frame finish reduces edge halation, and the square aluminum tubing frame supports wall-surface and wall-opening (recessed) installation.

Product Description

The Da-Lite Da-Snap 78694V with Da-Mat surface provides a 133" diagonal HDTV 16:9 fixed frame projection screen for applications where viewing angle uniformity is more important than image brightness. The Da-Mat surface (gain 1.0) diffuses reflected light across a full 180-degree arc, delivering consistent image brightness from extreme off-axis seating positions that no higher-gain screen can match. At 133" diagonal this is a common boardroom and large conference room size, and the Da-Mat is frequently specified in fan-shaped or theater-in-the-round seating configurations where viewers may be seated far to the side of the screen. The Pro-Trim frame finish absorbs ambient light at the frame border. The screen surface attaches via snaps or optional Velcro for field replacement. Standard black backing maintains front-projection image brightness. The seamless surface spans the full 133" diagonal. The Da-Snap supports wall-surface and wall-opening (recessed) installation. For borderless fixed frame screens see the Da-Lite FullVision series. For screens with an ultra-thin bezel, see the UTB Contour series at creationnetworks.net.

Key Features

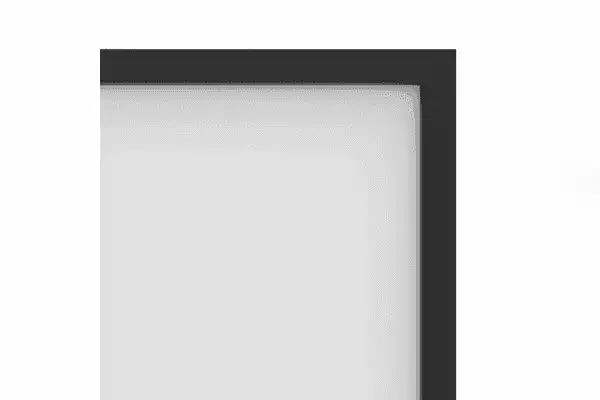

• Pro-Trim Frame Finish — Light-absorbing black material reduces halation and improves perceived contrast at the screen border.
• Snap or Velcro Surface Attachment — Field surface replacement without removing the frame.
• Front or Rear Projection — Supports both front and rear projection screen surfaces.
• Square Aluminum Tubing Frame — Rigid construction prevents frame flex.
• Curved Frame Option — Available for immersive display applications.
• Wall or Wall-Opening Installation — Mounts on wall surface or set into wall opening for recessed installation.
• Standard Black Backing — Maintains image brightness on front projection surfaces.
• Seamless Viewing Surface — No center seam on any model.
• Da-Mat Surface (Gain 1.0) — Ultra-matte 180-degree viewing angle; widest angular distribution of any Da-Snap surface; ideal for fan-shaped or theater-in-the-round seating.

Typical Applications

• Fan-shaped or theater-in-the-round seating where extreme off-axis viewing angles are required
• Large conference rooms and boardrooms specifying uniform image brightness for all seat positions
• Training facilities and classrooms with wide seating spread
• Commercial installations where widest possible viewing angle is the primary screen selection criterion

Technical Specifications

Frequently Asked Questions

Q: Can the Da-Snap screen surface be field-replaced?

A: Yes. The screen surface attaches to the frame via snaps or optional Velcro, allowing the surface to be replaced in the field without removing the frame from the wall.

Q: Is rear projection supported?

A: Yes. The Da-Snap supports both front and rear projection screen surfaces. Da-Tex rear projection material is available in this series.

Q: What is the Pro-Trim frame finish?

A: Pro-Trim is a light-absorbing black material that reduces reflected ambient light at the screen border and improves perceived edge contrast.

Q: Does the frame support a curved profile?

A: Yes. A curved frame option is available for Da-Snap. Contact Creation Networks at creationnetworks.net for curved frame configurations.
