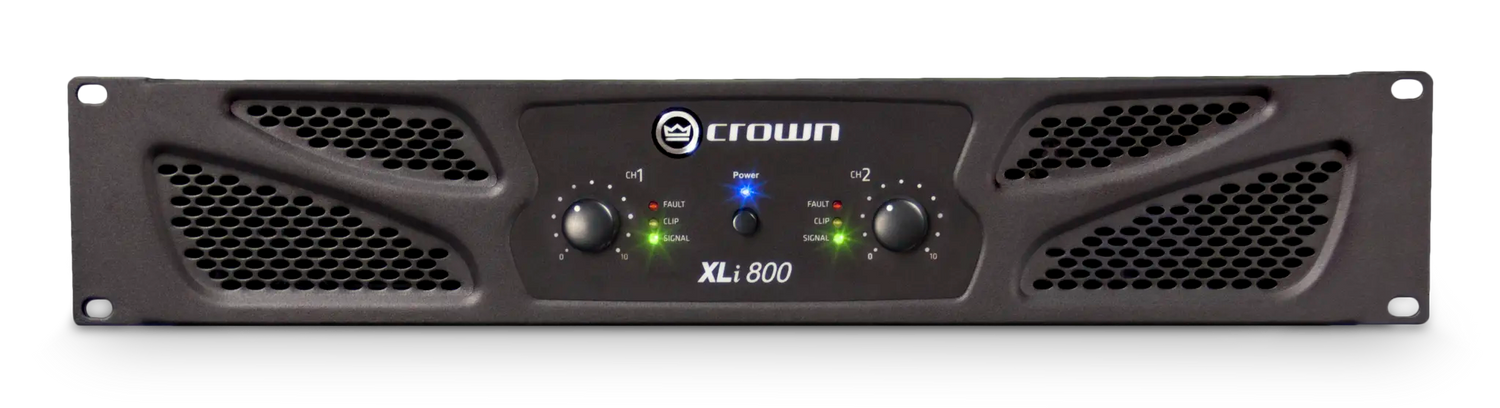

Crown XLi 800 – 2-Channel 300W Power Amplifier
Product Overview
The Crown XLi 800 is a reliable, affordable 2-channel power amplifier delivering 300 watts per channel, designed for small-to-medium applications including live sound reinforcement, installed audio, and DJ/entertainment use. The XLi 800 provides Crown's legendary build quality and signal integrity at an accessible price point.
Product Description
The Crown XLi 800 is the entry point into Crown's professional amplifier lineup, offering dependable performance for portable PA systems, small venue installed sound, and multi-purpose audio applications. Its dual-channel design provides flexibility for stereo operation, bi-amplification, or bridged mono for higher single-channel output. The XLi 800's simple, straightforward controls make it accessible to a wide range of users from working musicians to AV integrators, while Crown's engineering pedigree ensures the clean, reliable audio reproduction that professionals expect.
Key Features
- 300W Per Channel @ 4Ω: Ample power for small-to-medium PA systems, installed sound, and portable applications.
- 2-Channel Design: Stereo, dual-mono, or bridged mono operation for maximum versatility.
- Clip Limiting: Protects connected loudspeakers from distortion damage during high-level transients.
- Variable Input Sensitivity: Adjustable input sensitivity accommodates a wide range of source signal levels.
- Cooling Fan: Temperature-controlled fan cooling for reliable long-term operation in rack environments.
- Balanced XLR & 1/4" TRS Inputs: Accepts both balanced and unbalanced sources for maximum compatibility.

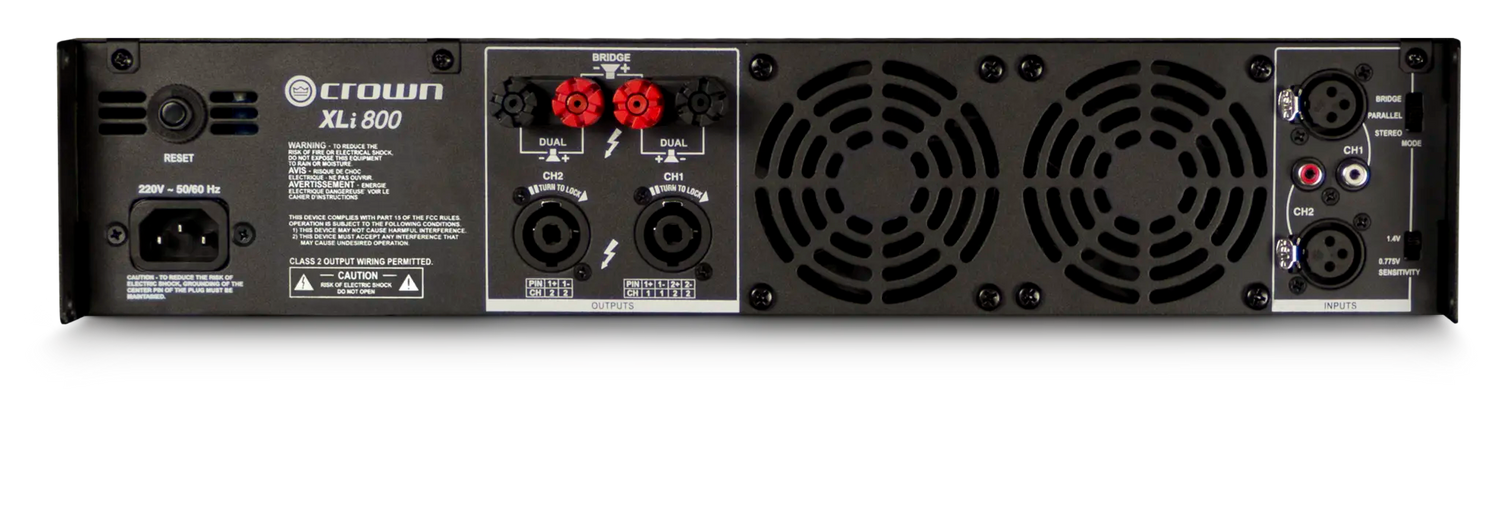

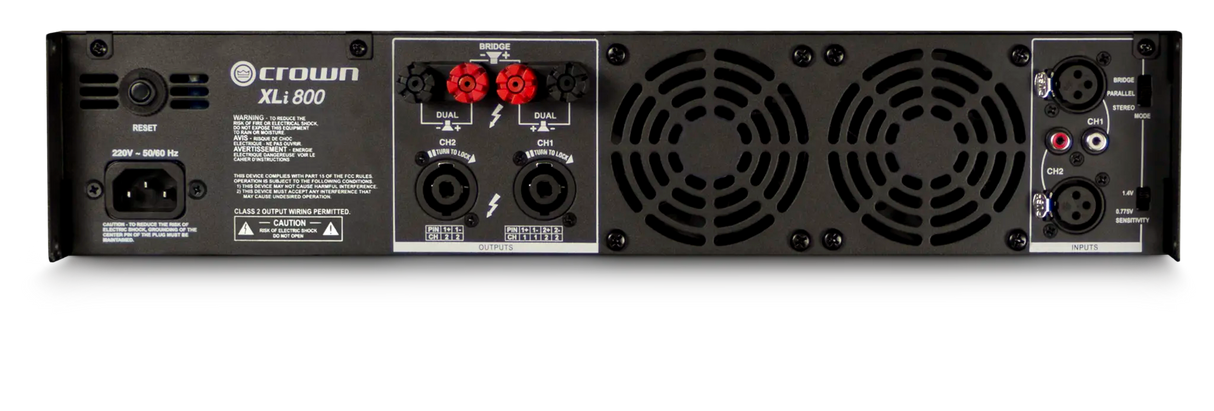

- Speakon & Binding Post Outputs: Dual output connection types for flexible speaker cabling options.
- Rack Mountable: Standard 2U rack mount design for permanent installation.
Typical Applications
- Small Venues: Bars, restaurants, and small performance spaces requiring reliable, clean amplification for background music or live sound.
- Houses of Worship: Small church and chapel PA systems where budget-friendly, dependable amplification is essential.
- DJ & Entertainment: Mobile DJ and entertainment systems requiring a compact, affordable amplifier for portable speaker systems.
- Installed Sound: Background music, paging, and low-power installed sound applications in commercial spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Power Output (per channel @ 4Ω) | 300W |
| Power Output (per channel @ 8Ω) | 200W |
| Bridged Mono Output @ 8Ω | 600W |
| Input Connectors | XLR, 1/4" TRS |
| Output Connectors | Speakon, Binding Post |
| Frequency Response | 20Hz – 20kHz (±1dB) |
| THD+N | <0.5% |
| Signal-to-Noise Ratio | >100dB |
| Form Factor | 2U Rack Mount |
| Weight | 28 lbs |
| SKU | NXLI800-0-US |
| UPC | 871015006895 |
Frequently Asked Questions
- Can the XLi 800 be used in bridged mono mode?
- Yes. The XLi 800 supports bridged mono operation, combining both channels for a single higher-power output. In bridged mono mode, the amplifier delivers approximately 600W into 8Ω — ideal for driving a single subwoofer or full-range cabinet requiring more power.
- What types of speakers can the XLi 800 drive?
- The XLi 800 is suitable for most passive loudspeakers rated between 4Ω and 16Ω. It can drive satellite speakers, full-range PA cabinets, and subwoofers in smaller system configurations. Always match the speaker's power rating to the amplifier's output to avoid damage.
- Does the XLi 800 include built-in DSP or crossover?
- No. The XLi 800 is a straightforward power amplifier without onboard DSP. For systems requiring active crossover or DSP processing, an external processor such as a Crown DriveRack or similar device should be used upstream of the amplifier.
- What is the difference between the XLi 800 and the XLi 1500?
- The XLi 1500 delivers 450W per channel versus 300W for the XLi 800, making it the better choice for medium-sized systems or applications requiring more headroom. Both share the same input/output connectivity and operating features.
- What warranty does the XLi 800 carry?
- The Crown XLi 800 is covered by Crown's 3-year limited warranty for professional audio products.
