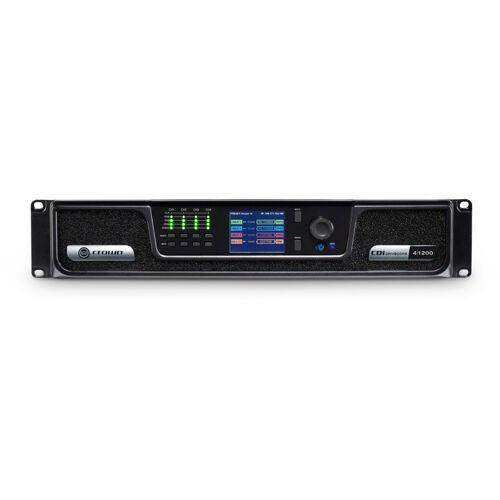

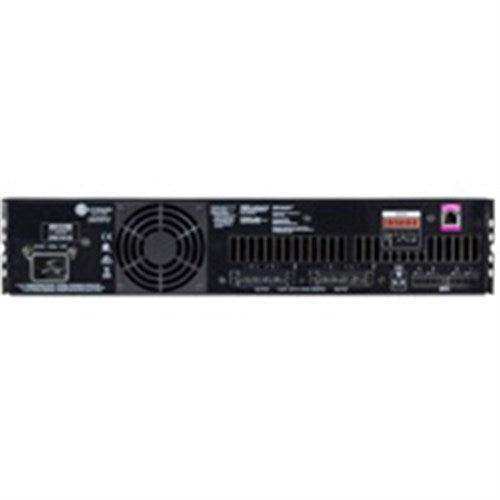

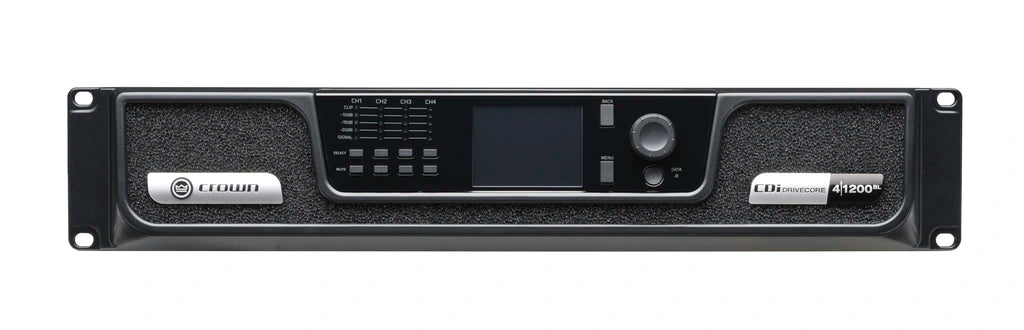

Crown NCDI4X12BL-U-US 4x1200 Power Amplifier with BLU link
Crown CDI4X1200BL – 4-Channel 1200W DriveCore Amplifier with BLU link
Product Overview
The Crown CDI4X1200BL is a four-channel, 1200-watt-per-channel CDi DriveCore Series amplifier with integrated BLU link digital audio networking, combining high-output four-channel amplification with Harman's BLU link infrastructure for large commercial AV installations using BSS Audio signal processing. At 4800 watts total output with BLU link connectivity, the CDI4X1200BL is suited for AV integrators specifying high-output multi-zone amplification within Harman BSS-based system architectures in auditoriums, houses of worship, conference centers, and large commercial facilities.
Product Description
The CDI4X1200BL delivers 1200 watts per channel into 4 ohms across all four channels with 70V and 100V constant-voltage output and BLU link digital audio transport from BSS Audio processors over Cat cable. The integrated BLU link interface provides 256-channel digital audio at up to 96kHz/24-bit resolution, eliminating multi-core analog runs between the BSS signal processor and the amplifier rack. Crown's DriveCore IC manages thermal demands of high-power continuous-duty operation across four channels in enclosed commercial installations. Comprehensive DC, thermal, and short-circuit protection on all channels supports reliable unattended operation.
Key Features
- Integrated BLU link digital networking — 256-channel lossless audio over Cat cable from BSS Audio processors.
- 1200W per channel at 4Ω, four channels — 4800W total for high-output multi-zone commercial audio.
- 70V/100V constant-voltage output — All four channels support distributed speaker systems.
- Crown DriveCore technology — Integrated IC manages thermal demands of high-power multi-channel permanent installation.
- BSS Audio system integration — Purpose-built for Harman BSS BLU link-enabled system architectures.
- Independent channel operation — Four separately driven zones or speaker systems from a single amplifier.
- Comprehensive protection — DC, thermal, and short-circuit protection on all four channels.
- Rack-mount chassis — Standard commercial AV rack-mount form factor.
Typical Applications
- Auditorium and performing arts center multi-zone systems on BSS BLU link networks
- House of worship high-output multi-zone speaker systems with BLU link
- Large conference center multi-zone audio in Harman BSS environments
- Government and municipal large-venue audio on BLU link infrastructure
- Multi-purpose room high-output audio in Harman AV ecosystems
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 4 |
| Power Output (4Ω) | 1200W per channel |
| Power Output (8Ω) | 600W per channel |
| 70V/100V Support | Yes |
| Digital Network | BLU link (Harman) |
| BLU link Channels | 256 channels, 96kHz/24-bit |
| Protection | DC, thermal, short-circuit |
| SKU | NCDI4X12BL-U-US |
| Full specs | See vendor datasheet |
Frequently Asked Questions
- What is the difference between the CDI4X1200 and CDI4X1200BL?
- The CDI4X1200BL adds BLU link digital audio networking for lossless audio transport from BSS Audio processors. The CDI4X1200 uses analog XLR inputs only.
- Is BLU link compatible with all BSS Audio processors?
- BLU link is compatible with BSS Soundweb London BLU link-enabled processors. Consult Harman/BSS Audio for current device compatibility.
- What is the warranty?
- Crown CDi DriveCore amplifiers carry a 3-year limited warranty. Contact Creation Networks for service information.
