Crown DCI4X600 DriveCore Install Series - Analog

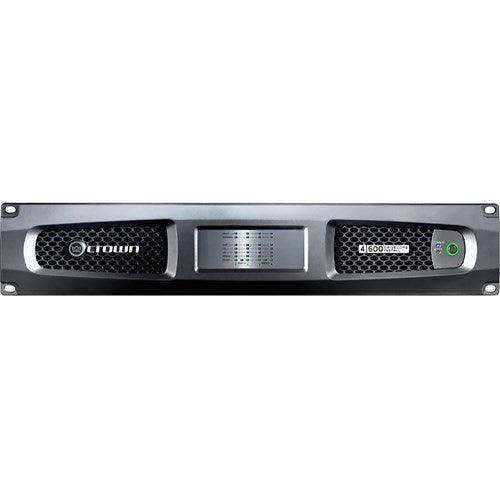

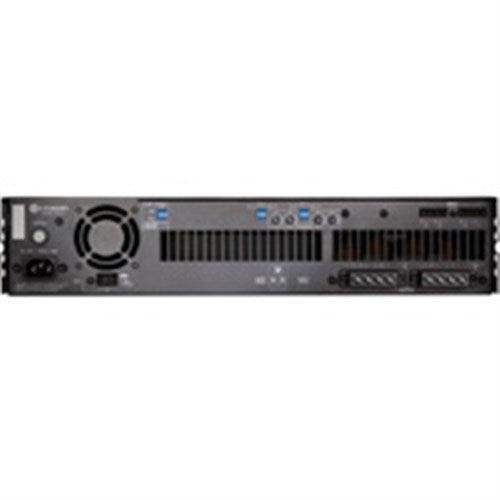

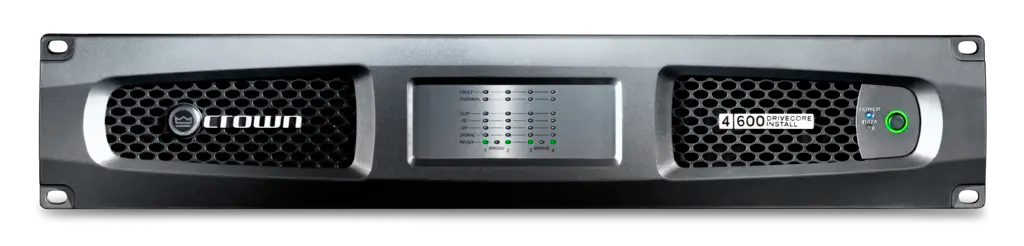

Crown DCI4X600 – 4-Channel 600W DriveCore Install Analog Amplifier
Product Overview
The Crown DCI4X600 is a four-channel, 600-watt-per-channel installation amplifier built for commercial AV systems requiring higher output multi-zone amplification in a compact chassis. Part of Crown's DriveCore Install Analog Series, the DCI4X600 is specified for main speaker systems, multi-zone reinforcement, and distributed audio in conference centers, houses of worship, auditoriums, and large commercial facilities. Four channels at 600 watts each with 70V/100V support provides 2400 watts of total amplification capacity in a 2U rack-mount form factor.
Product Description
The DCI4X600 delivers 600 watts per channel into 4 ohms across all four channels with full 70V and 100V constant-voltage output for distributed speaker systems alongside 4-ohm and 8-ohm low-impedance operation. Crown's DriveCore IC integrates driver and output stages for thermal efficiency and long-term reliability in permanent commercial rack installations. Onboard per-channel DSP handles limiting, parametric EQ, crossover filtering, and alignment delay. HiQnet protocol support enables remote monitoring and control from Harman AV management platforms. Comprehensive protection circuitry covers DC, thermal, and short-circuit conditions on all four channels.
Key Features
- 600W per channel at 4Ω, four channels — 2400W total for high-output multi-zone commercial audio.
- 70V/100V constant-voltage output — All four channels support distributed speaker systems with extended cable runs.
- Crown DriveCore technology — Integrated IC for thermal efficiency in enclosed commercial rack installations.
- Onboard DSP per channel — Limiting, EQ, crossover, and delay without external processing.
- HiQnet network control — Remote monitoring and control via Harman AV platforms.
- 2U rack-mount chassis — Four high-output channels in a standard 2U installation footprint.
- Independent channel configuration — Zone-specific audio settings per channel.
- Bridge mode capability — Channel pairs bridgeable for higher mono output.
- Comprehensive protection — DC, thermal, and short-circuit protection on all channels.
- PureBand Flatness — Consistent frequency response across the full audio bandwidth.
Typical Applications
- Conference room and boardroom main and fill speaker systems
- House of worship main zone amplification
- Auditorium and multi-purpose room speaker systems
- Commercial meeting space foreground audio
- Government and institutional facility public address
- All-hands room and training room audio systems
- Multi-zone distributed audio in commercial facilities
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 4 |
| Power Output (4Ω) | 600W per channel |
| Power Output (8Ω) | 300W per channel |
| 70V/100V Support | Yes |
| DSP | Built-in per channel |
| Network Control | HiQnet |
| THD+N | <0.35% |
| Frequency Response | 20Hz–20kHz ±0.5dB |
| Rack Spaces | 2U |
| SKU | DCI4X600-U-USFX |
Competitor Comparison
| Criteria | Crown DCI4X600 | QSC CX-Q 4K4 | Lab.gruppen C 4000S | Biamp Amp 4250 |
|---|---|---|---|---|
| Channels | 4 | 4 | 4 | 4 |
| Power per ch (4Ω) | 600W | 1000W | 1000W | 250W |
| 70V/100V | Yes | Yes | Yes | Yes |
| Onboard DSP | Full per channel | Via Q-SYS Core | Limited | Biamp native |
| Network Control | HiQnet | Q-SYS | Lake optional | Biamp TesiraFORTÉ |
| Form Factor | 2U | 2U | 2U | 2U |
Frequently Asked Questions
- Can channel pairs be bridged for higher mono output?
- Yes. Adjacent channel pairs can be bridged for increased mono output. Refer to the Crown installation guide for minimum bridged-mode impedance.
- Does the DCI4X600 require an external DSP processor?
- Not for standard installations. Onboard DSP handles per-channel limiting, EQ, crossover, and delay.
- What is the warranty?
- Crown professional installation amplifiers carry a 3-year limited warranty. Contact Creation Networks for service information.
