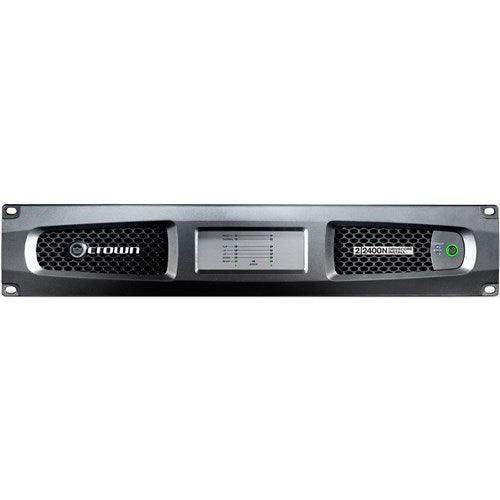

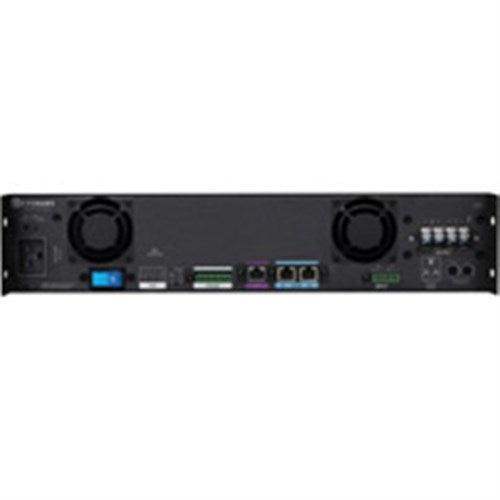

Crown DCI2X2400N DCi 2 2400N 2X2400W Power Amplifier
Crown DCI2X2400N – 2-Channel 2400W Network DriveCore Install Amplifier
Product Overview
The Crown DCI2X2400N is a two-channel, 2400-watt-per-channel installation amplifier with HiQnet network control, representing the highest-output two-channel model in Crown's DriveCore Install N Series. Built for the most demanding commercial AV main speaker applications, the DCI2X2400N is specified for auditorium main arrays, large house of worship systems, performing arts centers, and stadium or arena fill systems where maximum continuous output is required from a 2U rack-mount chassis with remote monitoring capability.
Product Description
The DCI2X2400N delivers 2400 watts per channel into 4 ohms with HiQnet network control for remote monitoring and integration with Harman AV management systems. Both channels support 70V and 100V constant-voltage output alongside 2-ohm, 4-ohm, and 8-ohm low-impedance operation. Crown's DriveCore IC integrates driver and output stages, managing the thermal demands of high-power continuous-duty operation in enclosed rack environments. Onboard DSP provides per-channel limiting, EQ, crossover, and delay. In bridge mode, the two channels combine for a single-channel output significantly exceeding the rated stereo power, suitable for driving high-power subwoofer or main speaker systems.
Key Features
- 2400W per channel at 4Ω — Maximum continuous output for large-venue main speaker and subwoofer applications.
- HiQnet network control — Remote monitoring, fault reporting, and level control via Harman AV platforms.
- 70V/100V constant-voltage output — Both channels support distributed speaker systems.
- Crown DriveCore technology — Integrated IC manages thermal demands of high-power permanent installation.
- Onboard DSP — Per-channel limiting, EQ, crossover, and delay without external processing.
- Bridge mono capability — Channels bridgeable for maximum single-channel output on high-power loads.
- 2U rack-mount chassis — Highest-output 2-channel installation amplifier in a standard 2U form factor.
- 2Ω load capability — Drives demanding low-impedance speaker loads stable at 2 ohms per channel.
- Comprehensive protection — DC, thermal, and short-circuit protection on both channels.
- PureBand Flatness — Consistent frequency response across the full audio bandwidth.
Typical Applications
- Auditorium and performing arts center main speaker arrays
- House of worship large-format main and subwoofer systems
- Stadium and arena fill and delay speaker amplification
- Government facility large-venue public address
- Broadcast studio high-power monitor amplification
- Large multi-purpose venue main audio systems
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Power Output (4Ω) | 2400W per channel |
| Power Output (8Ω) | 1200W per channel |
| Power Output (2Ω) | See vendor datasheet |
| 70V/100V Support | Yes |
| DSP | Built-in per channel |
| Network Control | HiQnet |
| THD+N | <0.35% |
| Frequency Response | 20Hz–20kHz ±0.5dB |
| Rack Spaces | 2U |
| SKU | DCI2X2400N-U-USFX |
Competitor Comparison
| Criteria | Crown DCI2X2400N | QSC CX-Q 2K8 | Lab.gruppen C 5-2X | Powersoft X4 |
|---|---|---|---|---|
| Channels | 2 | 2 | 2 | 4 |
| Power per ch (4Ω) | 2400W | 1000W | 1750W | 1400W |
| 70V/100V | Yes | Yes | Yes | Yes |
| Network Audio | HiQnet control only | Q-LAN / AES67 | Dante optional | Dante built-in |
| Onboard DSP | Full per channel | Via Q-SYS Core | Limited | Full FIRPhase DSP |
| Form Factor | 2U | 2U | 2U | 2U |
Frequently Asked Questions
- What is the bridged mono output of the DCI2X2400N?
- Bridge mono output exceeds the stereo per-channel rating. Refer to the Crown installation guide for the rated bridge mono power at your target impedance.
- Does the DCI2X2400N support 2-ohm loads?
- Yes. The amplifier is rated for 2-ohm loads per channel in stereo mode. Refer to the vendor datasheet for rated power at 2 ohms.
- Can this amplifier be remotely monitored?
- Yes. HiQnet protocol enables remote status monitoring, fault reporting, and level control from Harman AV system management platforms.
- What is the warranty?
- Crown professional installation amplifiers carry a 3-year limited warranty. Contact Creation Networks for service information.
