Overview

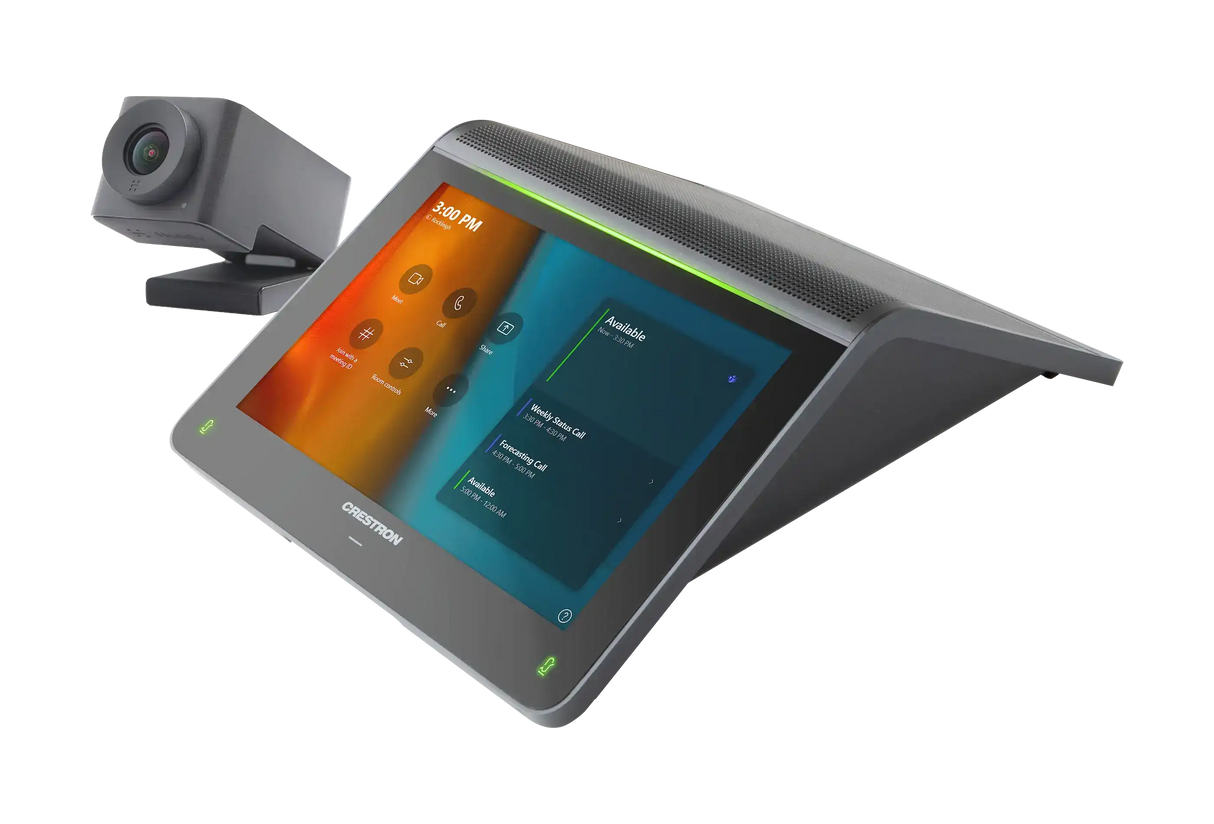

The Crestron Flex tabletop conferencing system, UC-MM30-T, is ideal for small rooms and works with Microsoft Teams® Rooms software. You can choose to use one or two video displays (not included) with this system. It includes a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, PoE Injector, and all necessary cables.
Native Microsoft Teams® Rooms Experience
The UC-MM30-T system brings the full Microsoft Teams Rooms UC experience to any enterprise or SMB facility meeting space.
Intuitive User Interface with Impressive Audio

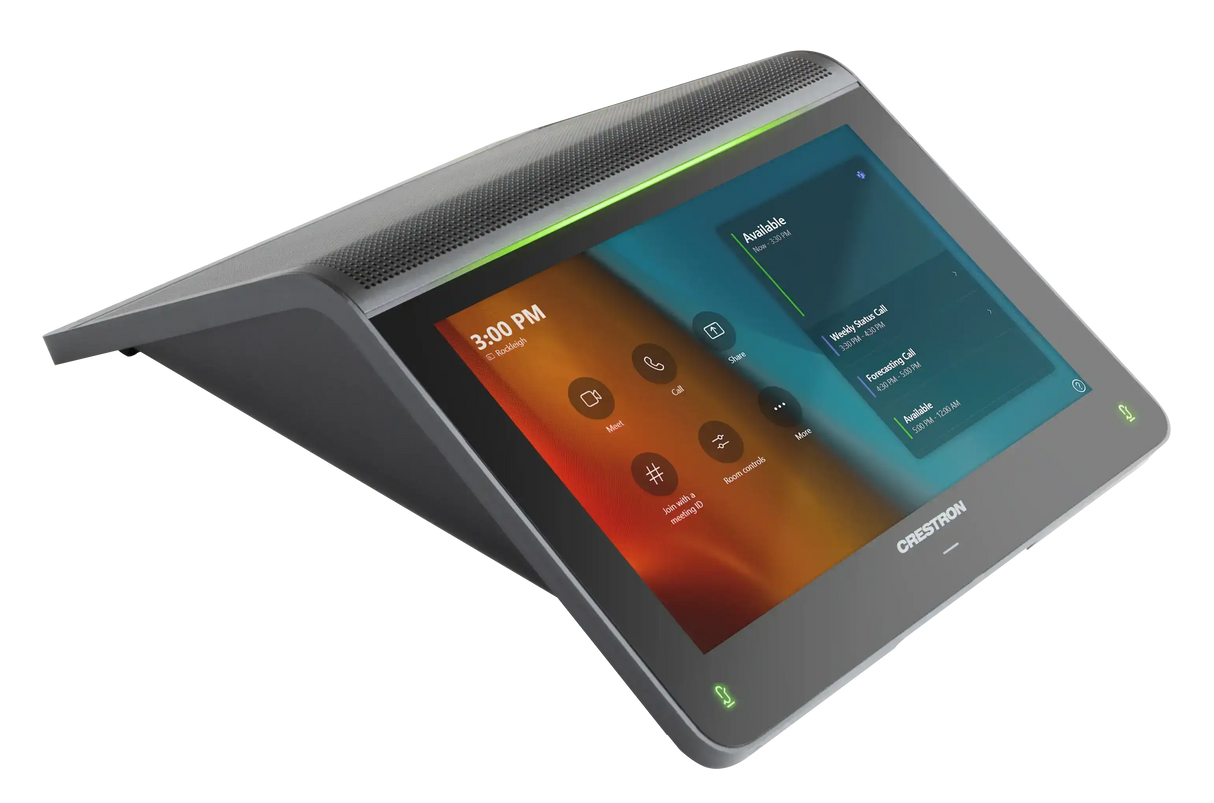

The Crestron Flex Tabletop Conference device (UC-2-T-V) is an excellent option for meeting rooms, huddle spaces, and executive offices. It features a large 7-inch HD color touch screen and an integrated AEC-enabled USB speakerphone that provides full-duplex wideband audio performance. This device offers a superior conferencing and collaboration experience.
Simplified Deployment

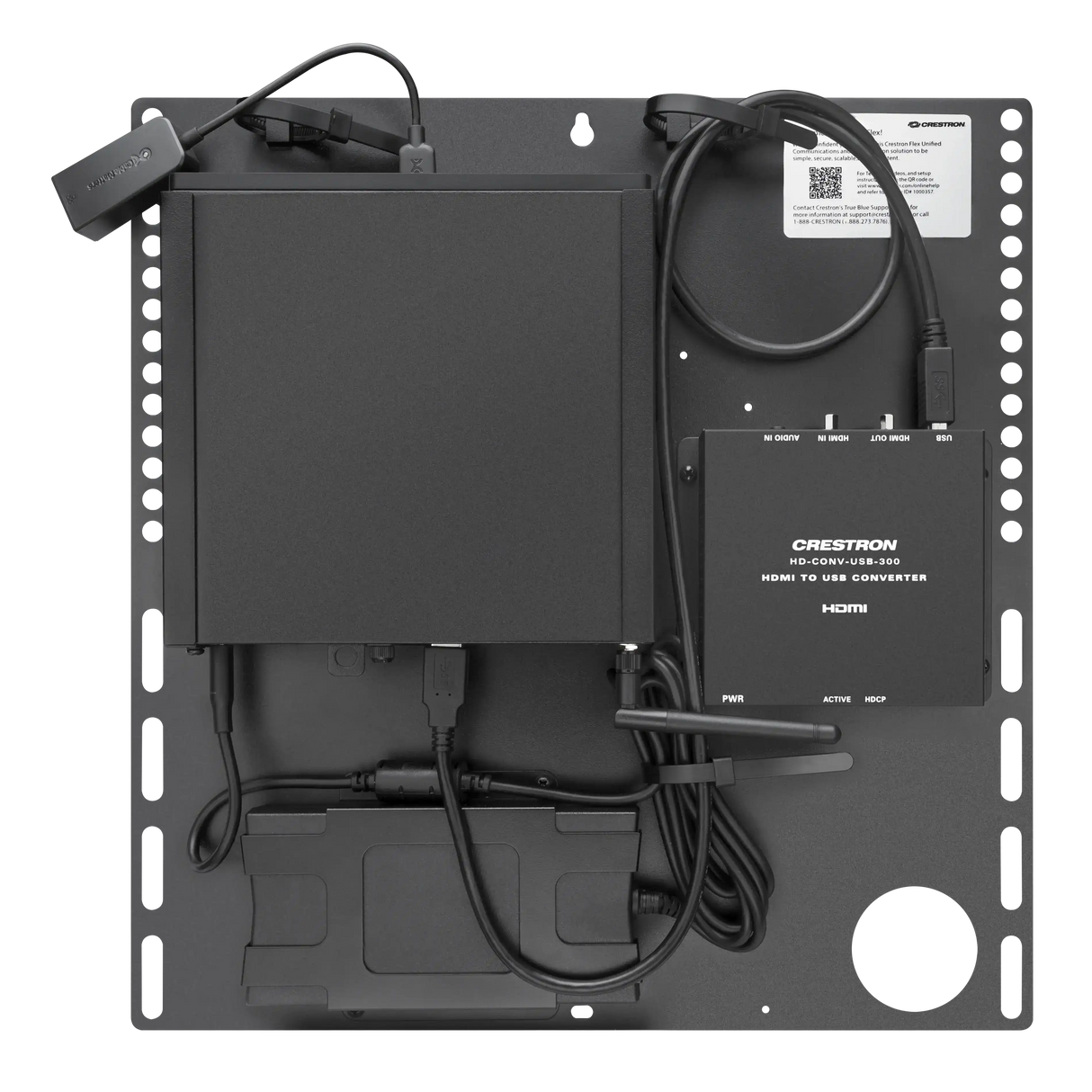

The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the Flex tabletop conference device to the UC Bracket Assembly.2
High‑Definition Video Conferencing

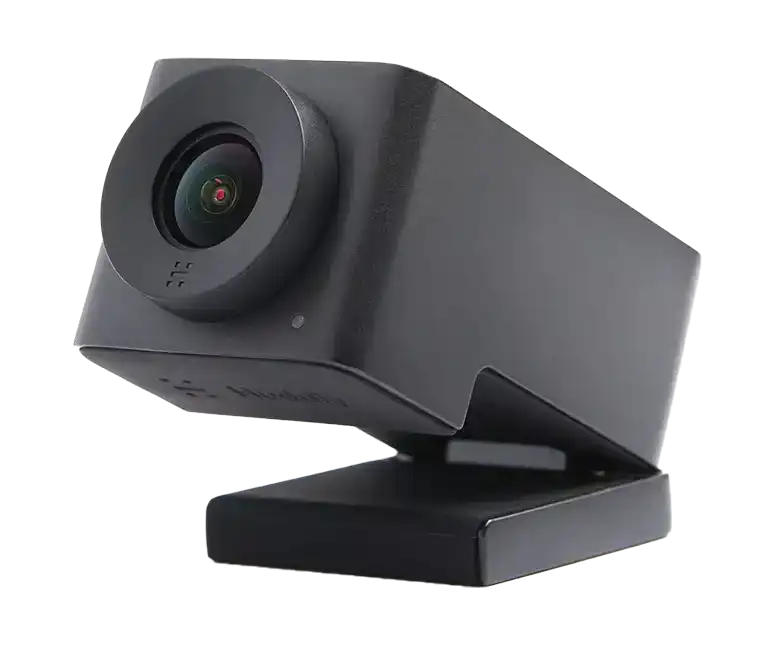

The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts.
Crestron Control System Integration
The UC-MM30-T can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.3
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Visit www.crestron.com/xiocloud for additional information.
Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Visit www.crestron.com/flexcare for additional information.
Dual Control Option
A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.2, 3
Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.
Key Features
- Tabletop video conferencing solution for Microsoft Teams® Rooms environment
- Native Microsoft Teams Rooms touch screen UI provides a consistent, simple user experience with one‑touch meeting joins
- Complete kit contains the Crestron tabletop conference device, a collaboration camera, UC bracket assembly, and PoE injector— just add a display and mount
- Easy to specify and install — no custom design, programming, or software installation required
- Optional integration with Crestron® control systems
- Direct connection option between UC Engine and Crestron Flex tabletop conference device for simple installation and configuration
- Network management and provisioning, system alerts, and the pairing of the Crestron Flex tabletop conference device to the system’s UC Engine through the XiO Cloud® service
- Premium‑level support with Crestron Flex Care (optional)
- Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
- Supports single or dual video displays (not included)
Specifications
| Included Components | |
| UC-2-T-V | Crestron Flex Tabletop Audio Conference System includes:
|
| UC‑BRKT‑200‑S‑T‑ASSY | UC Bracket Assembly for Microsoft Teams Rooms systems, comprised of:
|
| CCS‑CAM‑USB‑F‑400 | Collaboration Camera |
| CBL-4K-DP-HD-6 | DisplayPort™ to HDMI Cable, 6 ft (1.8 m); secondary display |
| CBL-CAT5E-7 | Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m) |
| CBL‑HD‑6 | HDMI Interface Cable, 6 ft (1.8 m); primary display |
| CBL‑HD‑20 | HDMI Interface Cable, 20 ft (6.1 m); content sharing |
| CBL-USB-A-EXT-15 | USB Extension Cable, USB Type A Male-to-Female, 15 ft (4.6 m) |
| CBL-USBC-USBA-6 | USB 3.0 Cable, Right angle USB‑C® to A, 6 ft (1.8 m) |
| DM‑CBL‑ULTRA‑PC‑20 | Ethernet LAN cable, CAT6a, RJ45‑to‑RJ45, blue, 20 ft (6.1 m) |
| UC-CAM-WMK | Wall Mount Kit for Crestron® Cameras |
| Crestron Flex Tabletop Conferencing System | |
| Touch Screen | 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels |
| UI | Microsoft Teams UI |
| Mic Mute Symbol and Light Bar | (4) Capacitive buttons with bi‑color LEDs, toggles between mute and unmute |
| AEC | Automatic gain control, dynamic noise reduction, acoustic echo cancellation, full‑duplex IEEE 1329 Type 1 compliant |
| Speaker | Full range speaker; Amplifier Power: 7 W (rated power); Output Volume: 83 ±3 dBA @1m 1 kHz; Frequency Response: 100 Hz - 20 kHz |
| Microphones | (4) Built-in omnidirectional, digital MEMS microphones with 360° audio pickup; Maximum pickup range: 10 ft (3 m) typical |
| Occupancy Sensor | Approx. 10 ft (3 m) PIR range in front of touch screen |
| Ethernet | 100 Mbps, auto-switching, auto‑negotiating, auto-discovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory® authentication, digest access authentication, password login, XiO Cloud client, Microsoft Intune® client, IEEE 802.3at Type 2 PoE+ compliant |
| USB | USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (cable included) |
| Power | IEEE 802.3af Class 3 and 802.3at Class 4 PoE+ powered device; PoE+ injector included |
| Dimensions | Height: 3.02 in. (77 mm) Width: 7.17 in. (182 mm) Depth: 9.61 in. (244 mm) |
| Weight | 2.1 lb (0.96 kg) |
| Camera | |
| Image Sensor | 12 Megapixel 1/2.3 CMOS sensor |
| Lens | High precision, ultra wide angle, six element aspherical glass lens |
| Field of View | 150° diagonal, 120° horizontal, 90° vertical |
| Aperture | f/2.8 |
| Autozoom | Genius Framing automatic lossless digital zoom intelligently frames around people in the room |
| Connectivity | Plug‑and‑play USB 3.1 |
| Resolution/FPS | HD 1080p @ 30 fps |
| Dimensions | Height: 1.40 in. (36 mm) Width: 1.60 in. (41 mm) Depth: 2.82 in. (72 mm) |
| Weight | 4.2 oz (120 g) |
| UC Bracket Assembly | |
| UC Engine | Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity |
| UC Client | Microsoft Teams Rooms |
| Management Client | XiO Cloud Service |
| Content Ingest | HDMI input via HDMI to USB 3.0 converter (model HD‑CONV‑USB‑200) |
| Display Output | Single or dual display support1 |
| Display Output Resolution | 1080p |
| Power | 100‑240VAC, 50/60 Hz adapter (included) |
| Construction | Metal mounting bracket, black, preassembled with UC Engine and HD‑CONV‑USB‑200 |
| Mounting | Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate |
| Dimensions | Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Maximum Depth: 1.87 in. (48 mm) |
| Maximum Weight | 7.7 lb (3.5 kg) |
